ASUS PRIME H410M-E

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: Asus
Dòng sản phẩm: Mainboard

Hãng sản xuất: ASUS

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

1,800,000₫ 1,550,000₫ Tiết kiệm 14%
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

ASUS PRIME H410M-E

Loại sản phẩmMainboard
CPU hỗ trợIntel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® H410

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem


* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Hình ảnh

Integrated Graphics Processor
1  x D-Sub


*Graphics specifications may vary between CPU types.

Khe cắm mở rộng

Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)


Intel® H410 Chipset
1 x PCIe 3.0 x1

Ổ cứng hỗ trợTotal supports 4x SATA 6Gb/s ports
Intel® H410 Chipset :
4 x SATA 6Gb/s port(s)
LAN

Realtek® RTL8111H

Âm Thanh

Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback


Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers


* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB

Rear USB Port ( Total 6  )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)


Front USB Port ( Total 4  )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Phần mềm độc quyềnASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
PC Cleaner
- EZ update
AI Charger
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Tính năng đặc biệtASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design

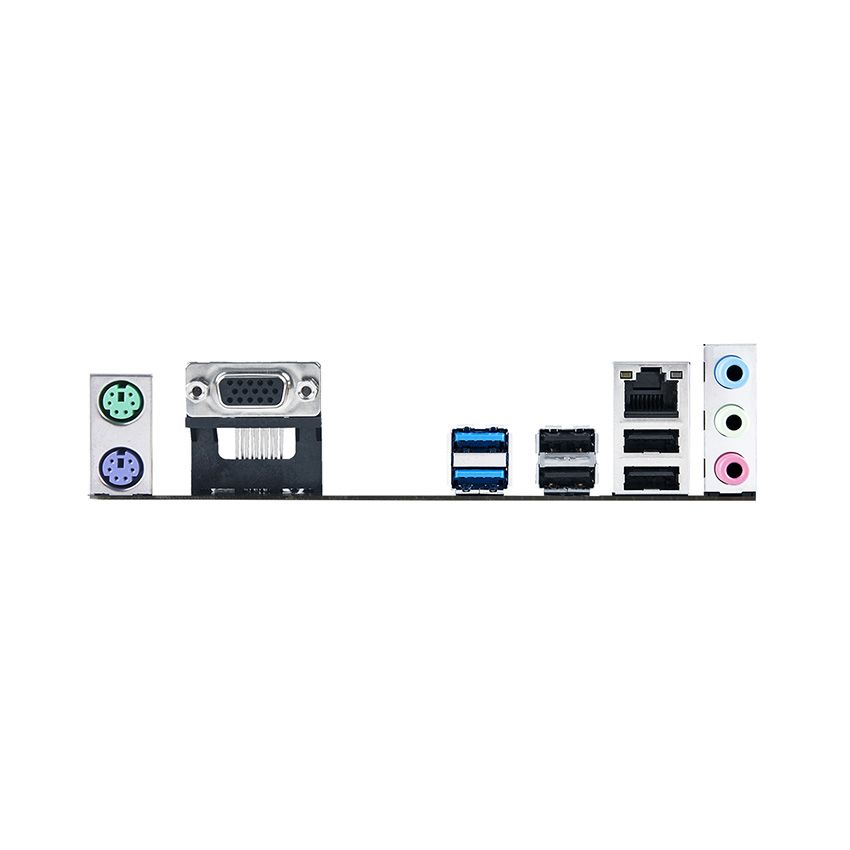

Cổng kết nối (I/O Phía sau)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s)
Cổng kết nối (I/O bên trong)1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Phụ kiệnI/O Shield
2 x SATA 6Gb/s cable(s)
User manual
BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lýWOL by PME, PXE
Kích cỡmATX Form Factor
8.4  inch x 7.2  inch ( 21.3  cm x 18.3  cm )
