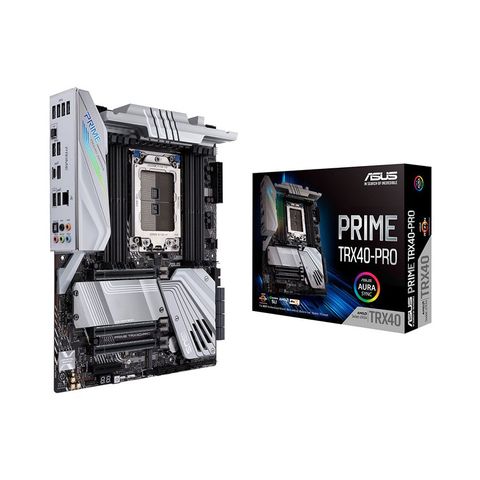

ASUS PRIME TRX40 - PRO

Tình trạng: Liên hệ

Mã sản phẩm: Đang cập nhật

Thương hiệu: Asus

Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

~~12,499,000₫~~ 10,500,000₫ Tiết kiệm 16%

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Xem thêm

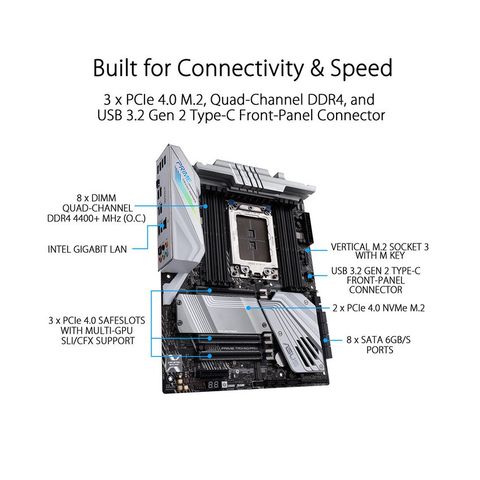

CPU	AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list
Chipset	Build in AMD TRX40
Bộ nhớ	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI® Technology
	Supports NVIDIA® 2-Way SLI® Technology
	Supports AMD Quad-GPU CrossFireX™ Technology
	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	3 x PCIe 4.0 x16 (x16/x16/x16) *
	AMD TRX40 chipset
	1 x PCIe 4.0 (x4 mode)
Storage	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
	2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
	AMD TRX40 chipset :
	1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	8 x SATA 6Gb/s port(s),
	Support Raid 0, 1, 10
LAN	Intel® I211-AT
	ASUS Turbo LAN Utility
	ASUS LAN Guard
Audio	Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)
	Audio Feature :
	- DTS X®:Ultra
	- Optical S/PDIF out port(s) at back panel
	Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
	- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
	#NAME?
	- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports	AMD Ryzen™ Threadripper™ Processors :
	4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
	AMD TRX40 chipset :
	1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)
	AMD TRX40 chipset :
	6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
	AMD TRX40 chipset :
	2 x USB 2.0 port(s) (2 at mid-board)
	ASMedia® USB 3.2 Gen 1 controller :
	4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)
	GL852G USB Hub :
	2 x USB 2.0 port(s) (2 at mid-board)
Special Features	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
	5Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
	ASUS SafeSlot - Protect your graphics card Investment
	AURA :
	- Aura RGB Strip Headers
	- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
	- Addressable Gen 2 Header
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	- Onboard Button : Power
	- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
	- Turbo LAN
	- Crystal Sound 3
	- Armoury Crate
	- Pre-mounted I/O Shield
	ASUS Quiet Thermal Solution :
	- Stylish Design Heat-pipe solution
	- Stylish Fanless Design with M.2 Heat-sink solution
	- ASUS Fan Xpert 4
	ASUS EZ DIY :
	- ASUS EZ Flash 3
	- ASUS USB BIOS FlashBack™
	- ASUS UEFI BIOS EZ Mode
	- Multi-language BIOS
	ASUS Q-Design :
	- ASUS Q-Code
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	- ASUS Q-Connector

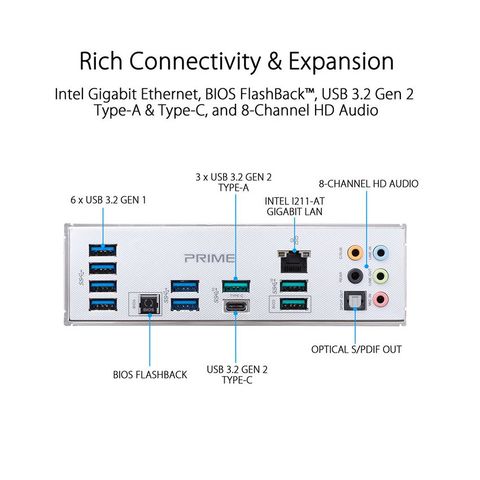

Back I/O Ports	1 x LAN (RJ45) port(s)
	4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
	6 x USB 3.2 Gen 1 (blue)
	1 x Optical S/PDIF out
	5 x Audio jack(s)
	1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports	1 x Q_Code
	2 x Aura RGB Strip Header(s)
	2 x Addressable Gen 2 header(s)
	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 with E key for Wi-Fi module
	8 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x CPU OPT Fan connector(s) (1 x 4 -pin)
	3 x Chassis Fan connector(s) (3 x 4 -pin)
	1 x AIO_PUMP connector (1 x 4 -pin)
	1 x W_PUMP+ connector (1 x 4 -pin)
	1 x 24-pin EATX Power connector(s)
	2 x 8-pin ATX 12V Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	1 x System panel(s) (Q-Connector) x With flexkey function
	1 x Thermal sensor connector(s)
	1 x Power-on button(s)
	1 x Clear CMOS jumper(s)
	1 x Node Connector(s)
	1 x USB 3.2 Gen 2 front panel connector
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability	WfM 2.0, WOL by PME, PXE
Hệ điều hành	Support for Windows 10 64-bit
Kích Thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
