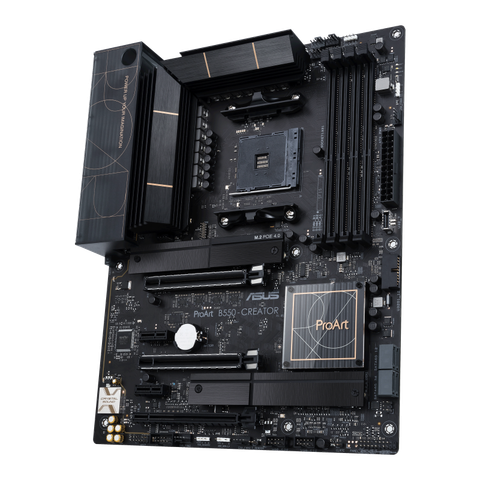

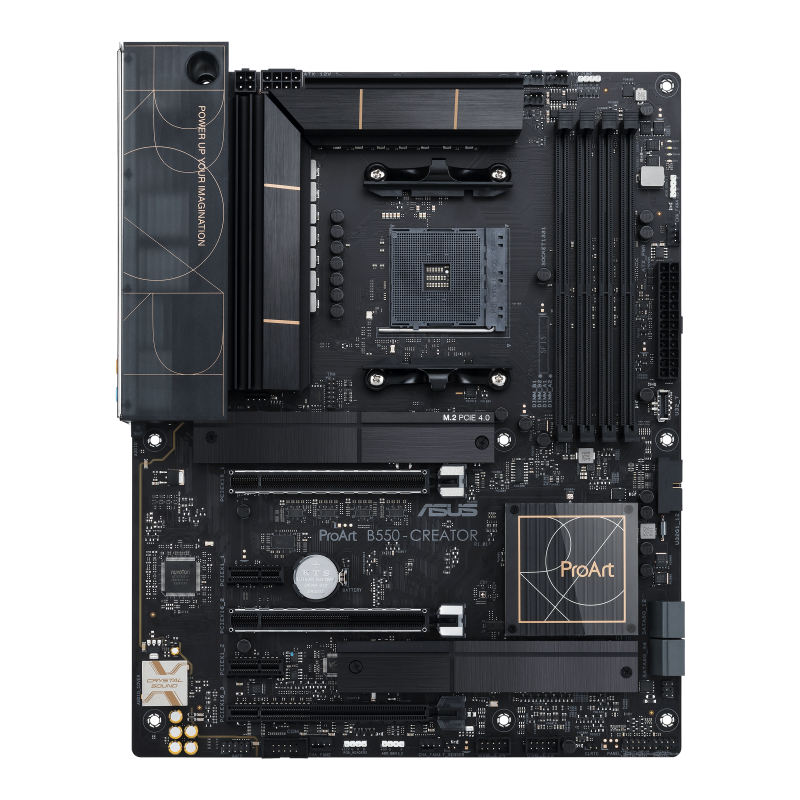

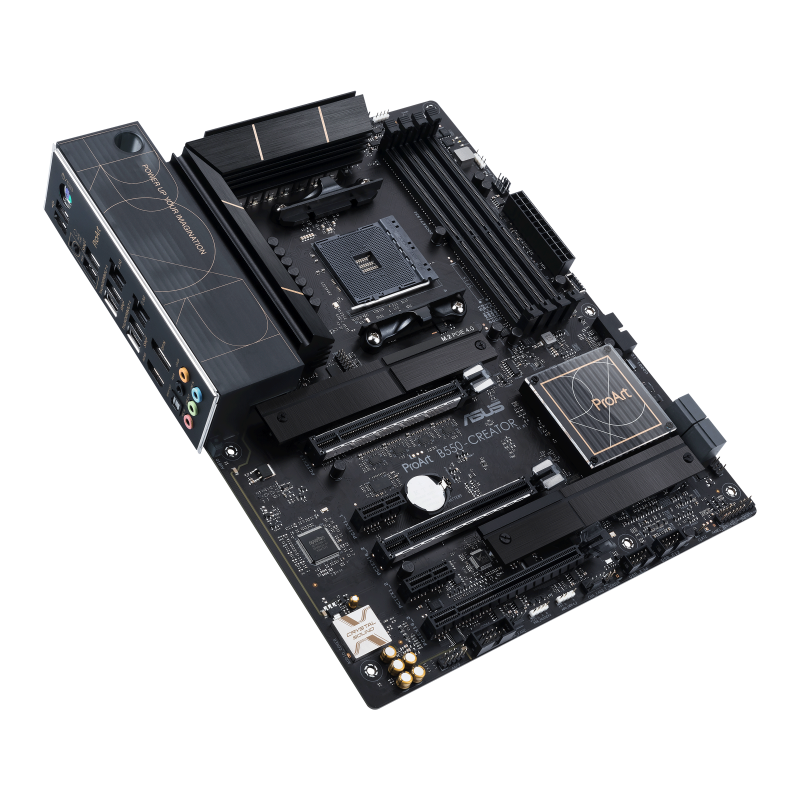

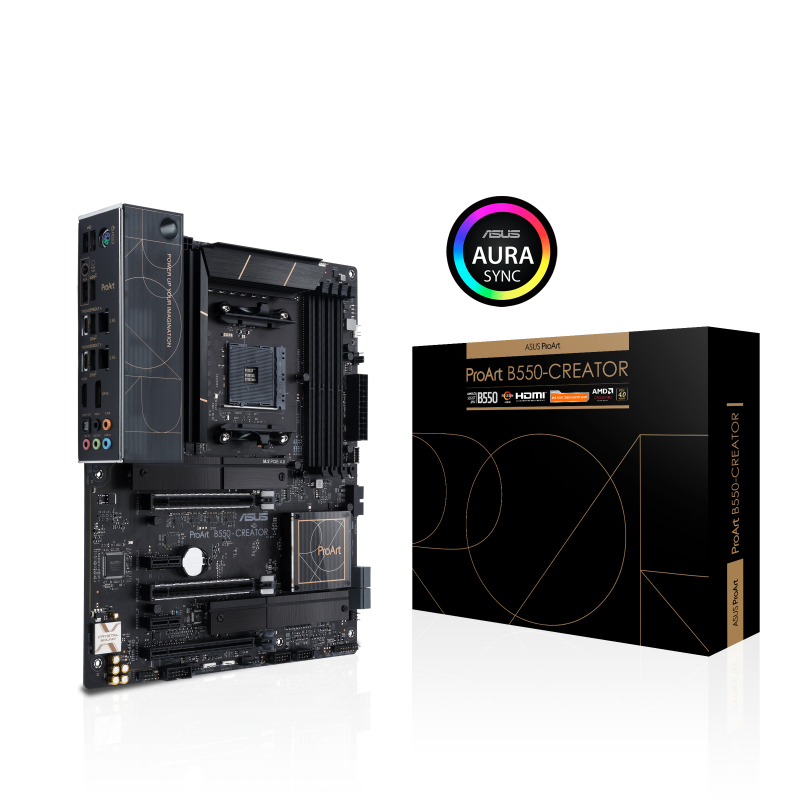

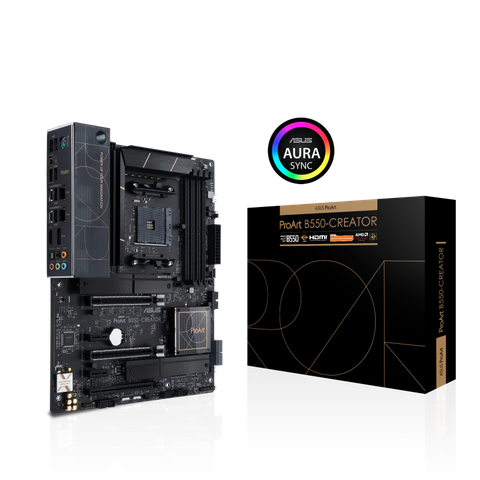

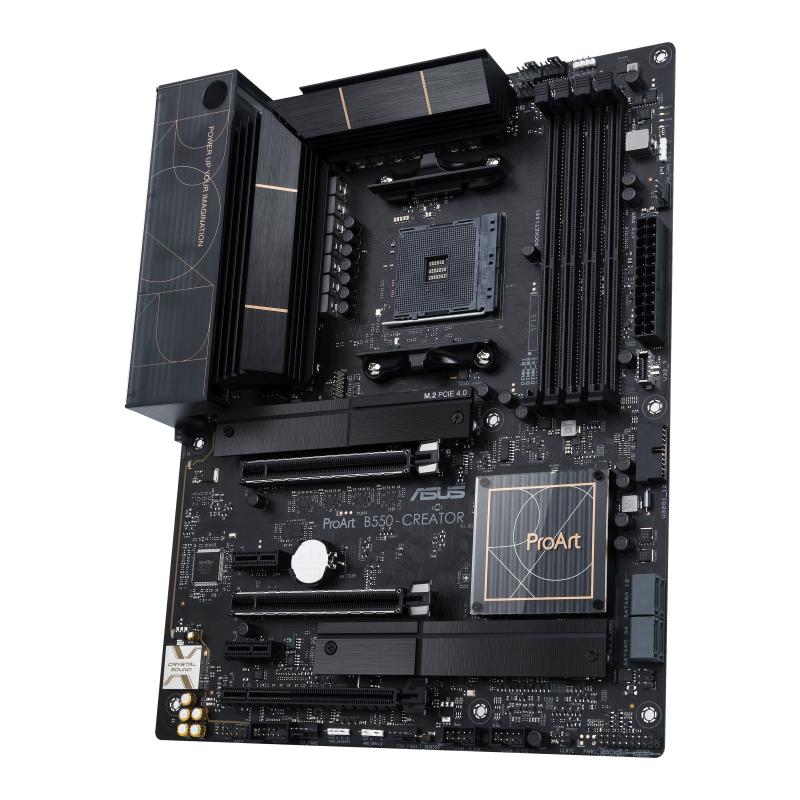

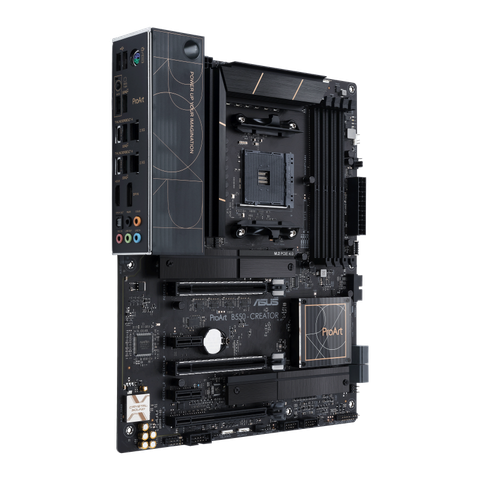

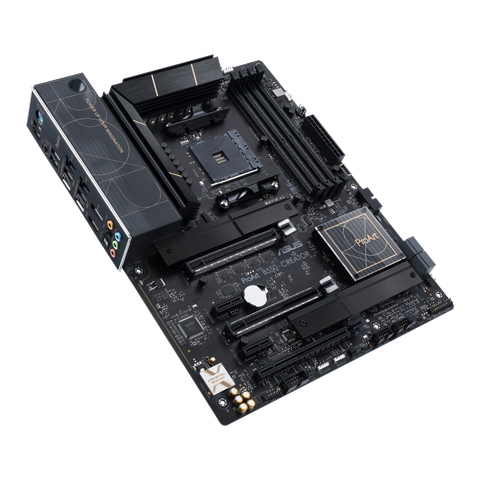

ASUS ProArt B550 - CREATOR

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: Asus
Dòng sản phẩm: Mainboard

Hãng sản xuất: ASUS

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

7,710,000₫ 6,490,000₫ Tiết kiệm 16%
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

CPU

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
* Refer to www.asus.com for CPU support list.

Chipset

B550

Memory

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

DDR4

4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *"

AMD RyzenTM 4000 G-Series Processors

DDR4

5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory"

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x HDMI™ 2.1 (4K@60Hz)
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *

* Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types.

** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manul.

Expansion Slots

2 x PCIe 4.0/3.0 x16 (x16, x8/x8)

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8)*

AMD RyzenTM 4000 G-Series Processor

2 x PCIe 3.0 x16 (x16 or dual x8)*

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

2 x PCIe 3.0 x1 slots***

* Support PCIe bandwidth bifurcation for RAID on CPU function.

** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output

*** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will

Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD RyzenTM 4000 G-Series Processor :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Supports RAID 0, 1, 10

Ethernet

2 x Intel® I225-V 2.5Gb Ethernet

USB

Rear USB:Total 8 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*"

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

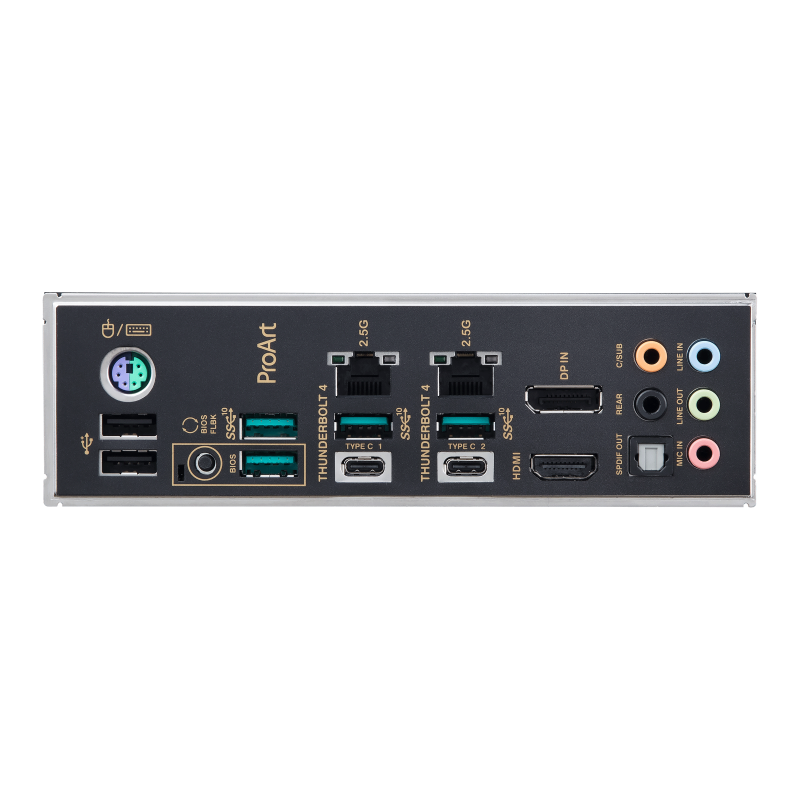

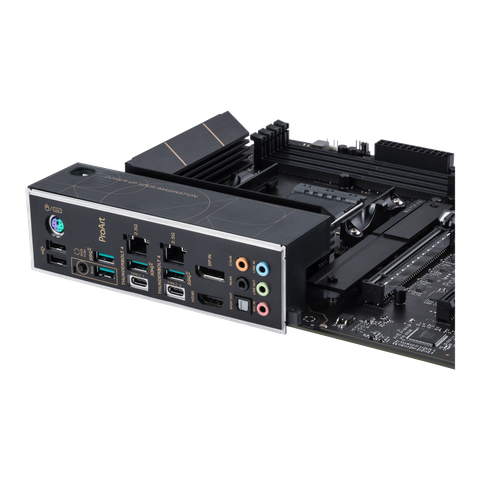

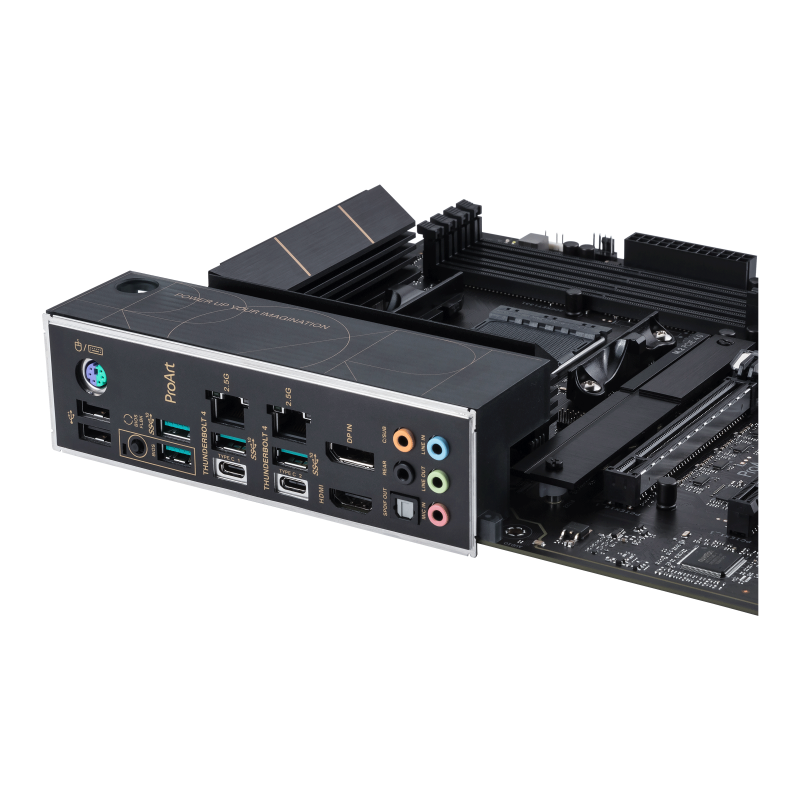

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI™ port

2 x Intel® I225-V 2.5Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with Dr. MOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Latch

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Box Headers

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization by Dual Intelligent Processors 5

TPU

EPU

Digi+ VRM

Fan Xpert 4

Turbo app

- EZ update

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

ProArt Creator Hub

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

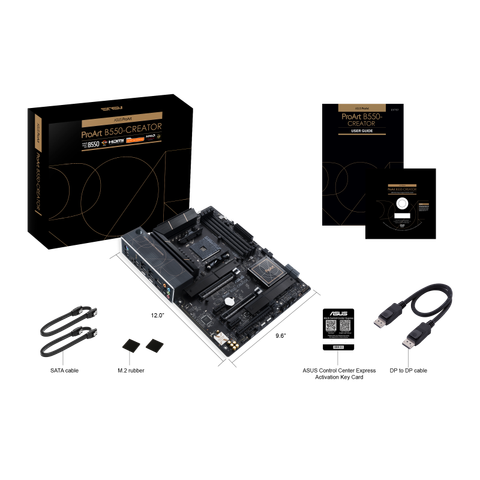

Accessories

Cables

2 x SATA 6Gb/s cables

1 x DP to DP cable for Thunderbolt™ 4

Miscellaneous

1 x M.2 Rubber Package(s)

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Operating System

Windows 10 64bit

Form Factor

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
