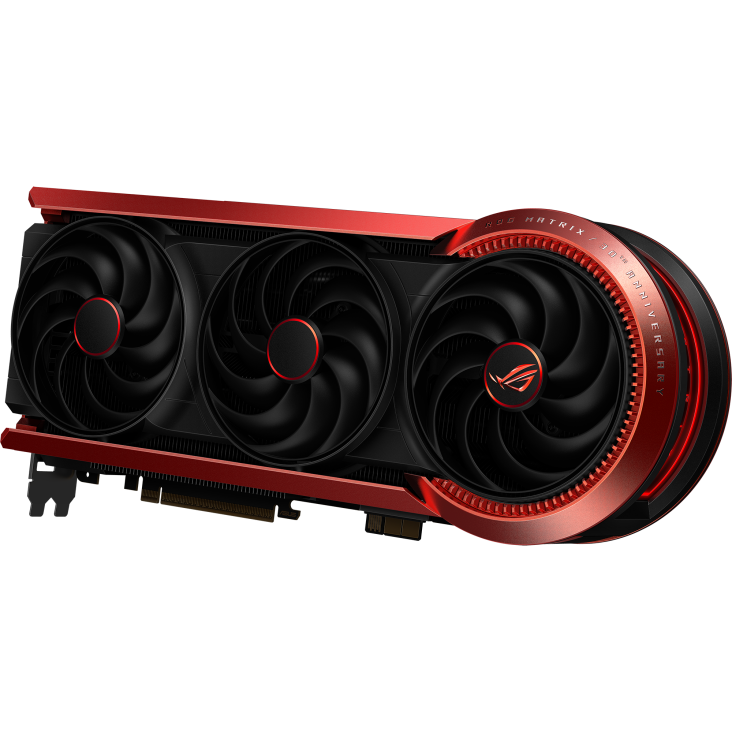

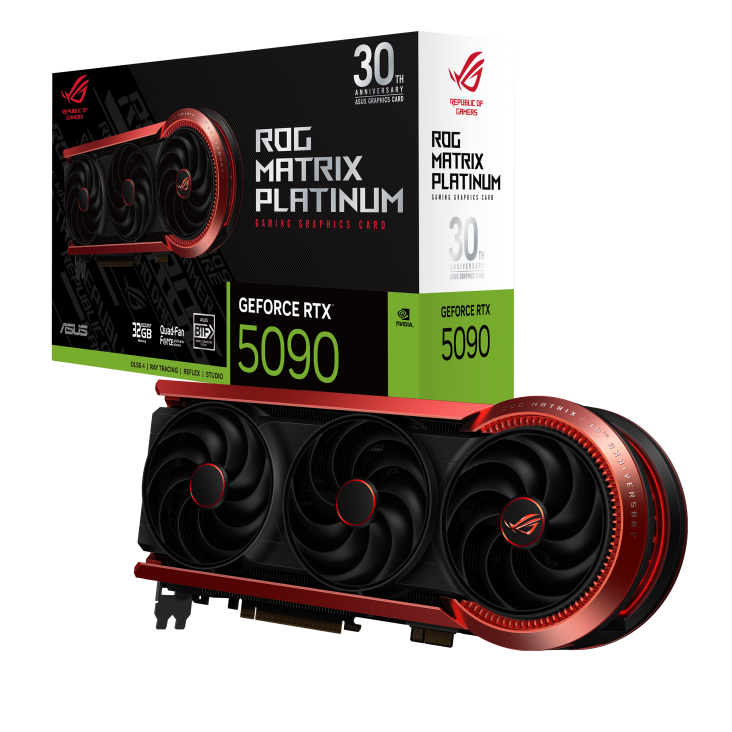

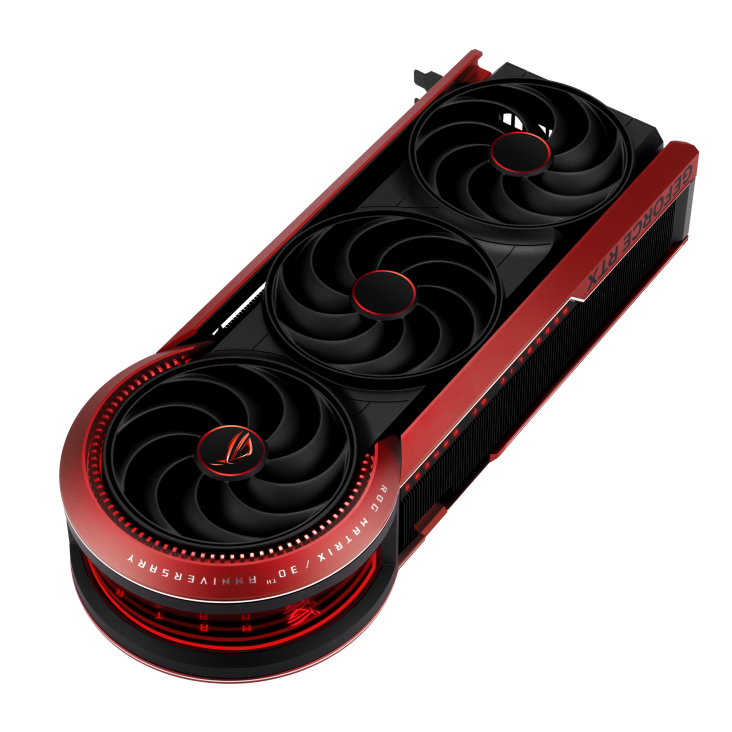

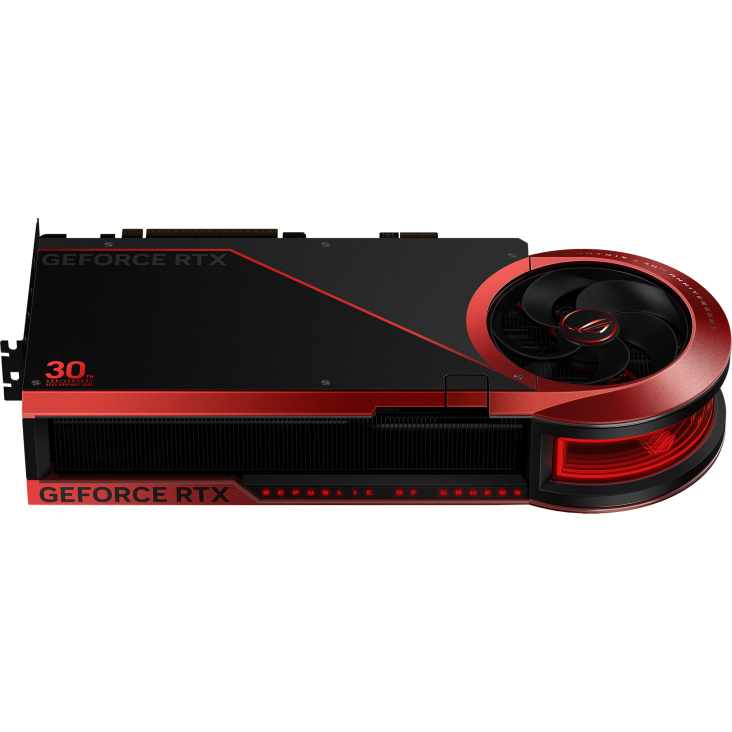

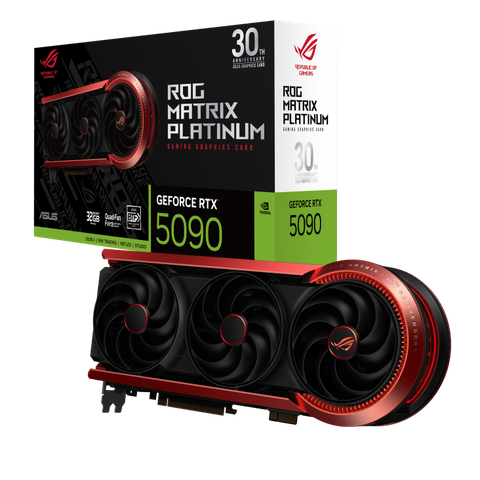

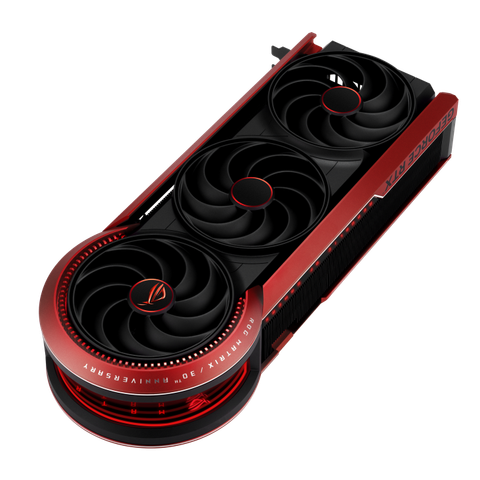

ASUS ROG MATRIX PLATINUM GEFORCE RTX™ 5090 - 30TH ANNIVERSARY EDITION

Graphic Engine

NVIDIA^® GeForce RTX™ 5090

AI Performance

3352 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL^®4.6

Video Memory

32GB GDDR7

Engine Clock

OC mode: 2760 MHz
Default mode: 2730 MHz(Boost clock)

CUDA Core

21760

Memory Speed

28 Gbps

Memory Interface

512-bit

Resolution

Digital Max Resolution 7680 x 4320

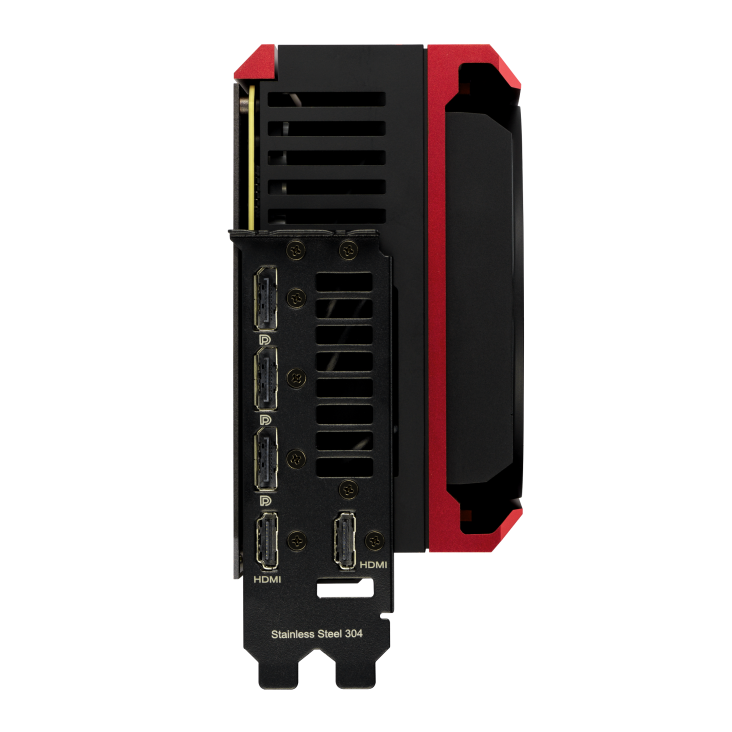

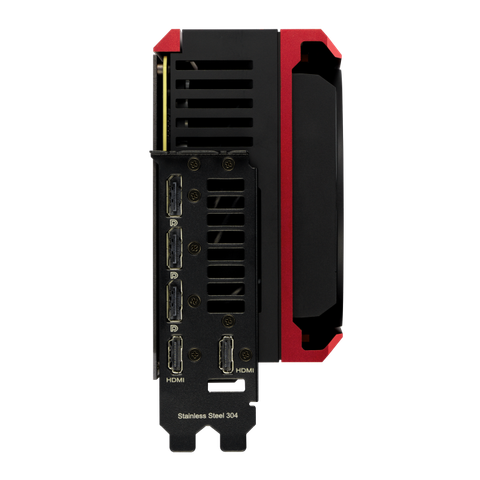

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 4)
1 x BTF Adapter
1 x ASUS Graphics Cards 30th Anniversary Edition Playing Cards

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

370.3 x 150.5 x 77.3 mm
14.58 x 5.92 x 3.04 inches

Recommended PSU

1200W+

Power Connectors

1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger

Slot

3.9 slot

AURA SYNC

ARGB

Hidden-connector (BTF)

With Graphics card high-power gold finger

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
