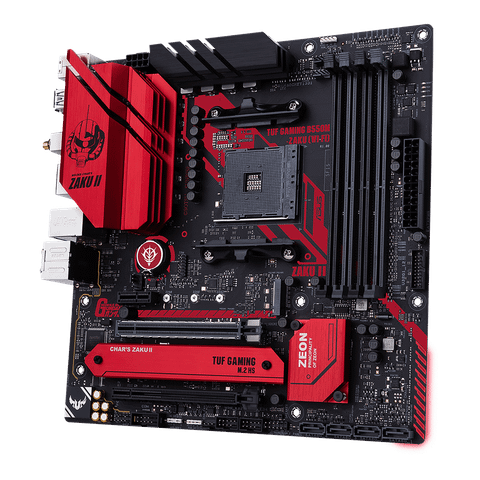

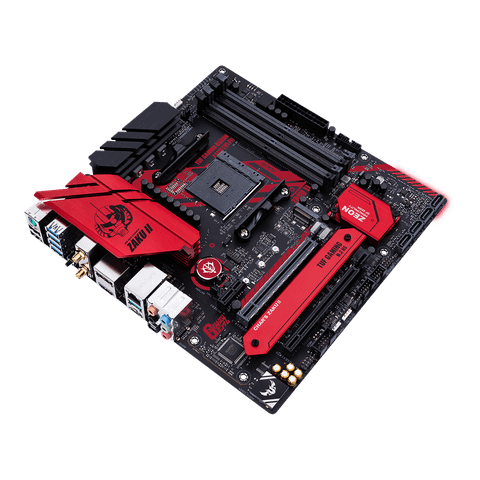

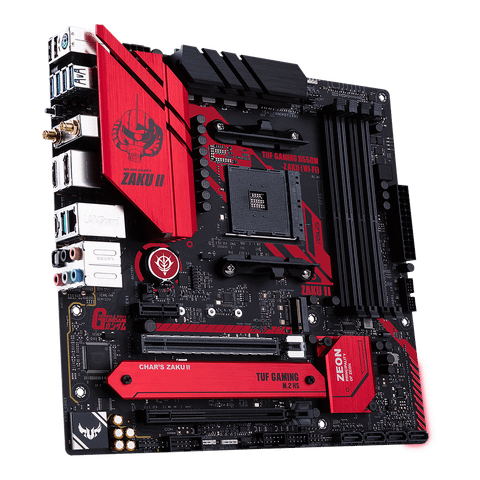

ASUS TUF GAMING B550M-ZAKU ( WI-FI )

ASUS

m-ATX

AMD B550

4

4600(O.C) - 2133 MHz

128GB

Dual Channel

1 x PCIe 4.0 x16 (x16 mode)

1 x PCIe 3.0 x1 *1

4 x SATA 6Gb/s port(s),

2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

N/A

Raid 0, 1, 10

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

7.1 Surround

Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard

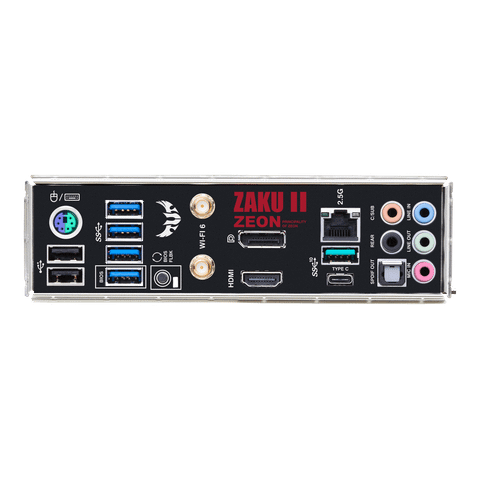

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

2 x USB 2.0

4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

1 x ASUS Wi-Fi Module

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

1 x Speaker connector

N/A

24.4 cm x 24.4 cm

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors
