| Model Number | TD500V2-WGNN-SCL |
|
|
| Materials - Exterior | Steel, Mesh, Plastic |
|

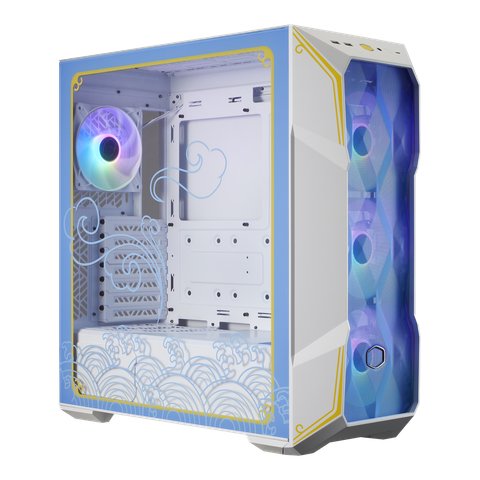

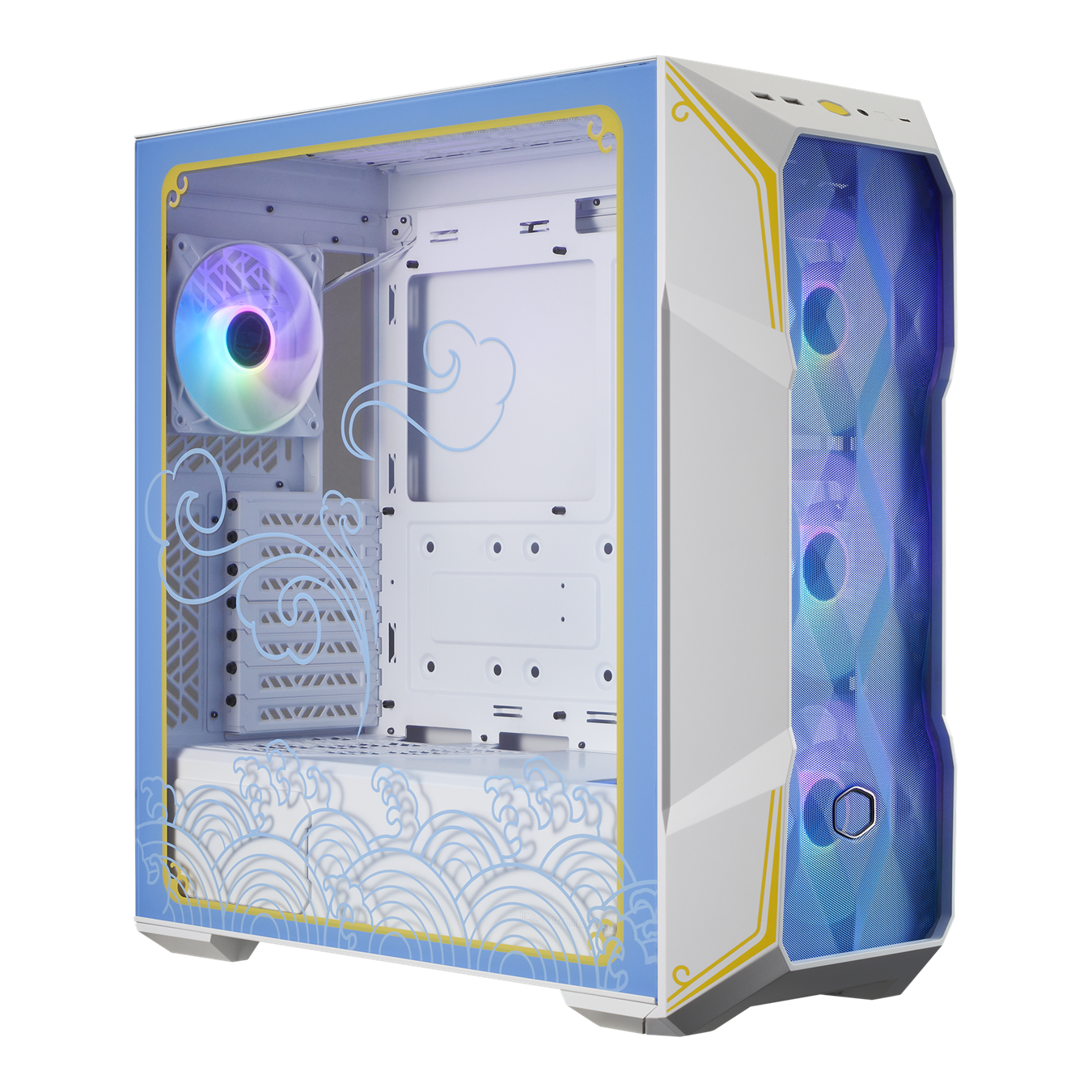

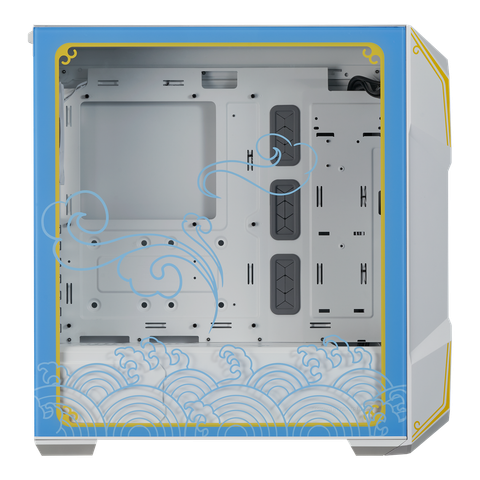

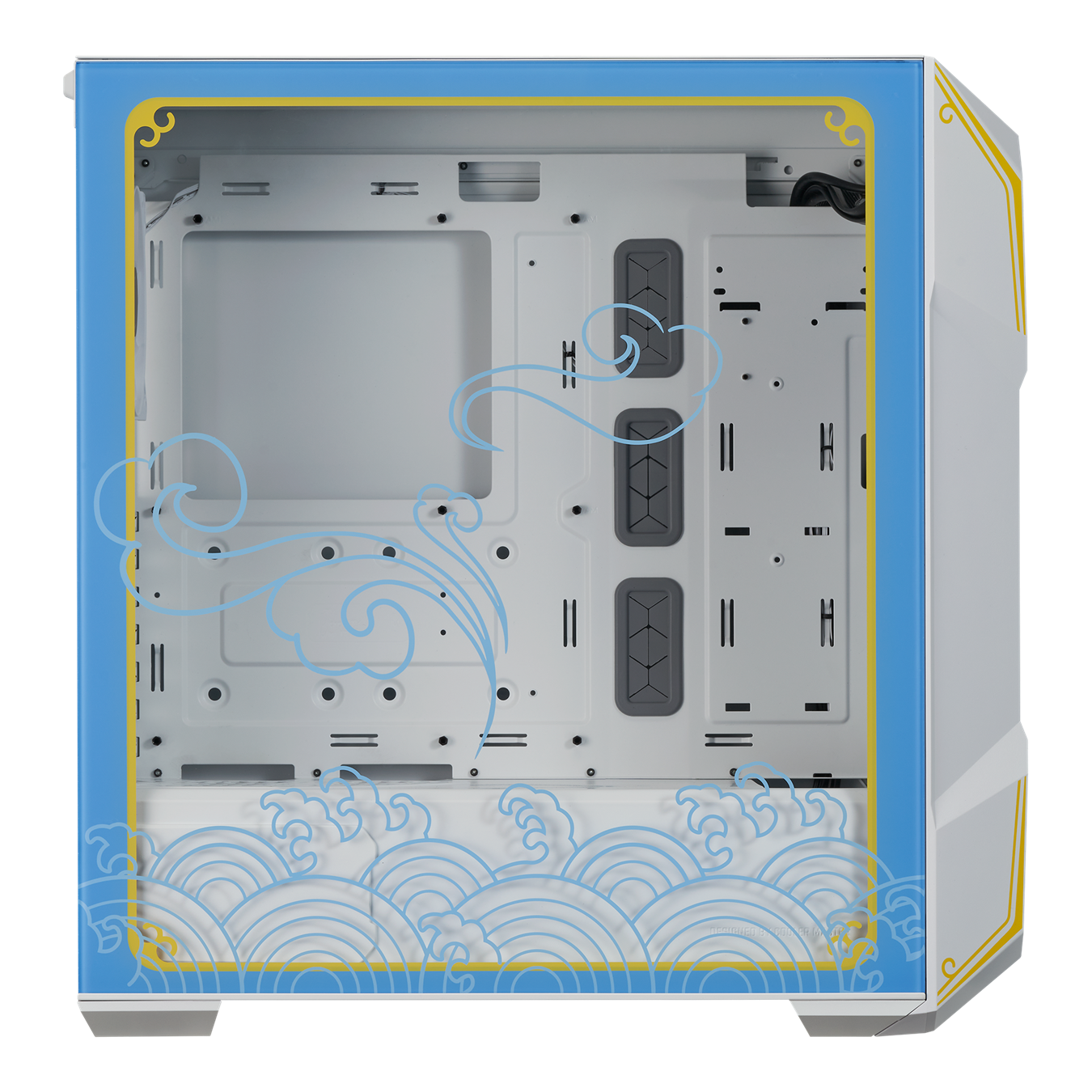

| Materials - Left Side Panel | Tempered Glass |
|
| Dimensions (L x W x H) | 499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions) |
|
|
| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
|
|
|
|
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
|
| I/O Panel - Audio In / Out | 1x Audio Jack |
|
| I/O Panel - Other | 1x ARGB Fan Hub |
|

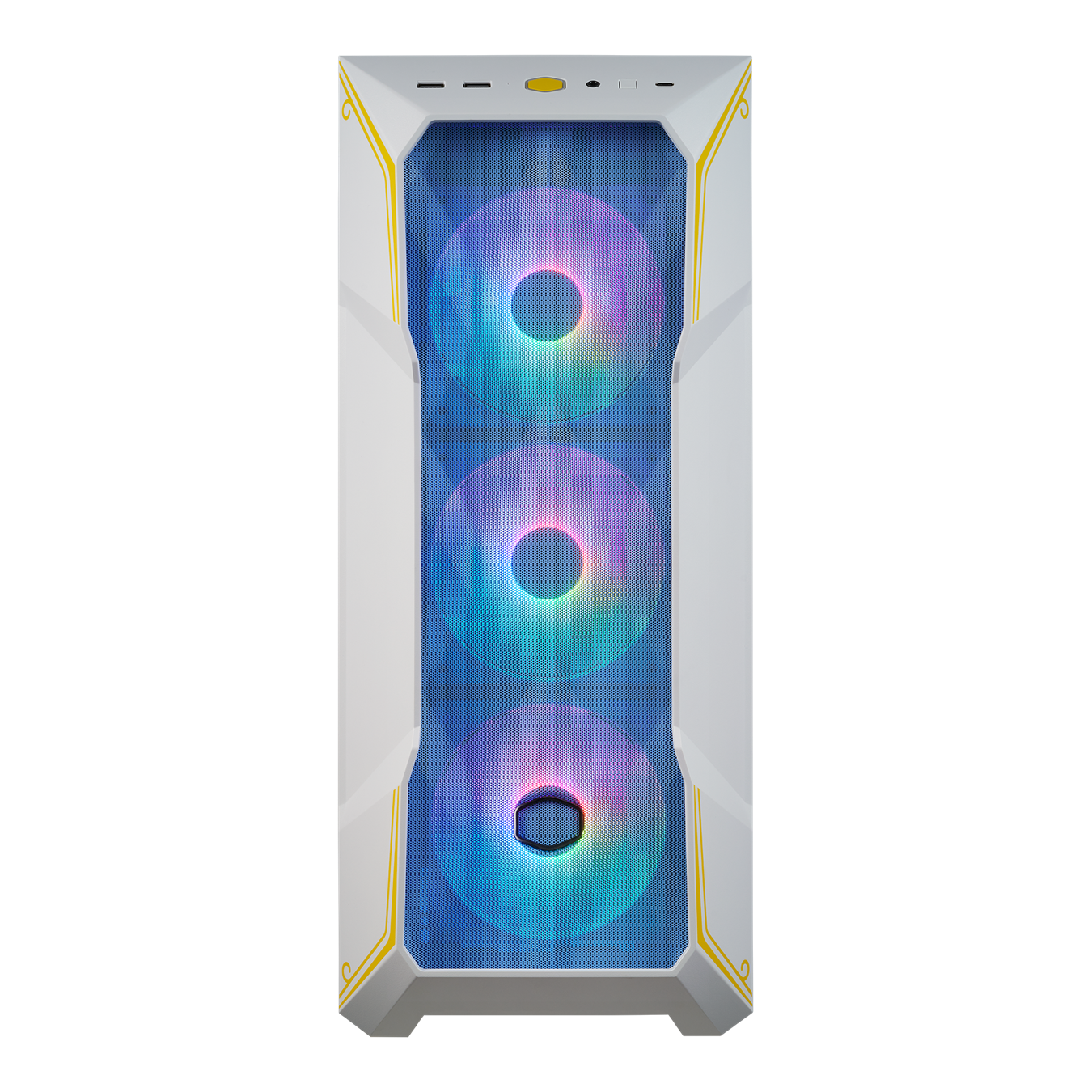

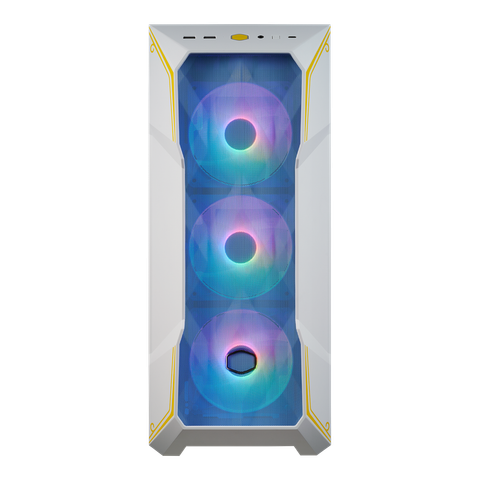

| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
|

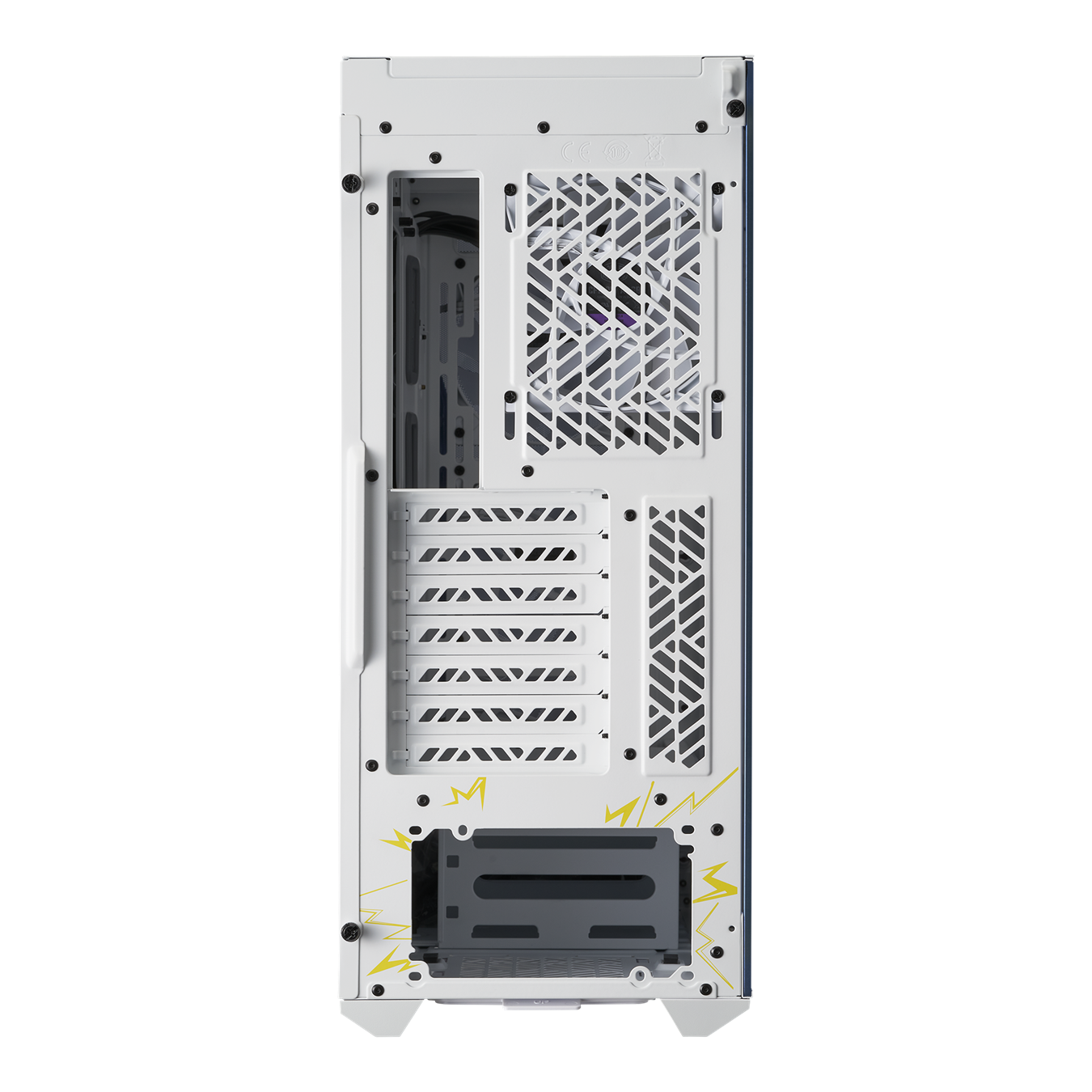

| Pre-installed Fans - Rear | 1x 120mm CF120 ARGB |
|
| Fan Support - Top | 3x 120mm, 2x 140mm |
|
| Fan Support - Front | 3x 120mm, 2x 140mm |
|
| Fan Support - Rear | 1x 120mm |
|
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support - Rear | 120mm |
|
| Clearance - CPU Cooler | 165mm/6.49" |
|
| Clearance - PSU | 200mm, (Recommended up to 170mm) |
|
| Clearance - GFX | 410mm / 16.14" |
|
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
|
| Dust Filters | Front, Top, Bottom |
|
| Power Supply Support | Bottom Mount, ATX |
|
|
|
|
