Case máy tính H7 Elite RGB

Tech Specs

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

• Height:505mm (With Feet)

• Width:230mm

• Depth:480mm

• Weight:11.36 kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 185mm

• Max GPU Clearance:Up to 400mm

• Front Radiator Clearance:60mm

• Top Radiator Clearance:30mm

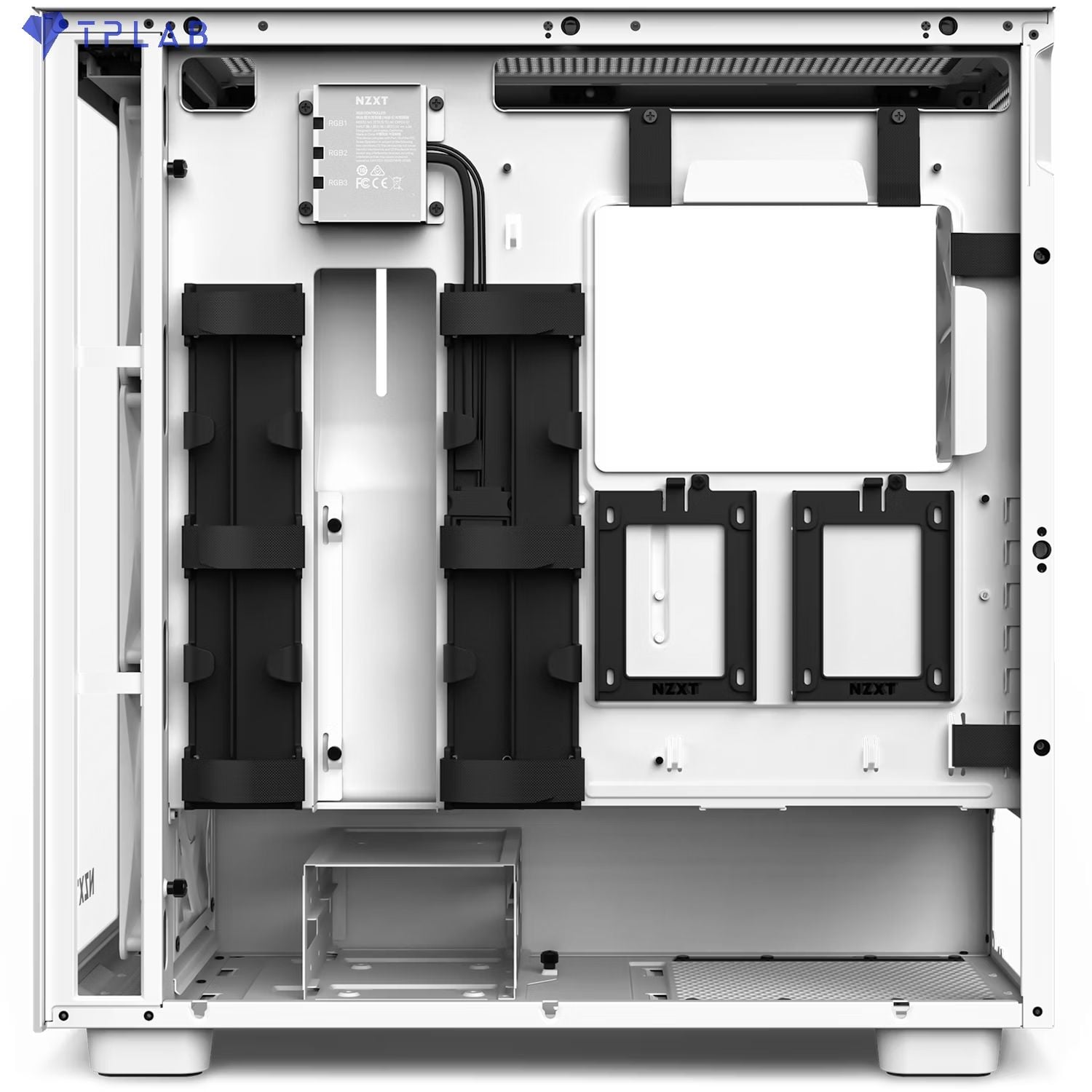

• Cable Management:18-22mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

RGB CONTROLLER

• NZXT RGB Connector:3 (Support up to 120 LEDs)

EXPANSION SLOTS

• Standard:7

• Vertical:0

DRIVE BAYS

• 2.5":4+2

• 3.5":2

FAN SUPPORT

• Front:3 x 120mm / 3 x 140mm

• Top:3 x 120mm / 2 x 140mm

• Rear:1 x 120mm / 1 x 140mm

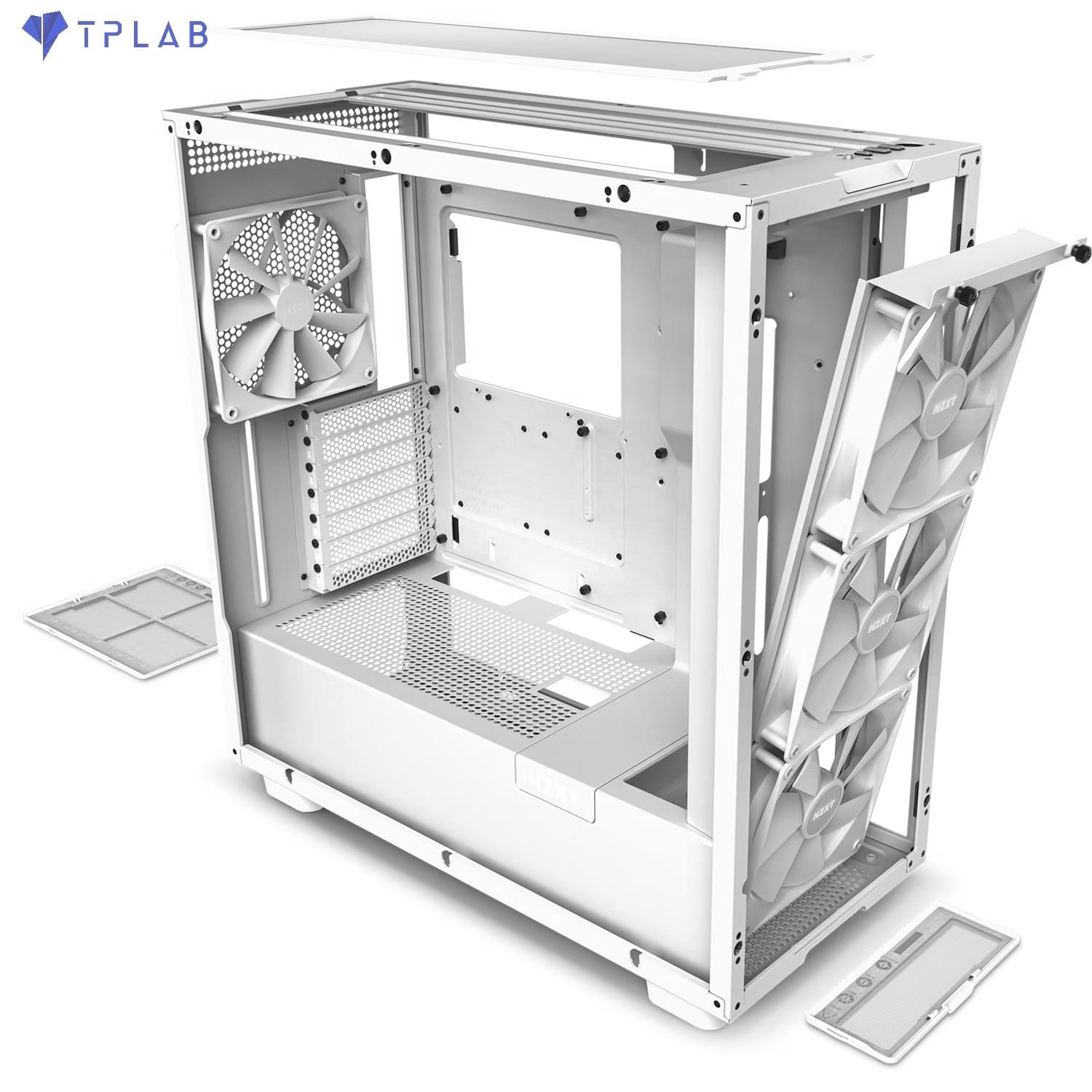

• Filters:All Air Intakes

RADIATOR SUPPORT

• Front:Up to 360mm with Push/Pull

• Top:Up to 360mm

• Rear:Up to 140mm

FAN SPECS

• Model:F140Q (Case Version)

• Speed:1200 ± 240RPM

• Airflow:99.56 CFM

• Static Pressure:1.14 mm-H2O

• Noise:24.18 dBA

• Fan Connector:3-pin

FAN SPECS

• Model:F140 RGB Core Fan

• Speed:500-1,500 ± 150 RPM

• Airflow:90.79 CFM

• Static Pressure:3.22 mm H2O

• Noise:34.48 dBA

• Fan Connector:4-pin PWM

GENERAL

• Warranty:2 Years

• Model Number:CM-H71EW-02 (White) / CM-H71EB-02 (Black)

• UPC:810074843607 (White) / 810074843591 (Black)

• EAN:5056547203522 (White) / 5056547203515 (Black)
