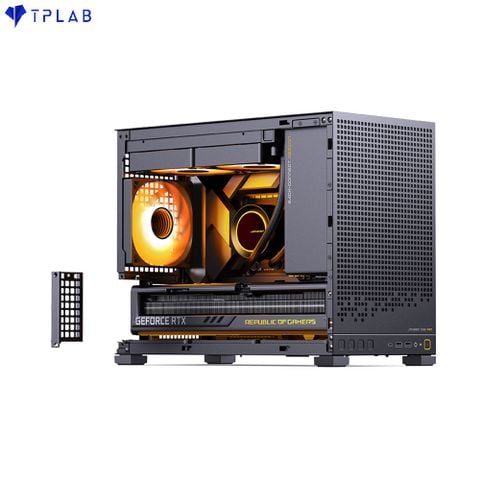

Case máy tính Jonsbo D32 Pro ( Mini mATX)

D32 PRO

384mm x 207mm x 302mm (depth/width/height)

396mm x 207mm x 314mm (depth/width/height)

Chất liệu

SPCC Steel(0.7mm+0.8mm)

Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be

switched to B mode)

2.5":up to 4, depends on other hardware configurations

3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations

USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

FAN

Top: 2 x 120mm / 2 x 140mm

 Rear: 1 x 120mm

Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations

Radiator support

Top，up to 240mm

In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)

 In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU)

Up to 365mm

Weight

N.W. 4.6kg / G.W. 5.8kg
