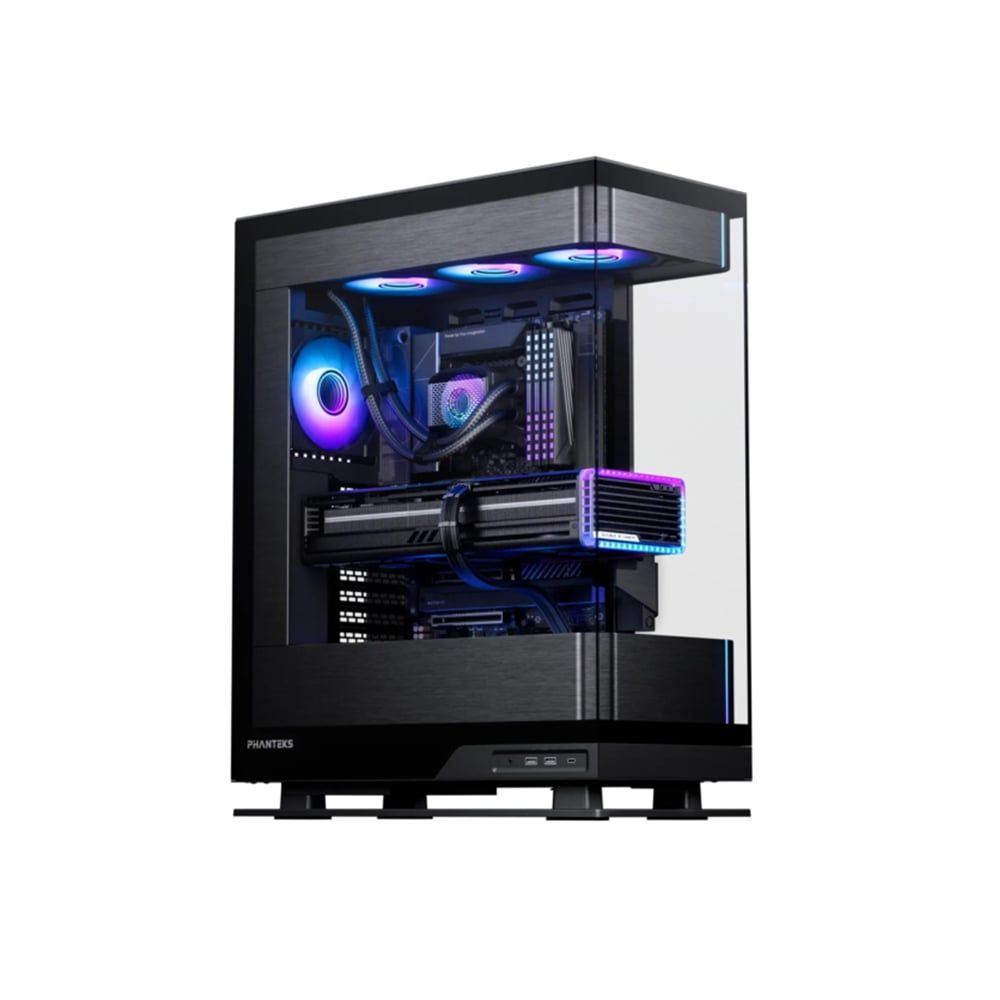

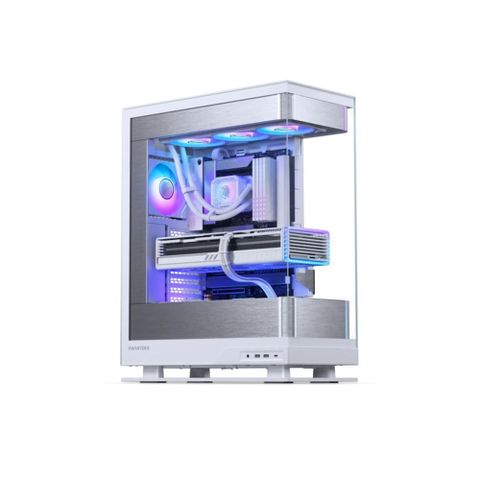

Case Phanteks Evolv Series X2 ATX TG Window DRGB

General

Case Dimensions: 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in

From Factor: Mid-Tower

Mainboard Support: E-ATX | ATX | Micro-ATX | Mini-ITX (Up to 280 mm wide)

Materials: Steel chassis | Aluminium panels | Tempered glass window | ABS plastic

Color: Brushed black aluminium

Expansion Slots: 8

Vertical GPU Support: Yes

Internal 2.5″ Positions: 5 (+ 1x 3.5″ HDD)

Internal 3.5″ Positions: 2 (+ 3x 2.5″ SSD)

Front I/O: 2x USB 3.0, 1x USB-C 3.2 Gen2x2, 1x Microphone | Headphone combo, Power button, Reset button

Fans

Total Fans7 | –

Top3 | –

Front– | –

Side: – | –

Rear: 1 | –

Bottom: 3 | –

Radiator

Top: Max. 360 | –

Front: – | –

Rear: – | –

Bottom: – | –

Clearance

CPU Cooler: 170 mm | 6.69 in

GPU: 380 mm | 14.96 in

GPU: 170 mm | 6.69 in

Power Supply: 250 mm | 9.84 in

Top 360 Radiator: 415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in

Extra

Net Weight: 14.2 kg | 31.3 lbs

Gross Weight: 16.5 kg | 36.4 lbs
