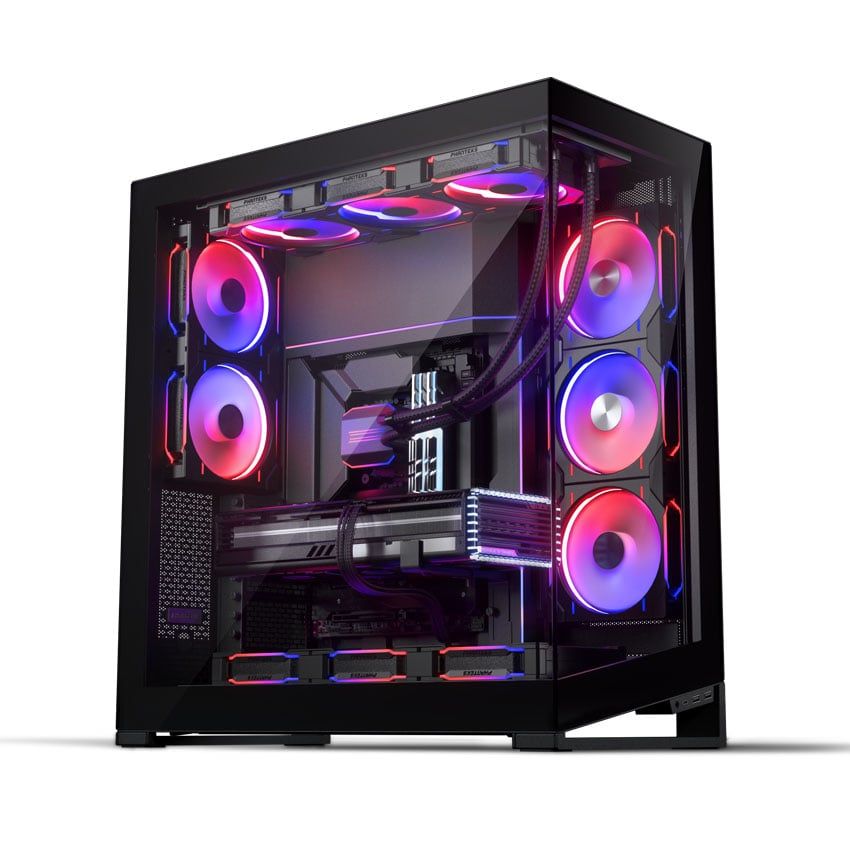

Case Phanteks NV Series NV9 MKII TG DRGB

GENERAL

Case Dimensions

575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in

Form Factor

Full Tower

Mainboard Support

E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass

Color

Matte White

PCI Slots

8

Vertical GPU Support

3 slots

Internal 2.5″ Bay

6

Internal 3.5″ Bay

3 (+ 2x 2.5″ SSD)

Front I/O

1x USB 3.2 USB-C Gen2

2x USB 3.0

Microphone | Headphone Combo

Power Button

D-RGB Mode Button

D-RGB Color Button

D-RGB Speed Button

D-RGB Channel Button

FANS (120 | 140)

Total Fans

12x | 11x

Top

3x | 3x

Front

-

Side

4x | 3x

Rear

2x | 2x

Bottom

3x | 3x

RADIATOR (120 | 140)

Top

Max. 360 | 420

Front

-

Side

Max. 480 | 420

Rear

Max. 240 | 280

Bottom

Max. 360 | 420

CLEARANCE

CPU Cooler

205 mm | 8.07 in

GPU (Length X Width)

490 x 205 mm | 19.29 x 8.07 in

Power Supply (Length)

210 mm | 8.26 in

Top Radiator (L x W)

515 x 154 mm | 20.27 x 6.06 in

Side Radiator (L x W)

525 x 154 mm | 20.66 x 6.06 in

Rear Radiator (L x W)

325 x 154 mm | 12.79 x 6.06 in

EXTRA

Net Weight

19.52 kg | 43.03 lbs

Gross Weight

23.00 kg | 50.70 lbs

Screws

34x Mainboard | SSD screws

4x Power supply screws

4x Thumb screws

9x HDD screws

1x Motherboard stand-off

1x Stand-off removal tool

1x Extra R-side panel screw
