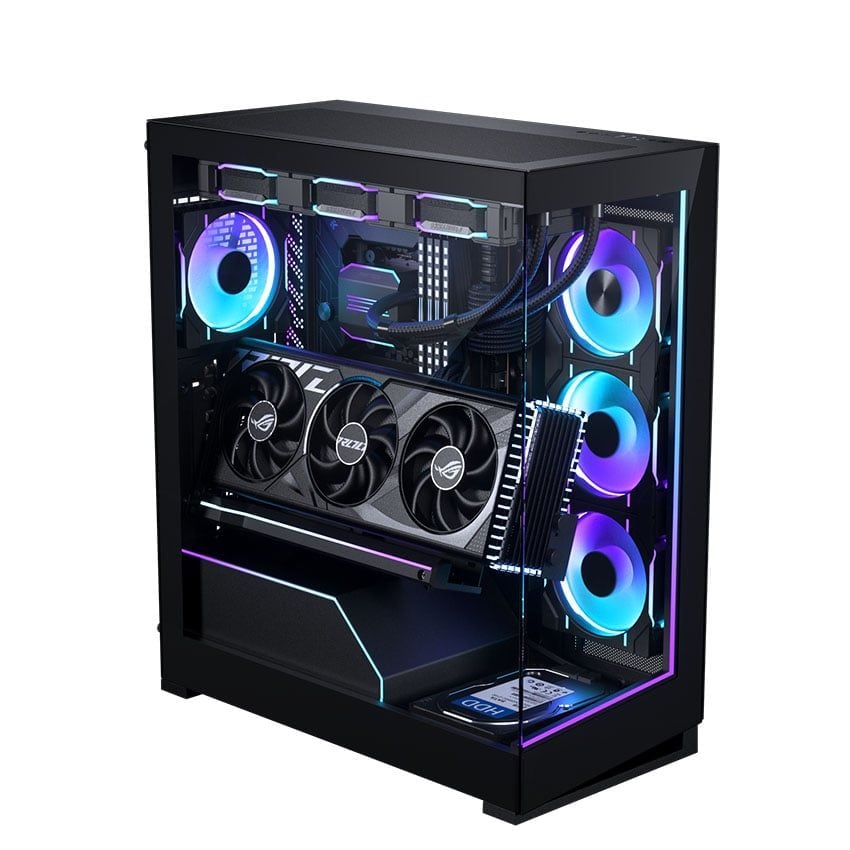

Case Phanteks NV5S ATX TG Black

GENERAL

Case Dimensions

239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in

Form Factor

Mid-Tower

Mainboard Support

E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass

Color

Black

PCI Slots

7

Vertical GPU Support

3 slots

Internal 2.5″ Bay

4

Internal 3.5″ Bay

3

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button

FANS (120 | 140)

Total Fans

8x | -

Top

3x | -

Front

-

Side

3x | -

Rear

1x | -

Bottom

1x | -

RADIATOR (120 | 140)

Top

Max. 360 | -

Front

-

Side

Max. 360 | -

Rear

120 | -

Bottom

-

CLEARANCE

CPU Cooler

180 mm | 7.08 in

GPU (L x H)

440 x 170 mm | 17.32 x 6.69 in

Power Supply (Length)

230 mm | 9.05 in

Top Radiator

134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in

Side Radiator

130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in

Rear Radiator

132 x 170 mm | 5.19 x 6.69 in

EXTRA

Net Weight

11.28 kg | 24.9 lbs

Gross Weight

13.97 kg | 30.8 lbs

Screws

22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool
