GIGABYTE B660 AORUS Elite AX DDR4

Tình trạng: Liên hệ

Mã sản phẩm: Đang cập nhật

Thương hiệu: GIGABYTE

Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

~~5,550,000₫~~ 4,900,000₫ Tiết kiệm 12%

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Thông số kỹ thuật chi tiết

Tổng quan
Socket	LGA1700
Chipset	Intel® B660 Express Chipset
CPU (hỗ trợ tối đa)	Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
OS hỗ trợ	Support for Windows 11 64-bit Support for Windows 10 64-bit
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
Bộ Nhớ
Bộ nhớ RAM tối đa	128GB
Số khe cắm	4
Kênh bộ nhớ	Dual
RAM	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Đồ Họa và Âm Thanh
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Kết Nối Mạng
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Bluetooth	BLUETOOTH 5.2
Kết nối Wireless	Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.

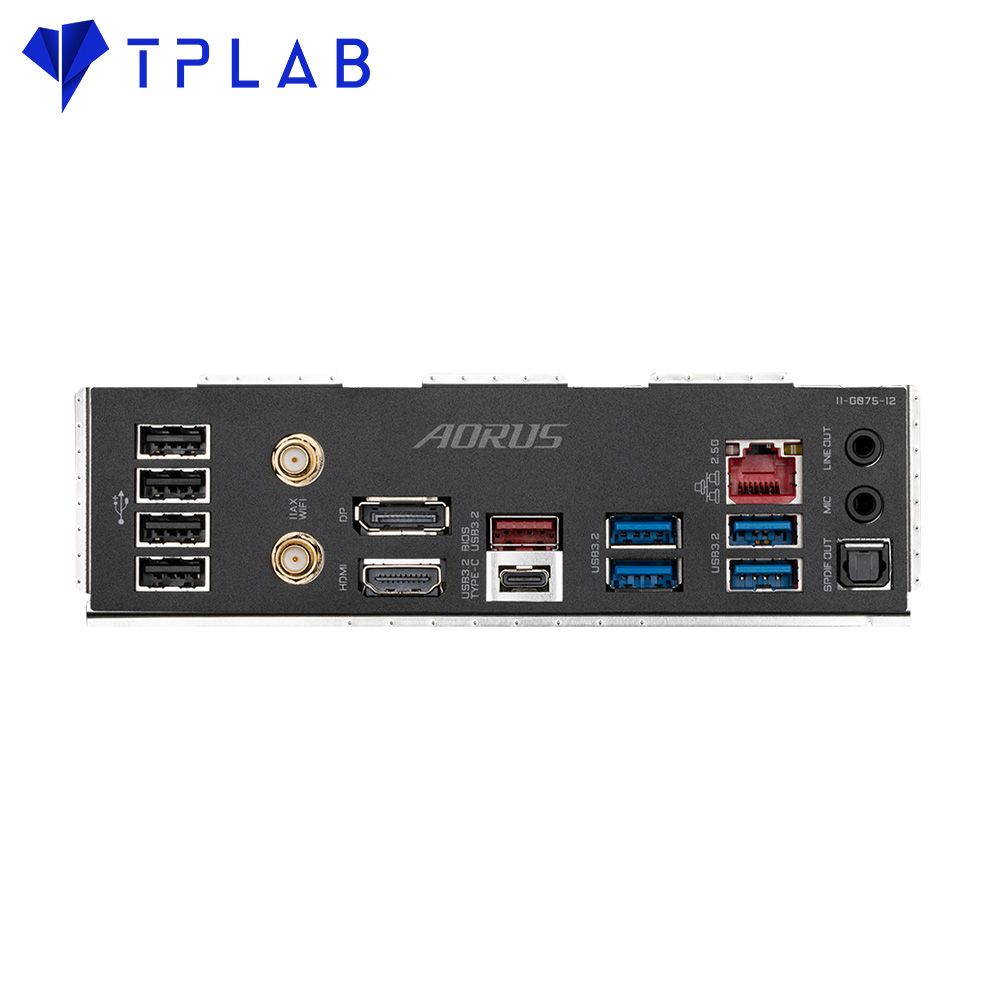

Cổng Kết Nối
Các cổng khác	2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector
RJ45	1 x RJ-45 port
Cổng Audio	2 x audio jacks
HDMI	1 x HDMI 2.0 port
Display Port	1 x DisplayPort
Kết Nối I/O Bên Trong
SATA III 6Gb/s	4 x SATA 6Gb/s connectors
M.2 SLOT	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
PCI	2 x PCI Express x1 slots
PCI-EX16	1 x PCI Express x16 slot, running at x16 (PCIEX16)
Tính Năng Khác
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring (Bộ theo dõi phần cứng)	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Tính năng đặc biệt khác	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
RAID	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
