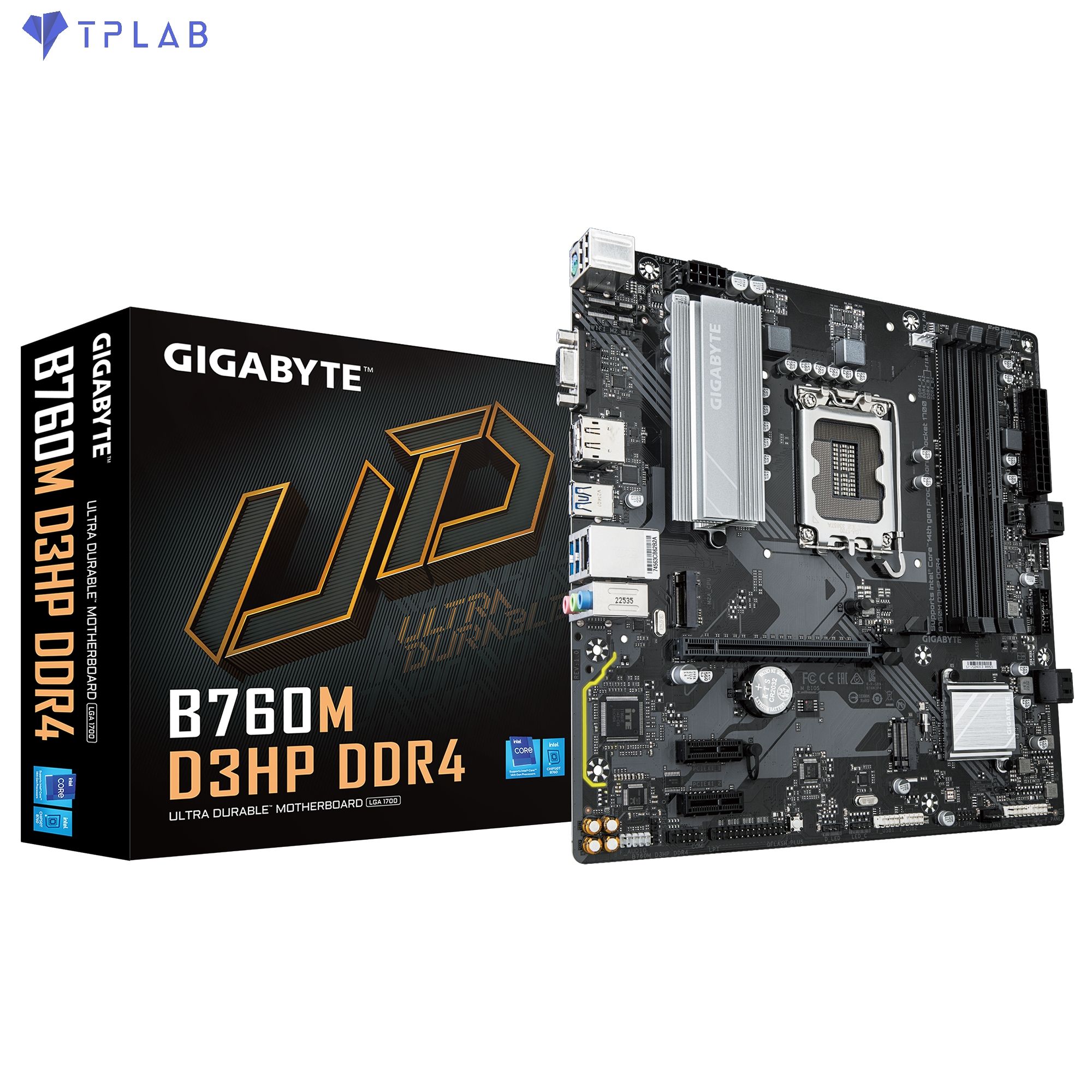

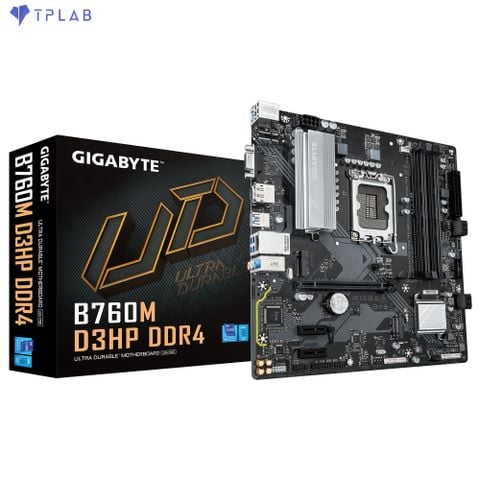

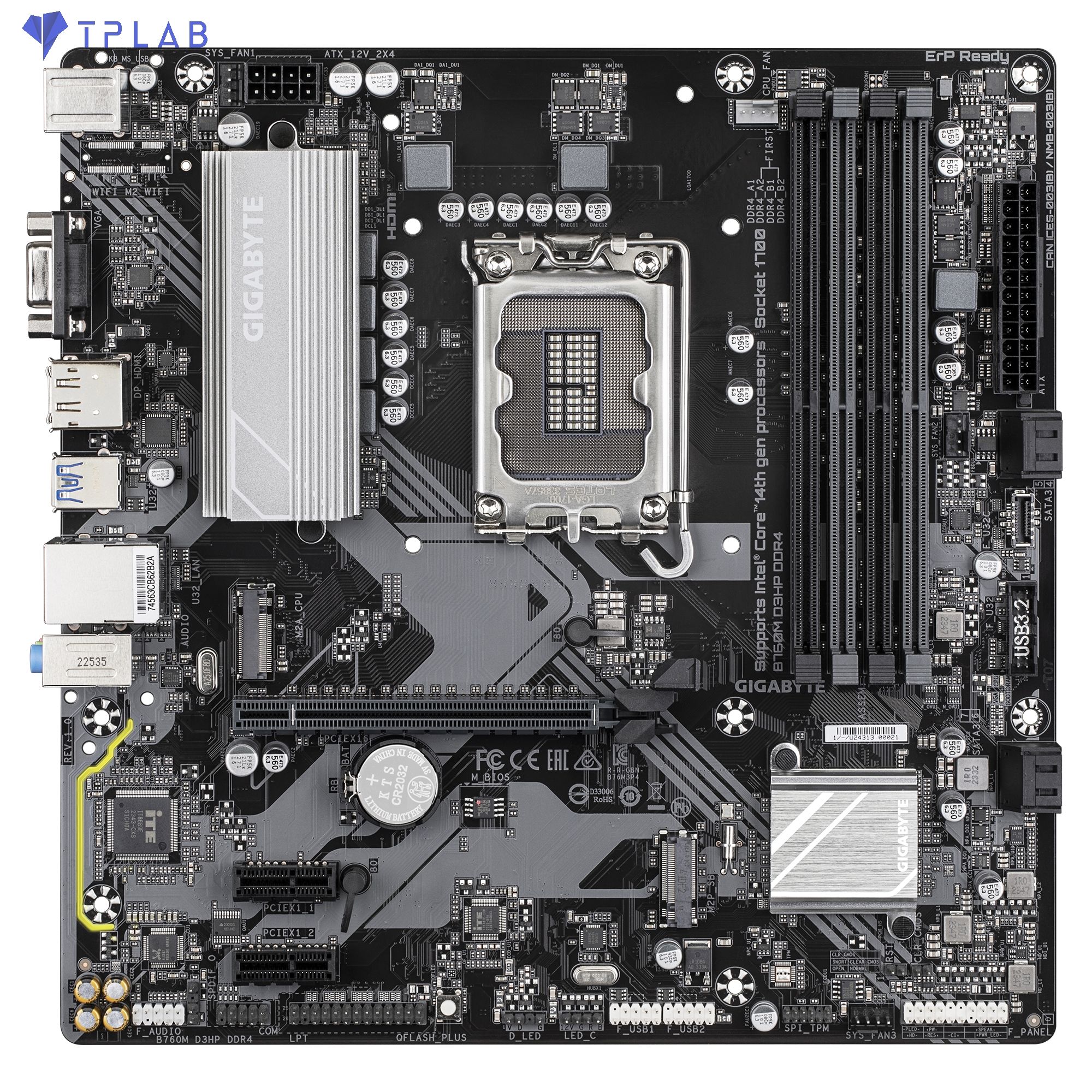

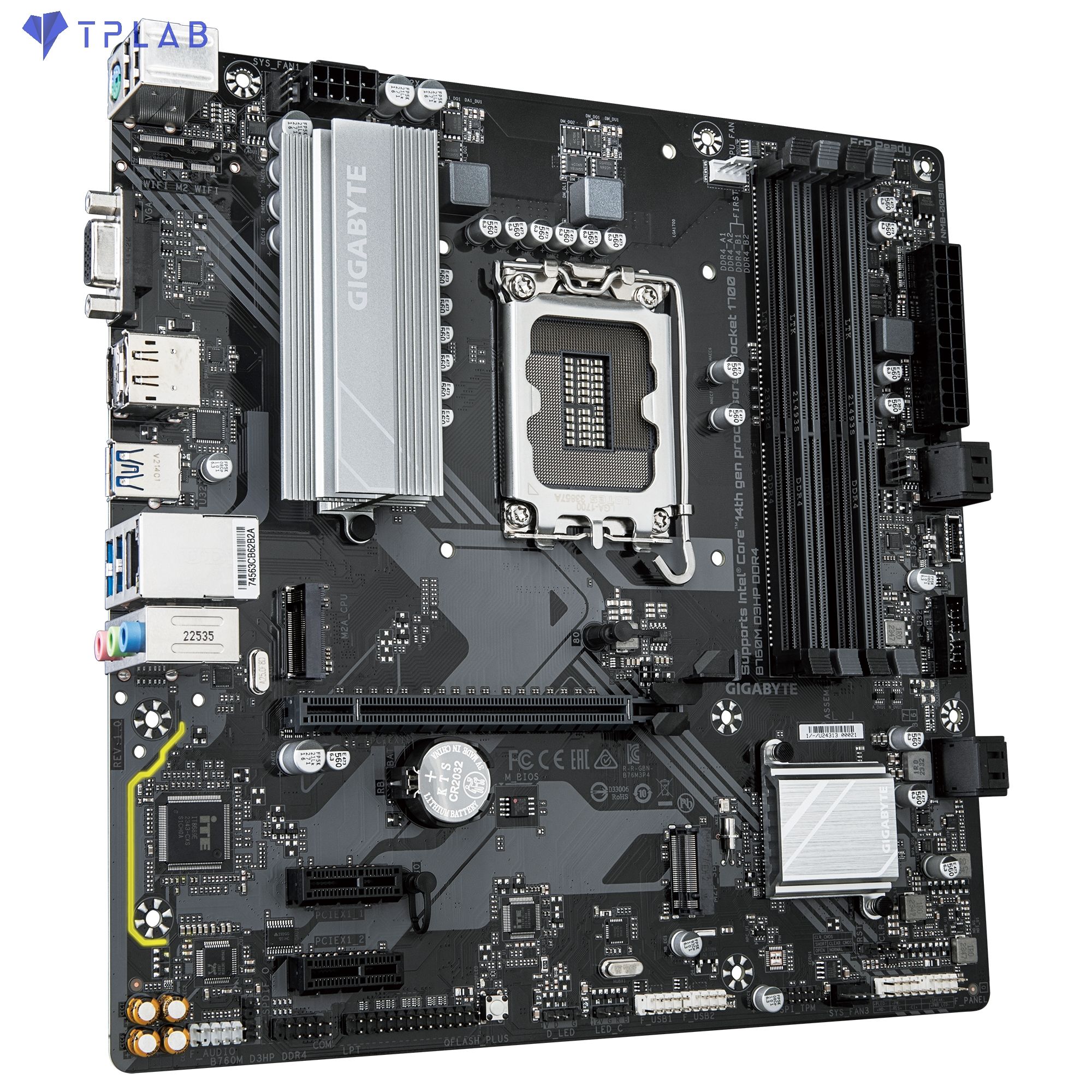

Gigabyte B760M D3HP DDR4

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

2,650,000₫
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

  • CPU

    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)

  • Chipset

    Intel® B760 Express Chipset

  • Bộ nhớ

    Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Card đồ họa tích hợp

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Âm thanh

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN

    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

  • Khe cắm mở rộng

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  • Giao diện lưu trữ

    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Kết nối I/O bên trong

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x parallel port header
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

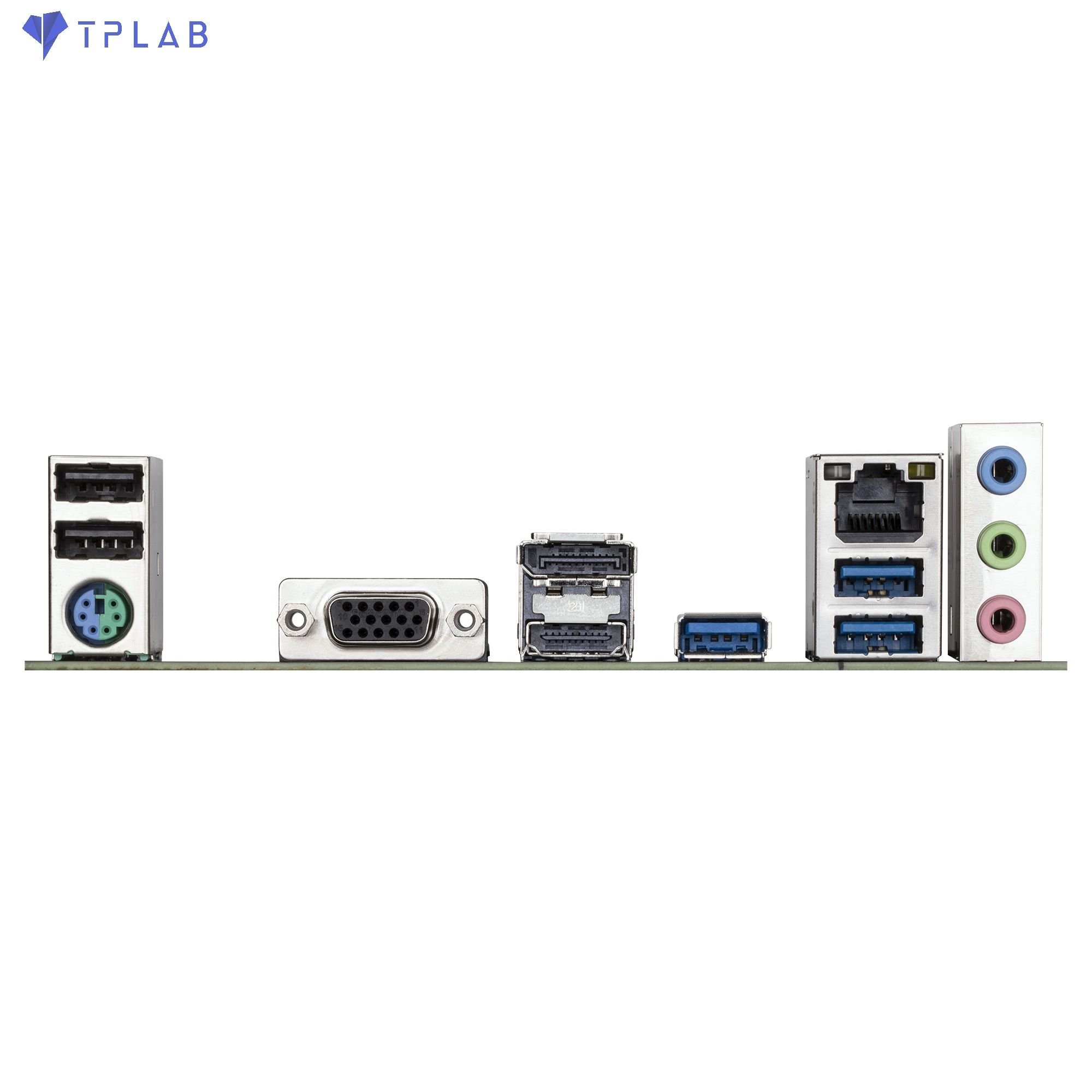

  • Kết nối bảng phía sau

    2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DisplayPort
    1 x HDMI port
    3 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    3 x audio jacks

  • Điều khiển I/O

    iTE® I/O Controller Chip

  • Theo dõi phần cứng

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Tính năng duy nhất

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
  • Gói phần mềm

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Hệ điều hành

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

  • Hệ số khuôn

    Micro ATX Form Factor; 24.4cm x 24.4cm
