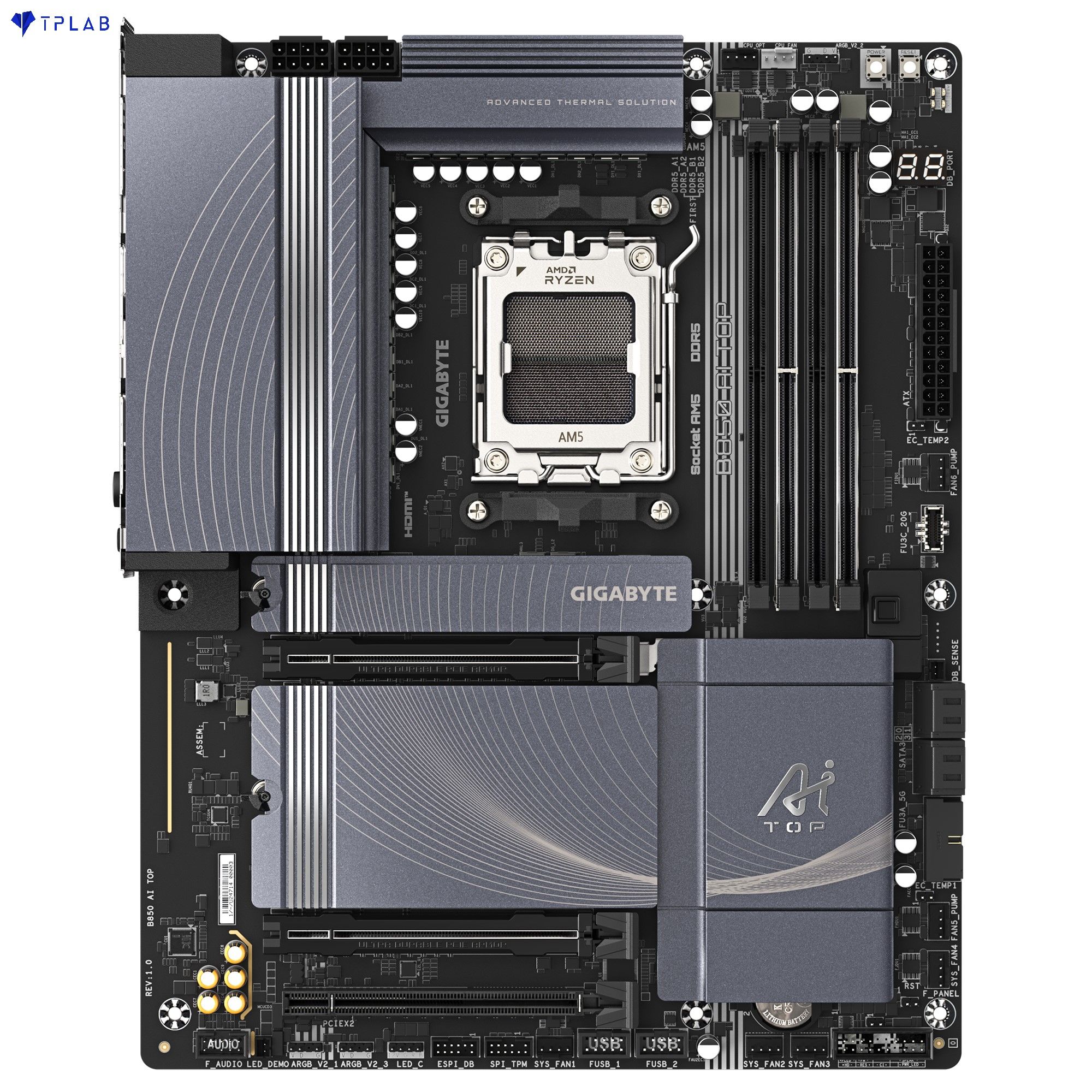

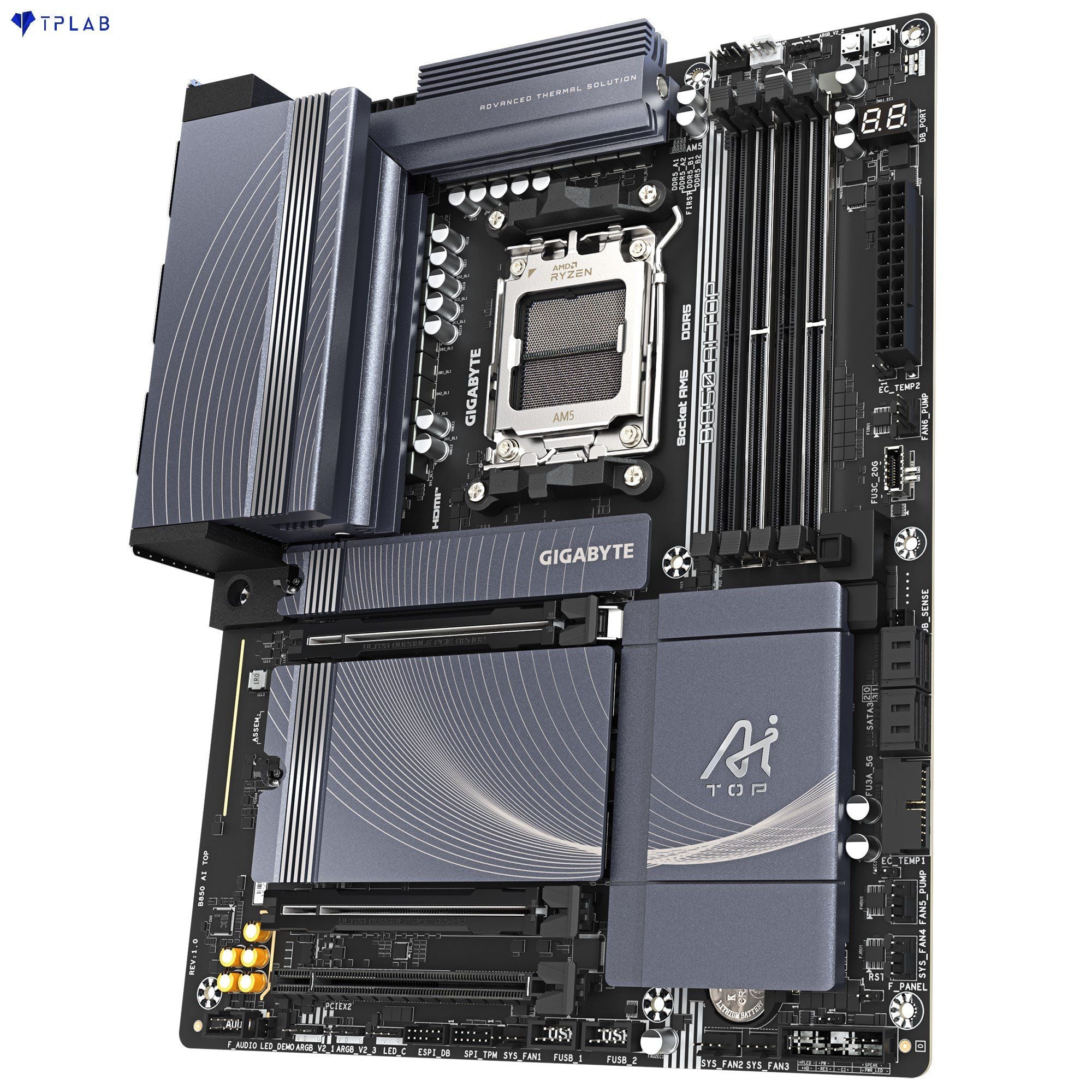

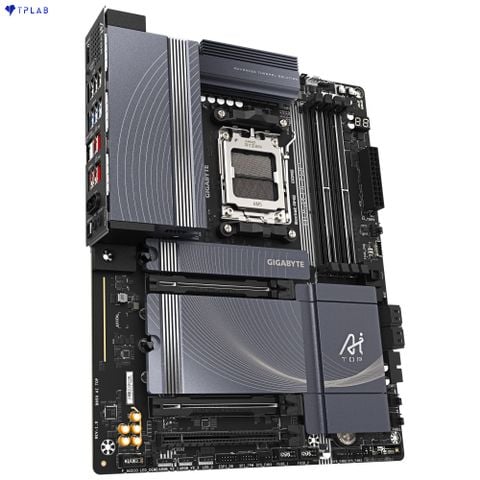

Gigabyte B850 AI TOP
Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard
Tình trạng: Mới 100% - Fullbox
Bảo hành : 36 Tháng
Liên hệ
Component | Specifications |
---|---|
CPU | AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors |
Chipset | AMD B850 |
Memory | Supports DDR5 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules, up to 256 GB |
Integrated Graphics | AMD Radeon™ Graphics, USB Type-C (3840x2160@144 Hz), HDMI (4096x2160@60 Hz) |
Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
LAN | 2 x Marvell® AQtion AQC113C 10GbE LAN chips |
Wireless | Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4 |
Expansion Slots | 1 x PCIe x16 (PCIEX16), 1 x PCIe x16 (PCIEX8), 1 x PCIe x16 (PCIEX2) |
Storage | 3 x M.2 connectors, 4 x SATA 6Gb/s connectors, RAID 0/1/5/10 support |
USB Ports | Multiple USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0/1.1 ports |
Internal I/O | 24-pin ATX, 2 x 8-pin ATX 12V, fan headers, RGB headers, front panel headers, audio headers, USB headers, TPM header, power/reset buttons |

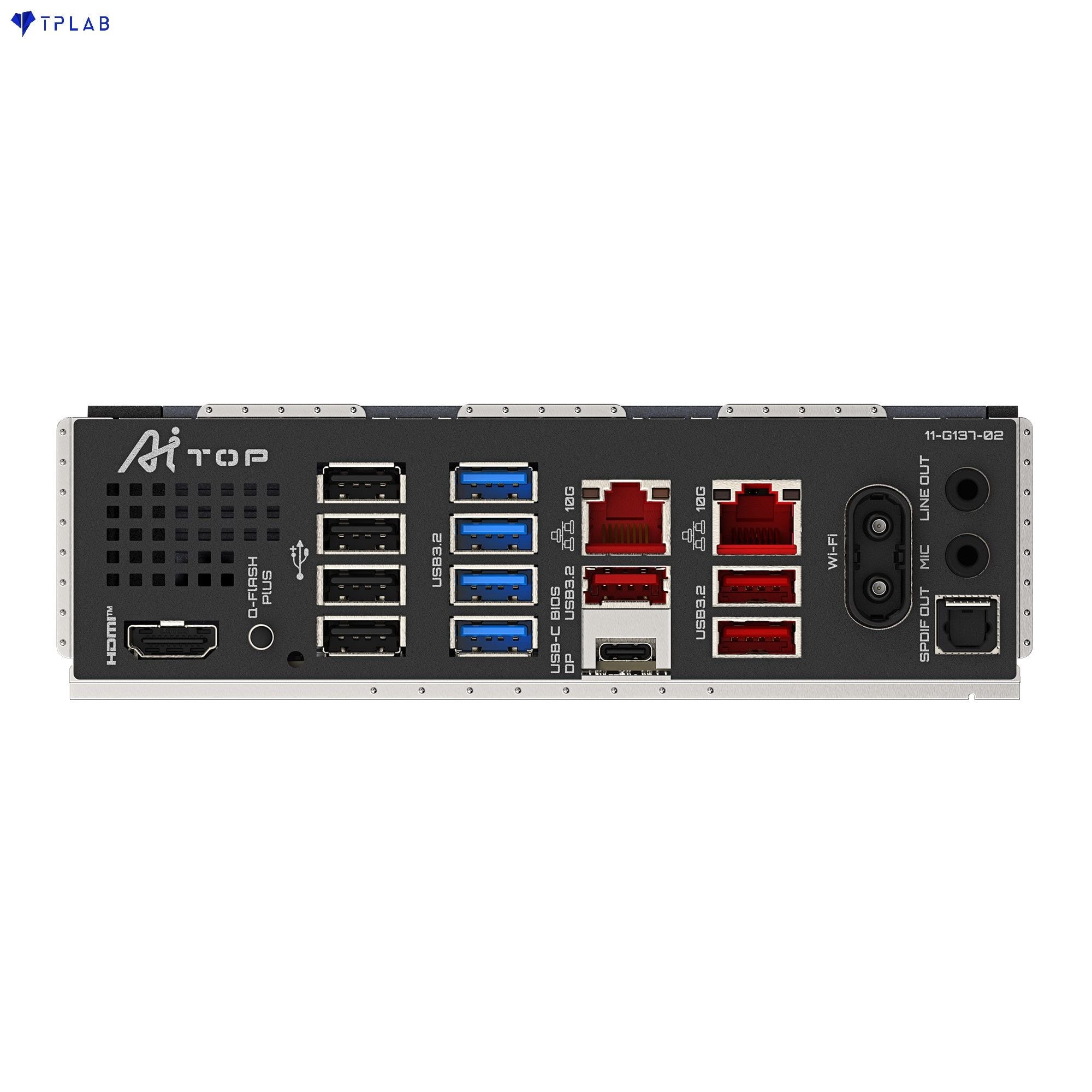

Rear I/O | Q-Flash Plus button, SMA antenna connectors, HDMI port, USB Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0/1.1, RJ-45 ports, optical S/PDIF Out, audio jacks |
BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
Operating System | Windows 11 64-bit |
Form Factor | ATX, 30.5cm x 24.4cm |
