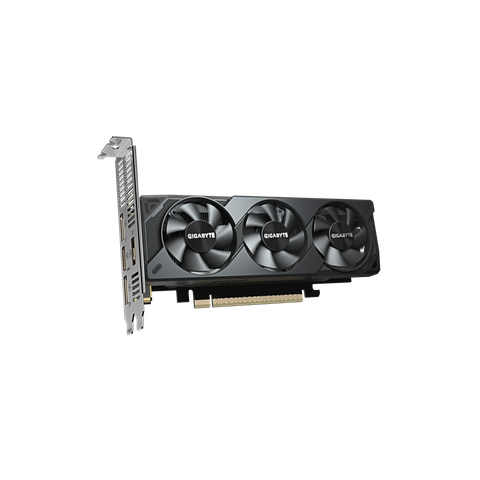

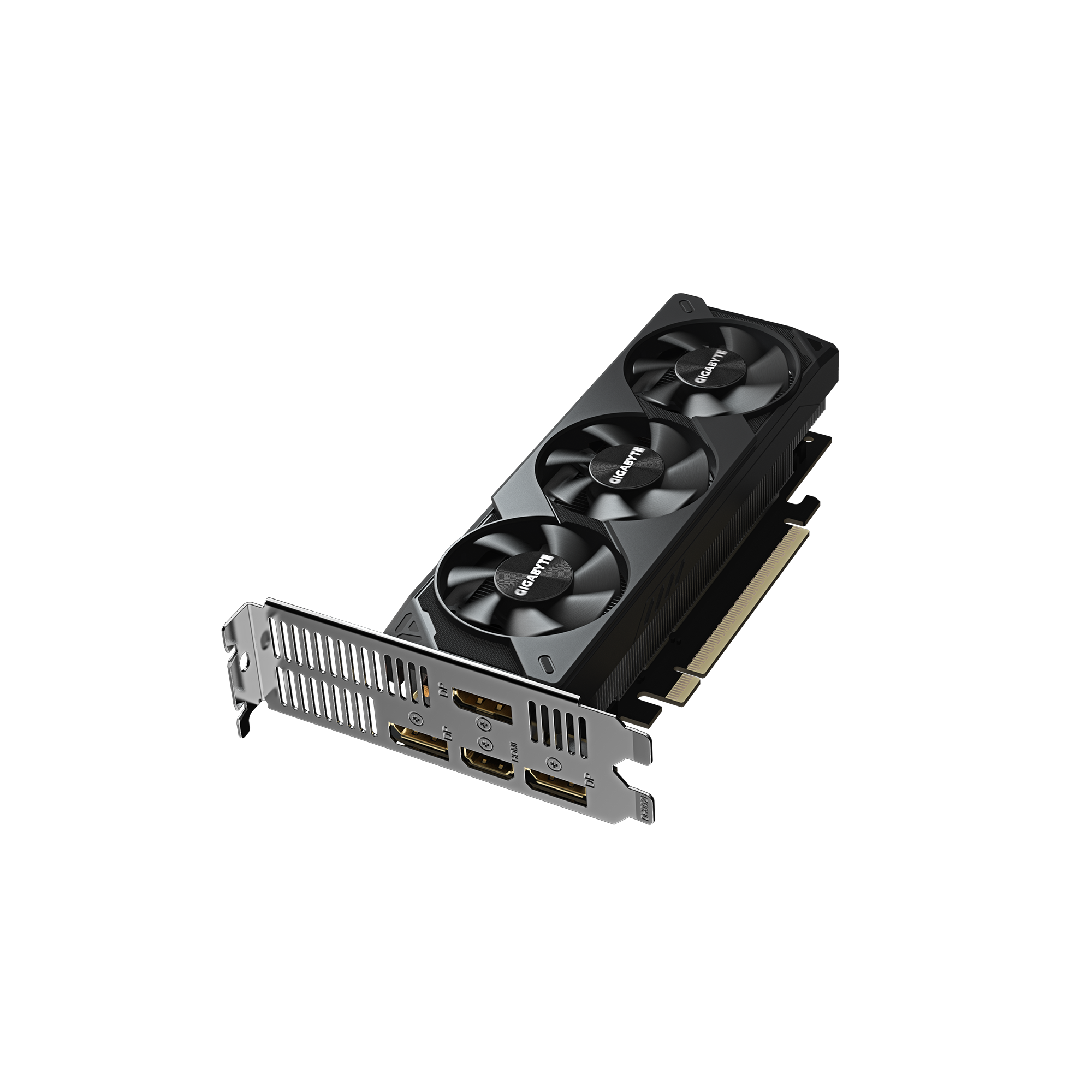

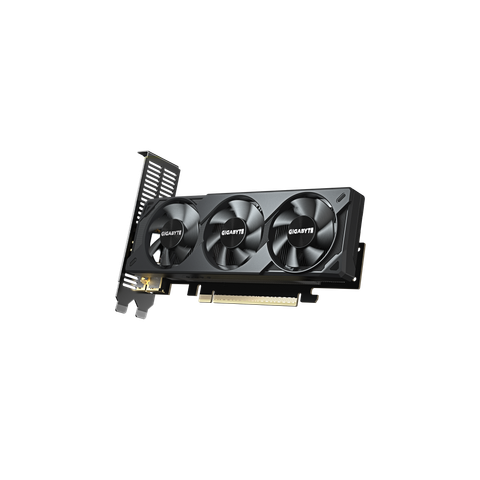

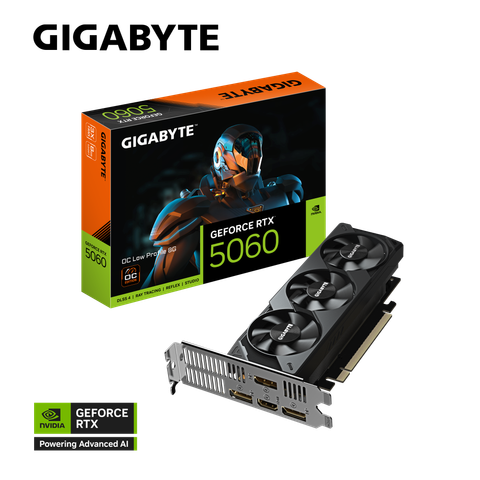

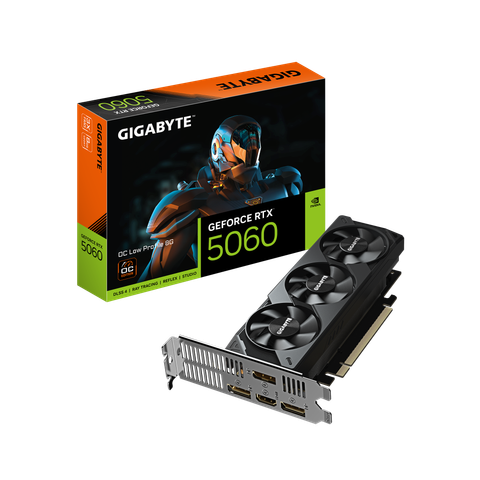

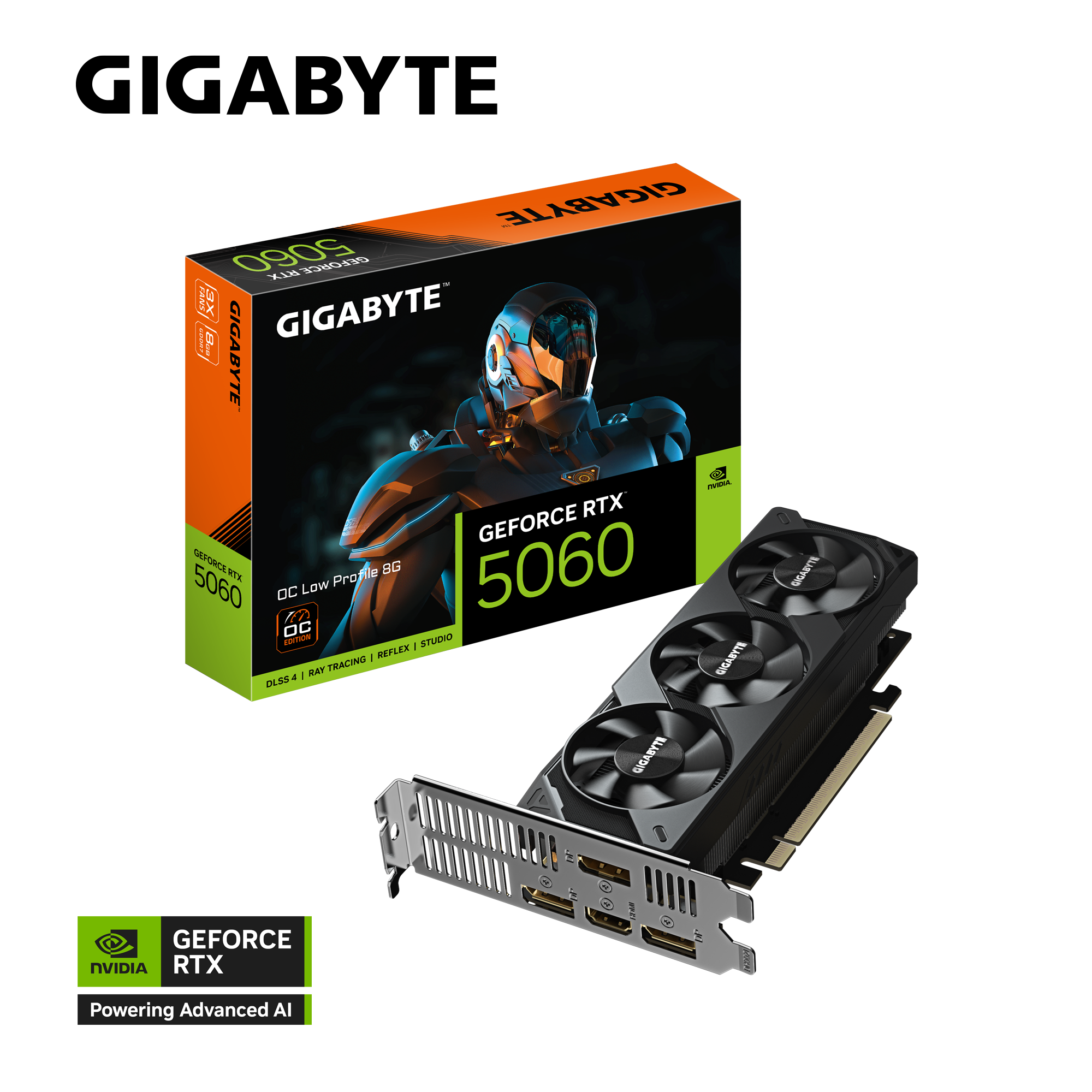

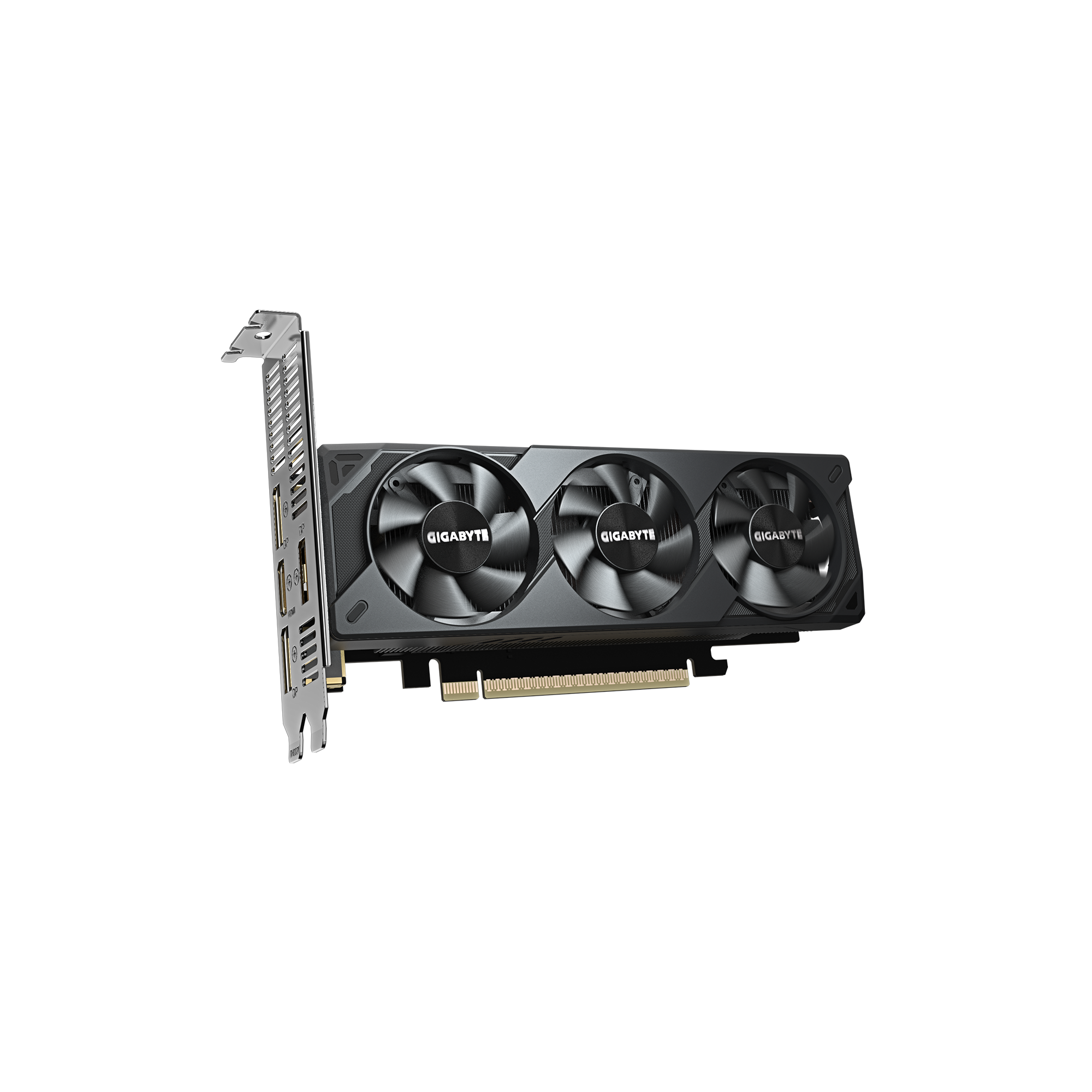

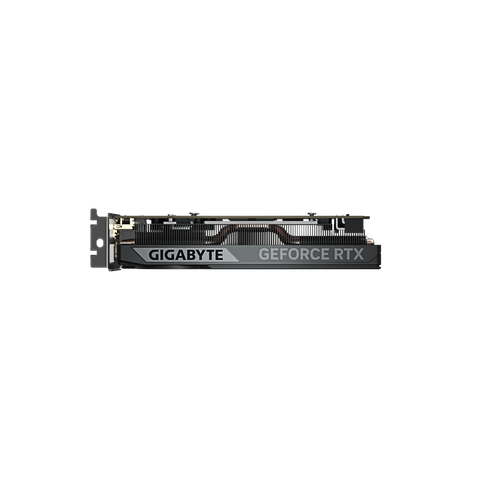

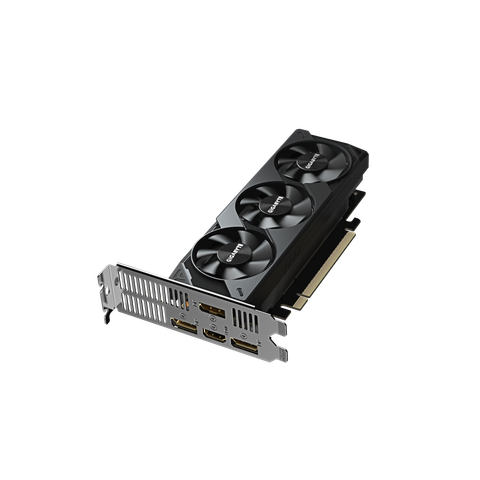

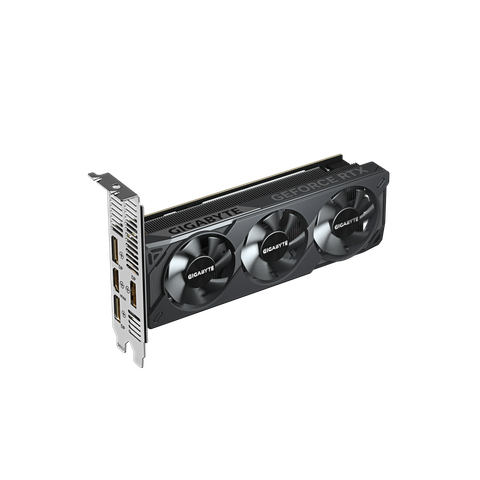

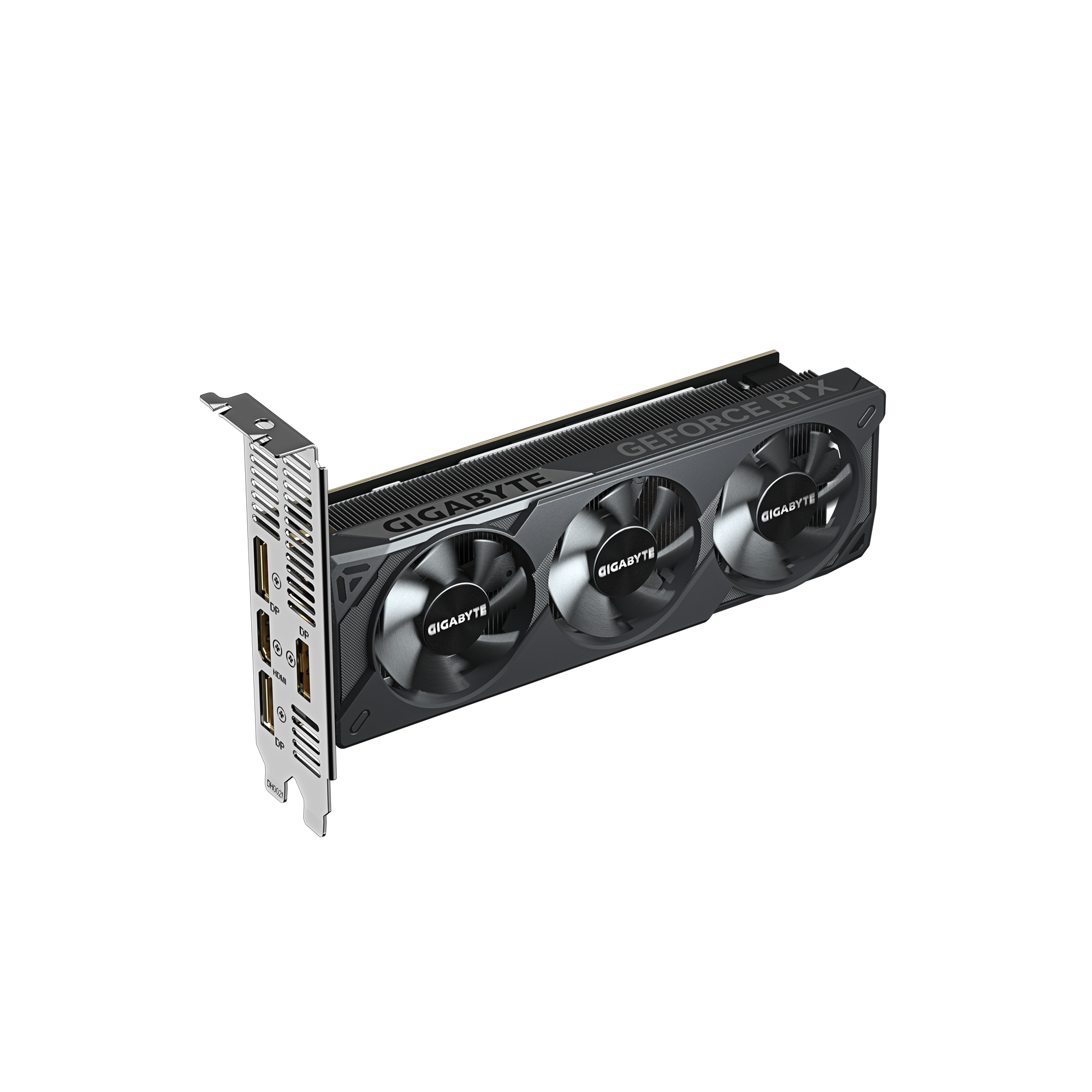

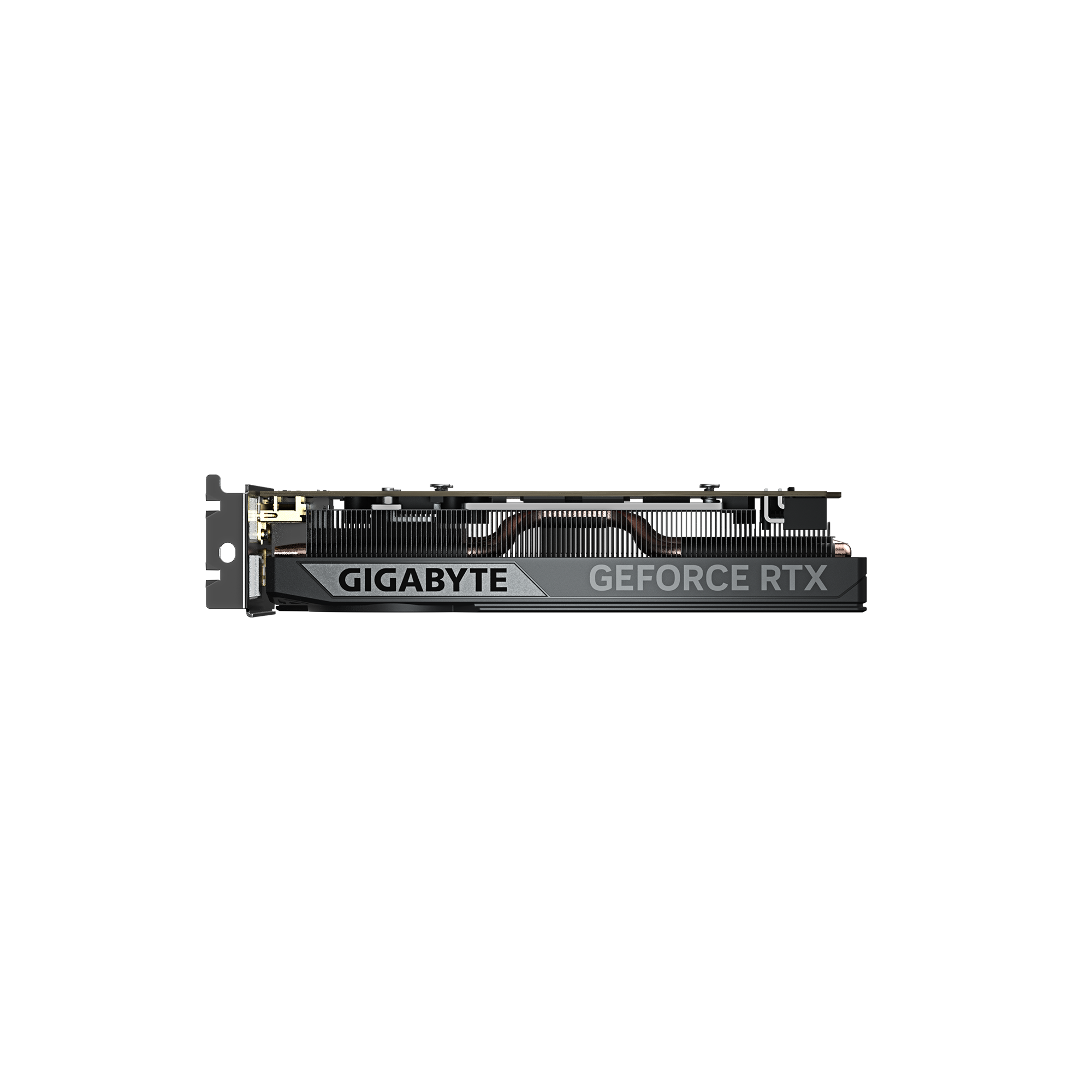

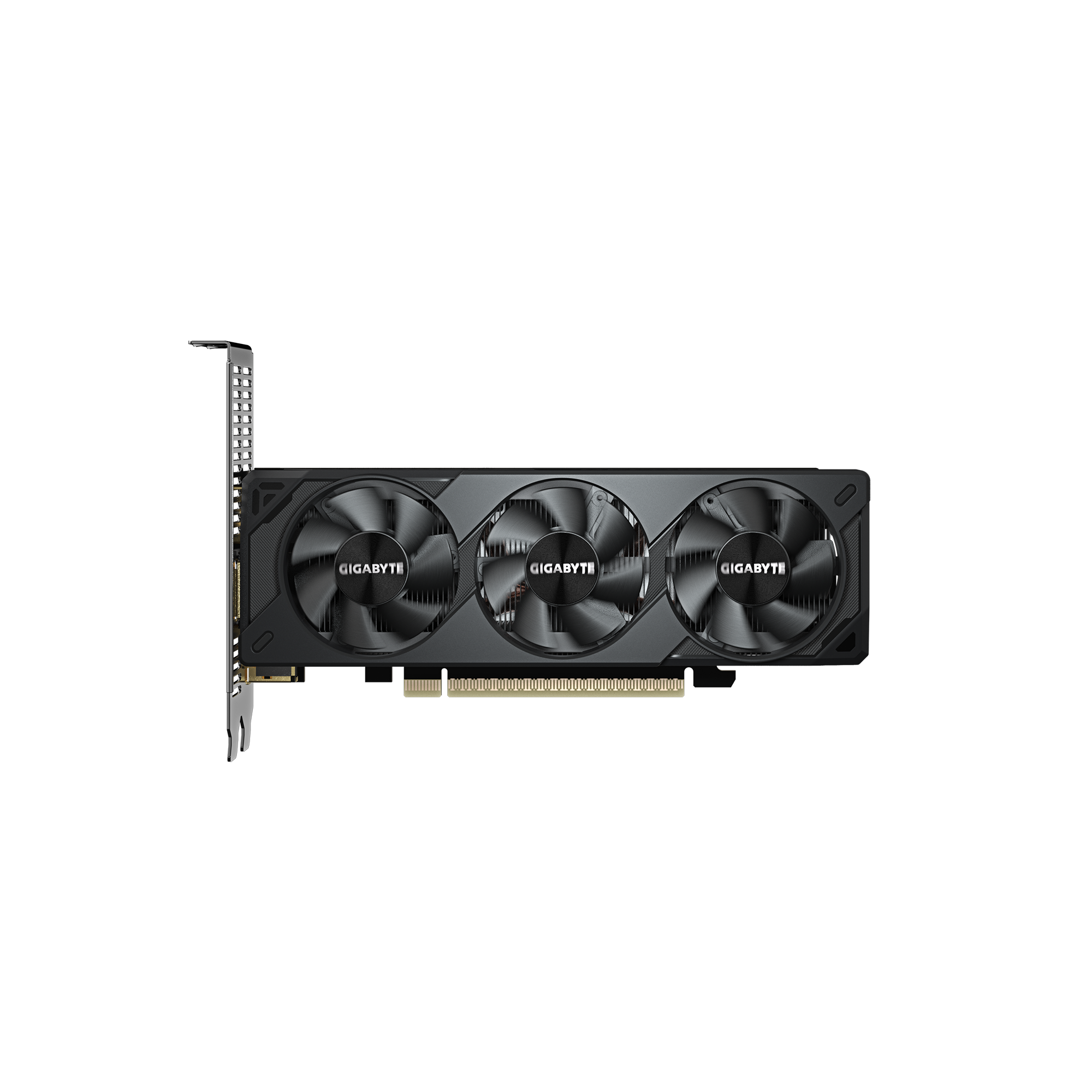

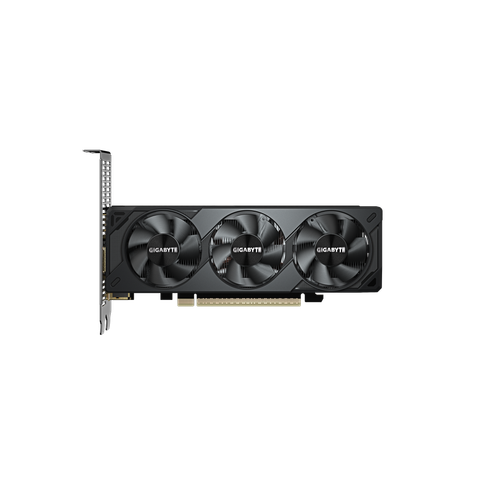

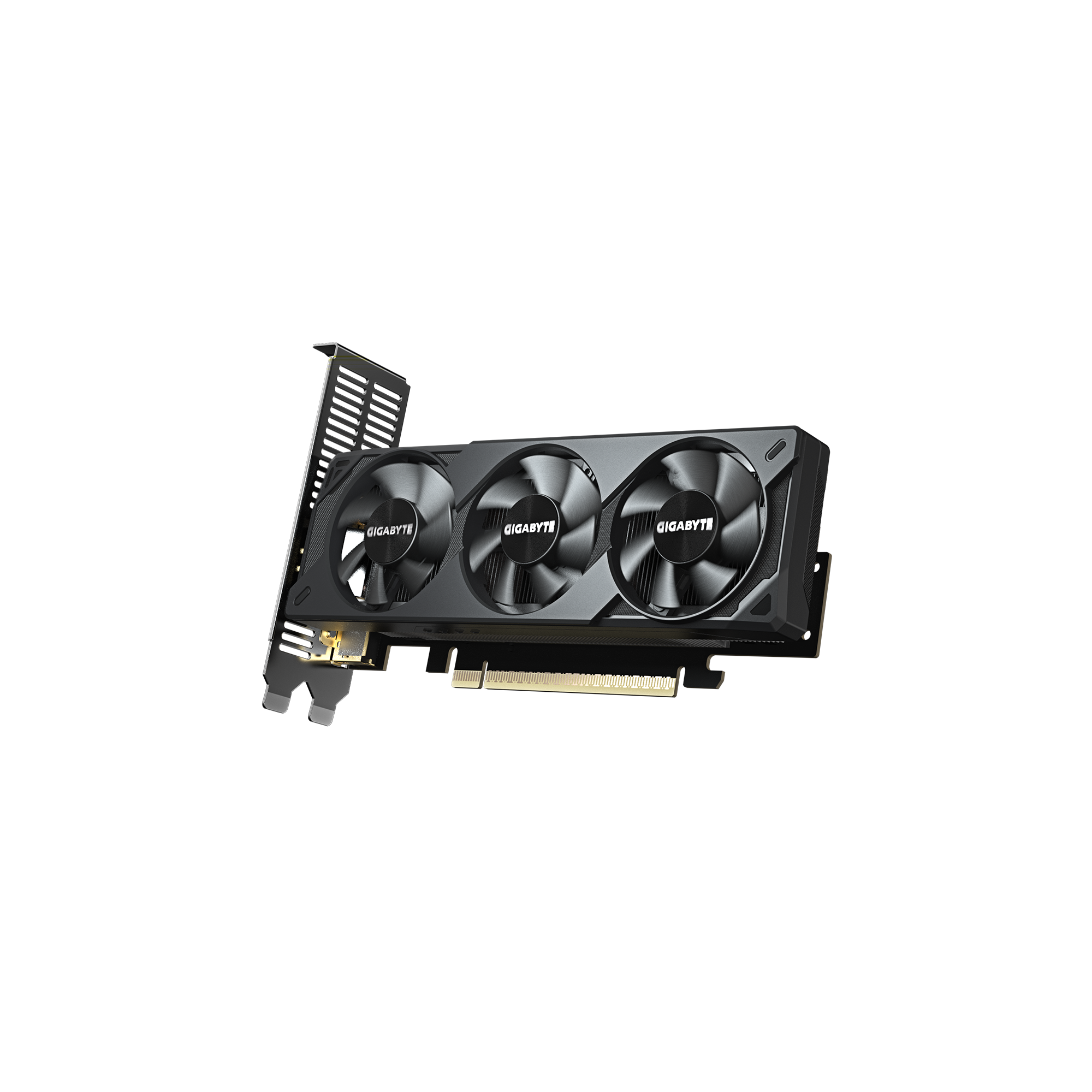

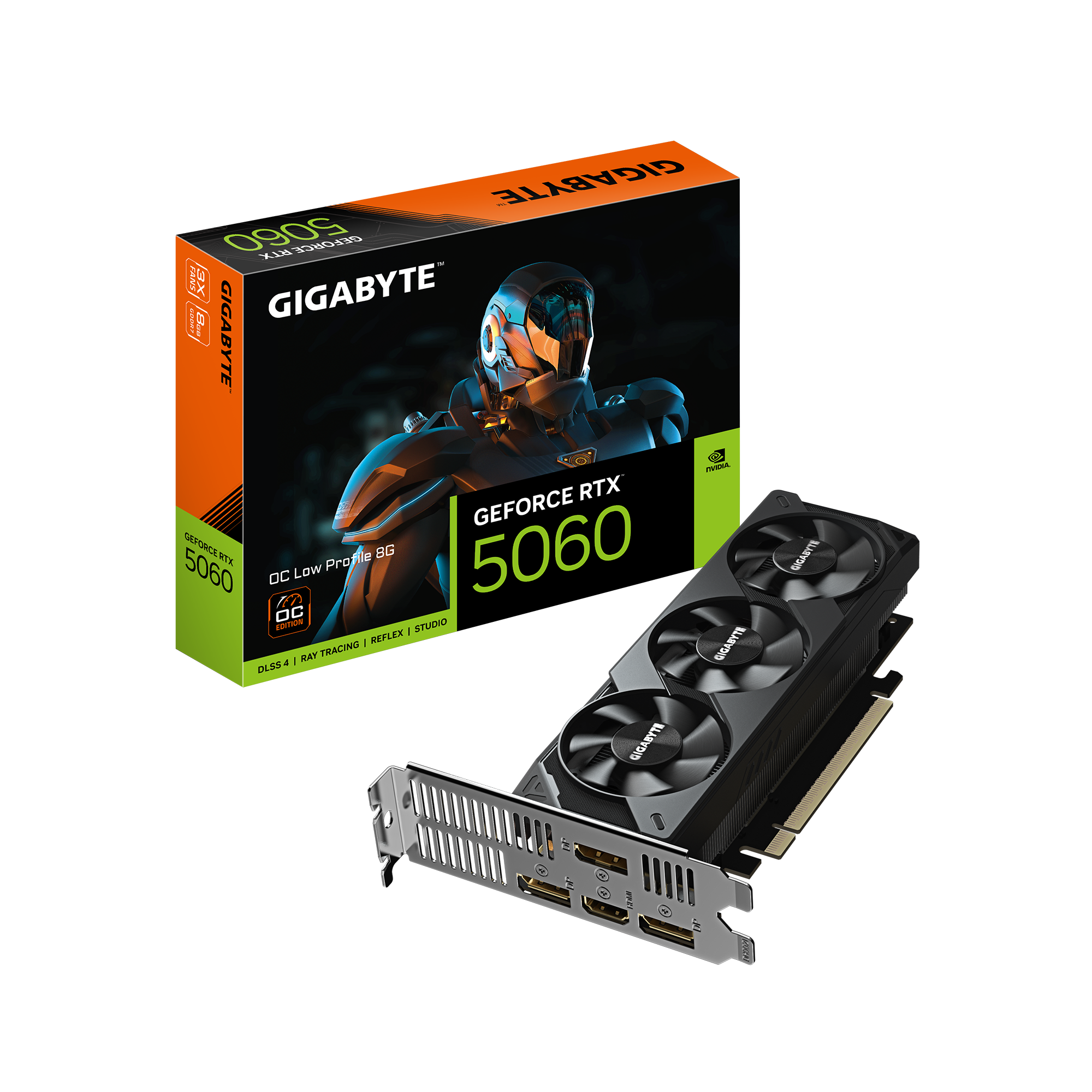

GIGABYTE GeForce RTX 5060 LP 8G OC

Graphics Processing

GeForce RTX™ 5060

Core Clock

2512 MHz (Reference card : 2497MHz)

CUDA® Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=182 W=69 H=36

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

450W

Power Connectors

8 Pin*1

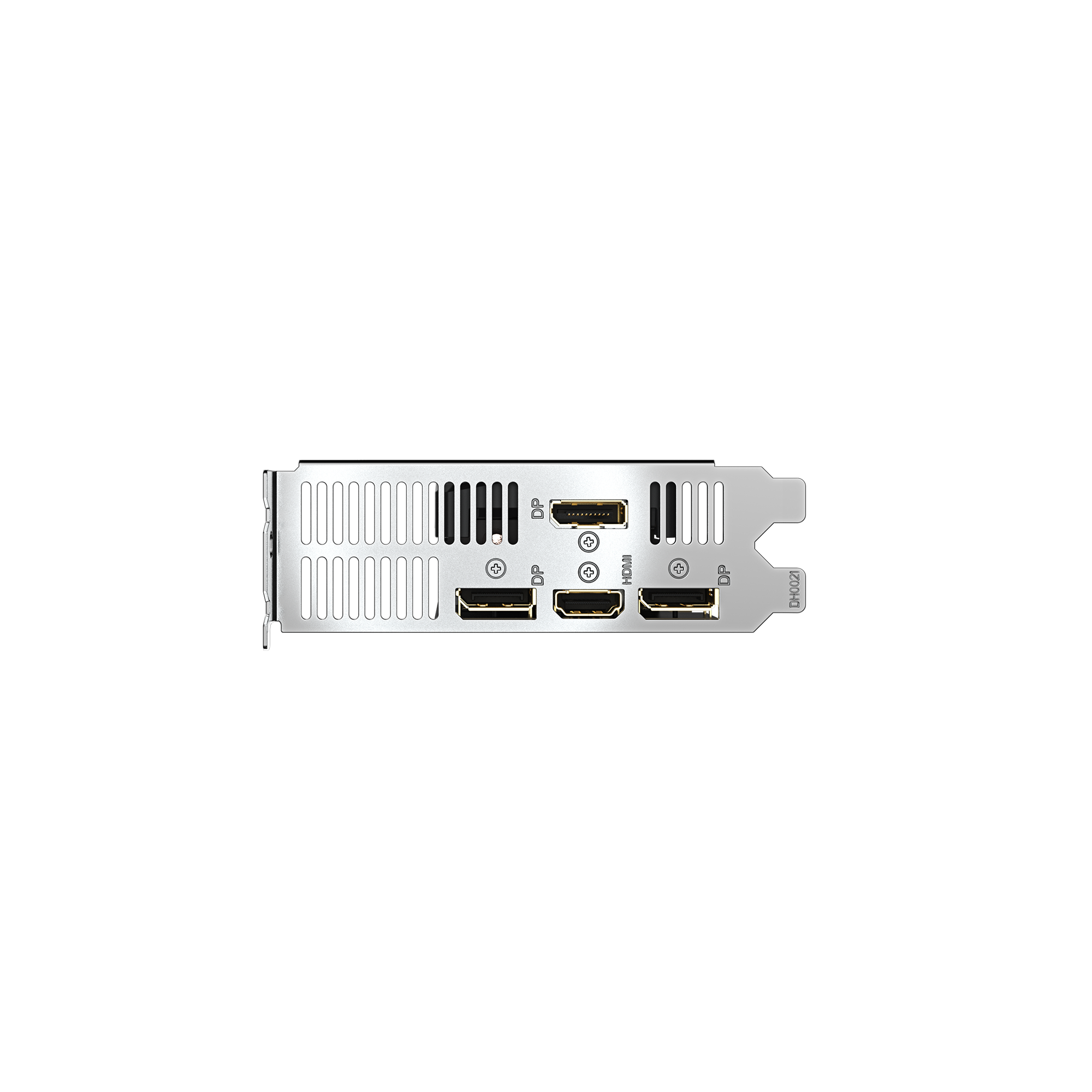

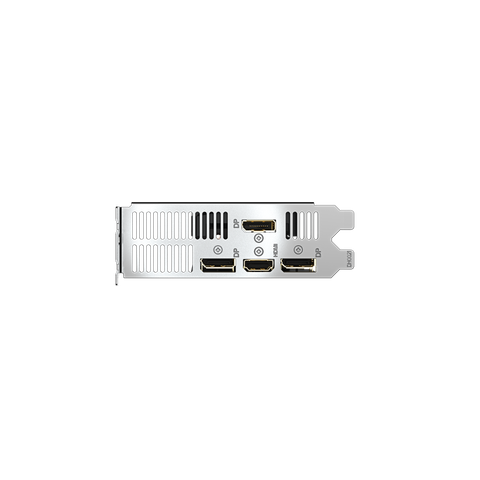

Output

DisplayPort 2.1b *2
DisplayPort 1.4a *1
HDMI 2.1b *1

Accessories

1. Quick guide
2. Low Profile Bracket
