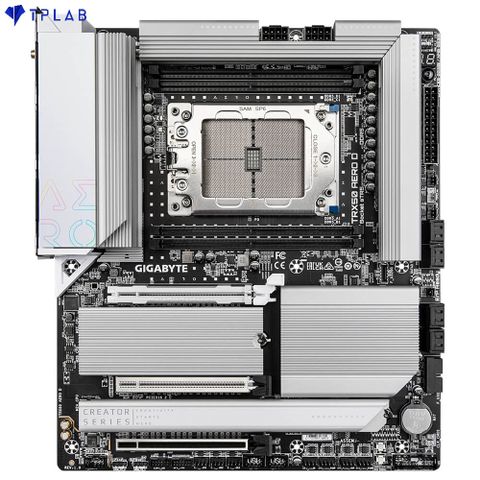

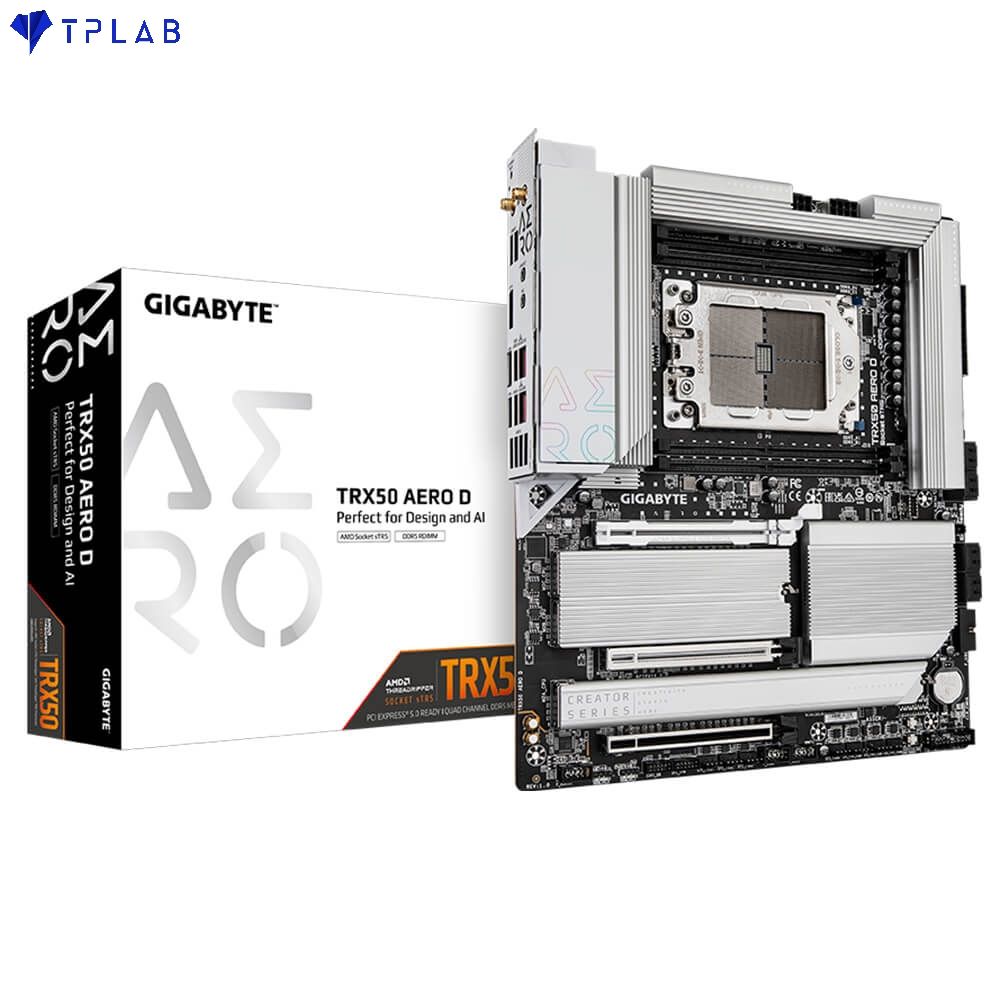

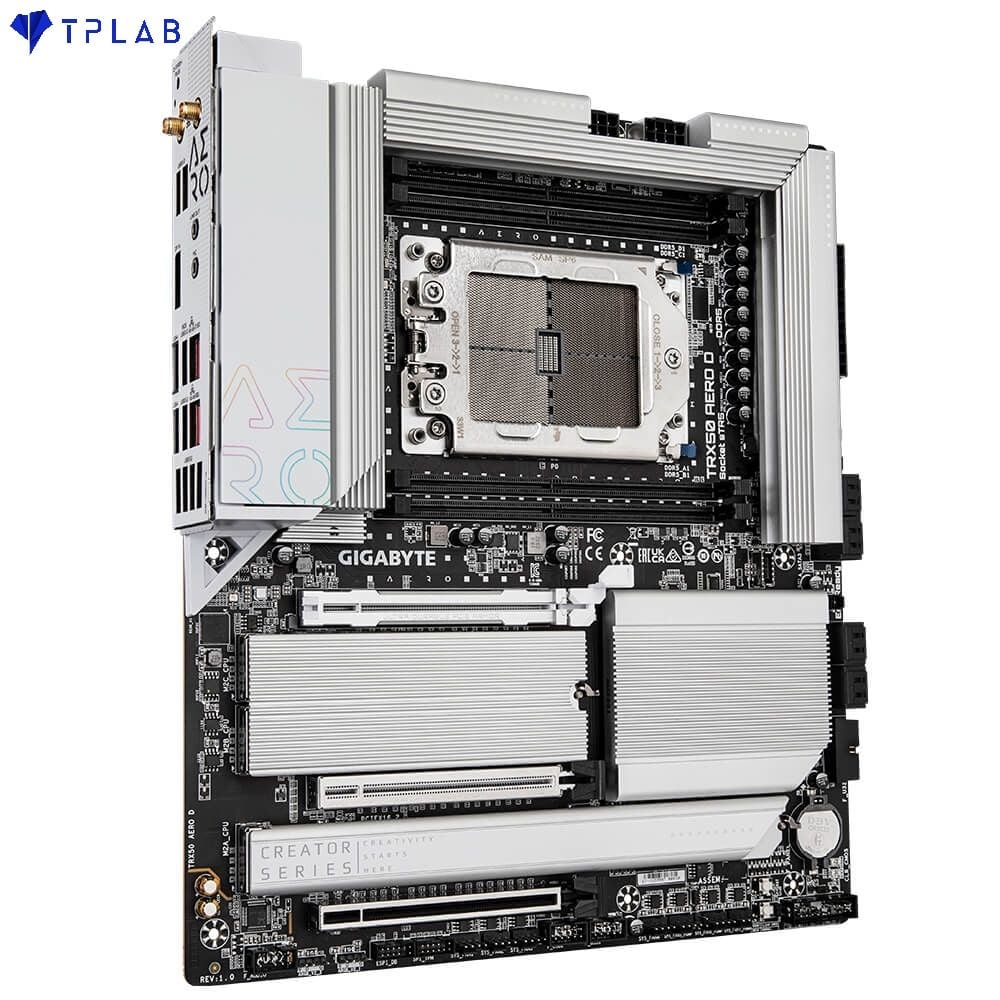

Gigabyte TRX50 AERO D – Socket sTR5

Tình trạng: Còn hàng
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích


    CPUAMD Socket sTR5, support for:
    AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
    ChipsetAMD TRX50
    MemorySupport for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
    4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
    Quad channel memory architecture
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
    AudioRealtek® ALC4080 CODEC (rear panel audio)
    – Support for DTS:X® Ultra
    – High Definition Audio
    – 2-channel
    Realtek® ALC897 CODEC (front panel audio)
    LANMarvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
    Wireless Communication moduleQualcomm® Wi-Fi 7 QCNCM865
    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)Note:
    Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
    Wi-Fi 7 channels on 6GHz band availability depends on inpidual country’s regulations.
    Expansion SlotsCPU:
    – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
    Storage InterfaceCPU:
    – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
    – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
    – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)CPU+Chipset:
    – 8 x SATA 6Gb/s connectors

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+Intel® JHL8540 USB4® controller:
    – 2 x USB4® USB Type-C® ports on the back panel

    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header

    CPU+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports available through the internal USB headers

    Internal I/O Connectors1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    8 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x Clear CMOS button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper

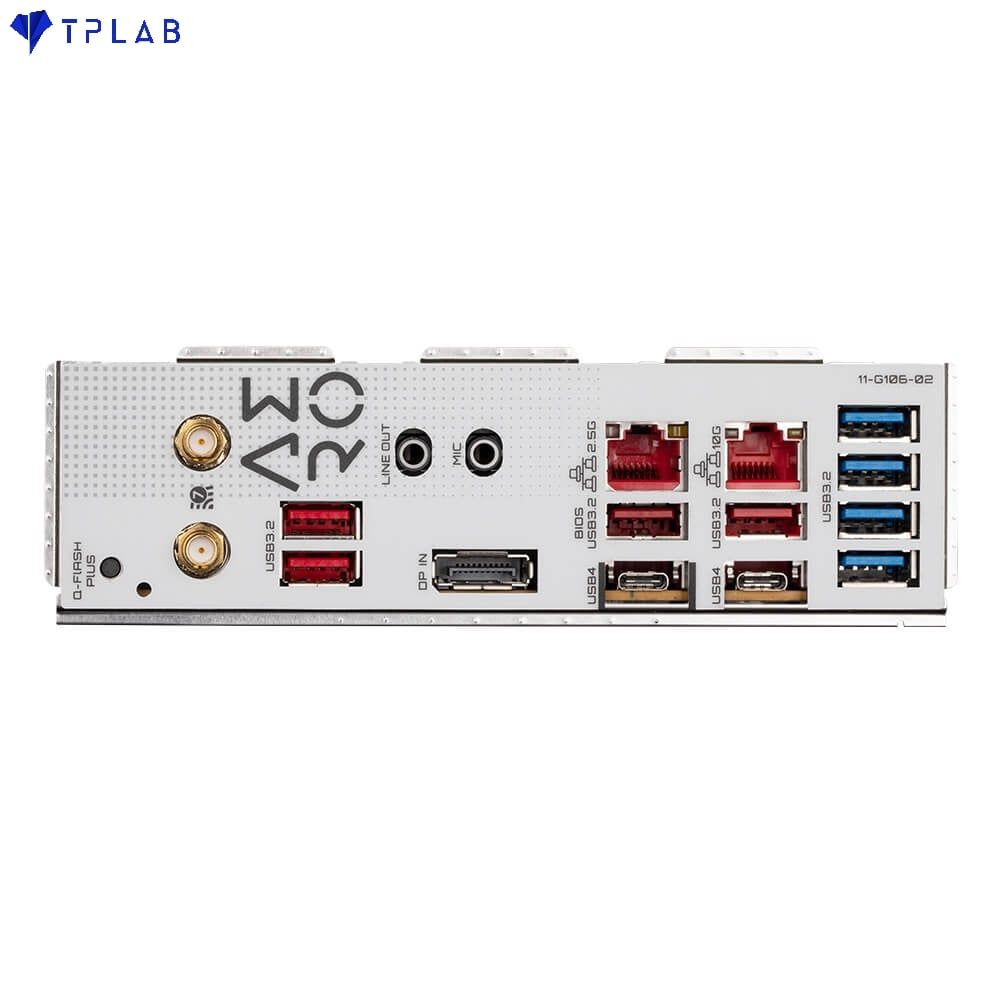

    Back Panel Connectors1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort In port
    1 x USB4® USB Type-C® port (DisplayPort)
    1 x USB4® USB Type-C® port
    4 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    2 x RJ-45 ports
    2 x audio jacks
    I/O ControlleriTE® I/O Controller Chip
    H/W MonitoringVoltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique FeaturesSupport for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled SoftwareNorton® Internet Security (OEM version)
    LAN bandwidth management software
    Operating SystemSupport for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form FactorE-ATX Form Factor; 30.5cm x 26.4cm
