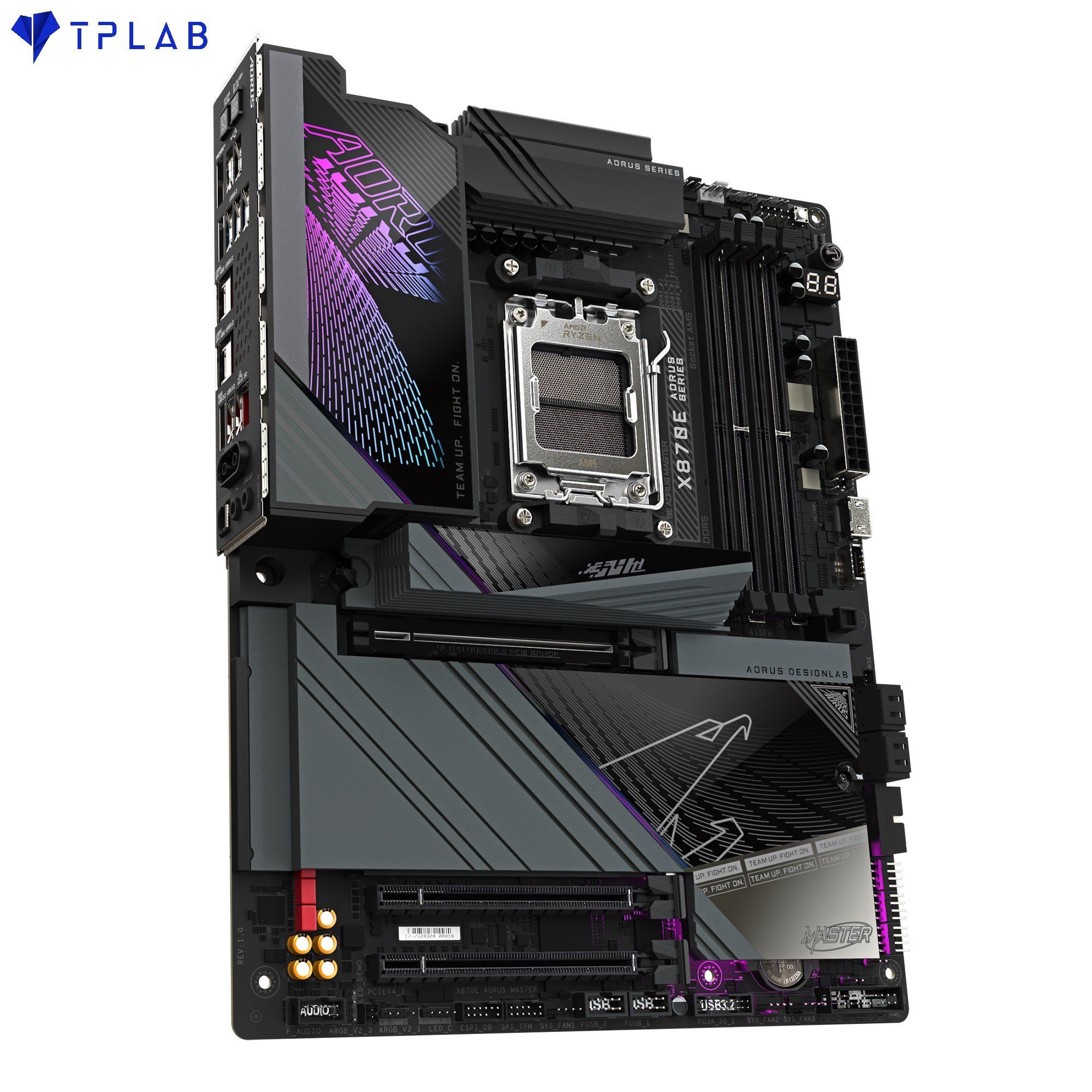

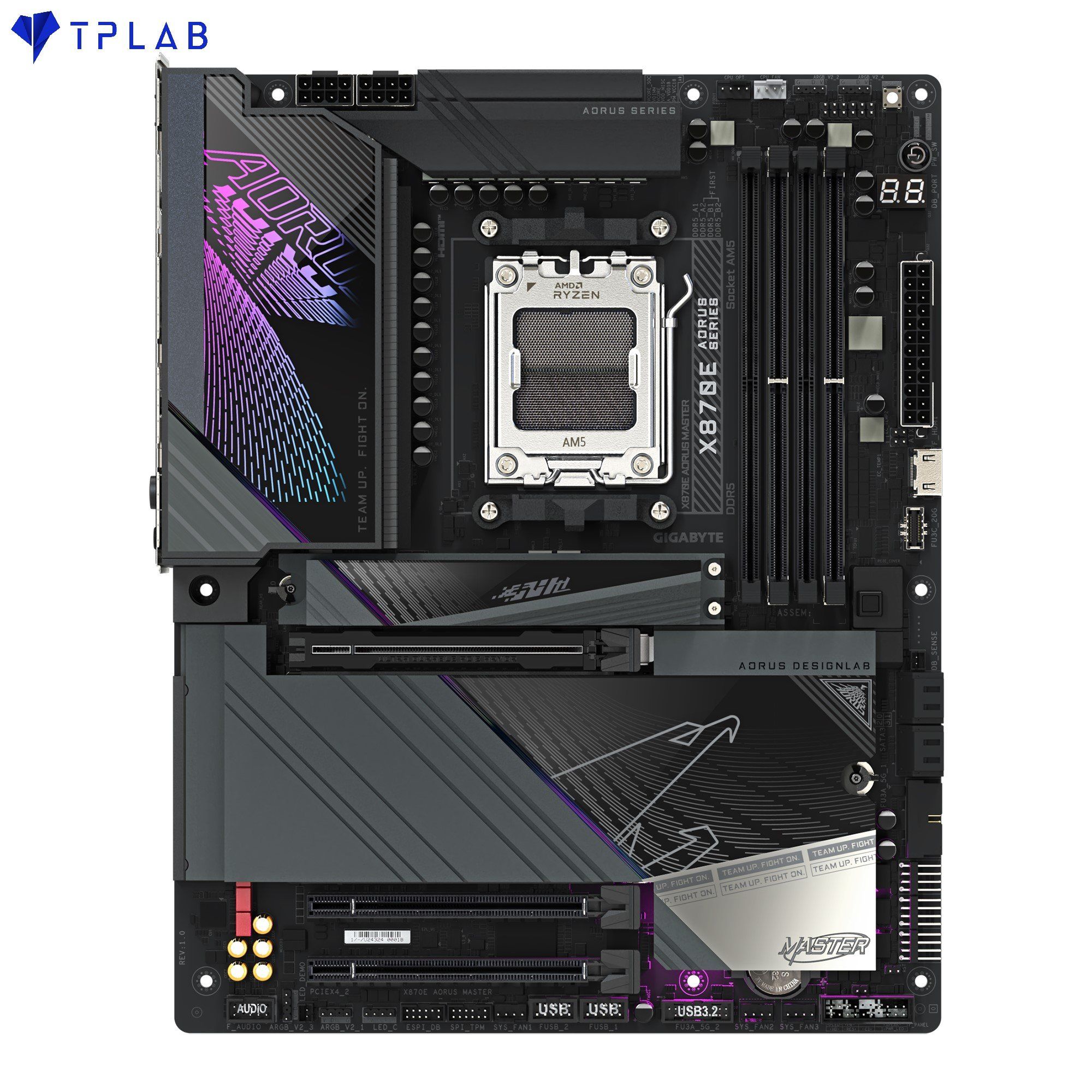

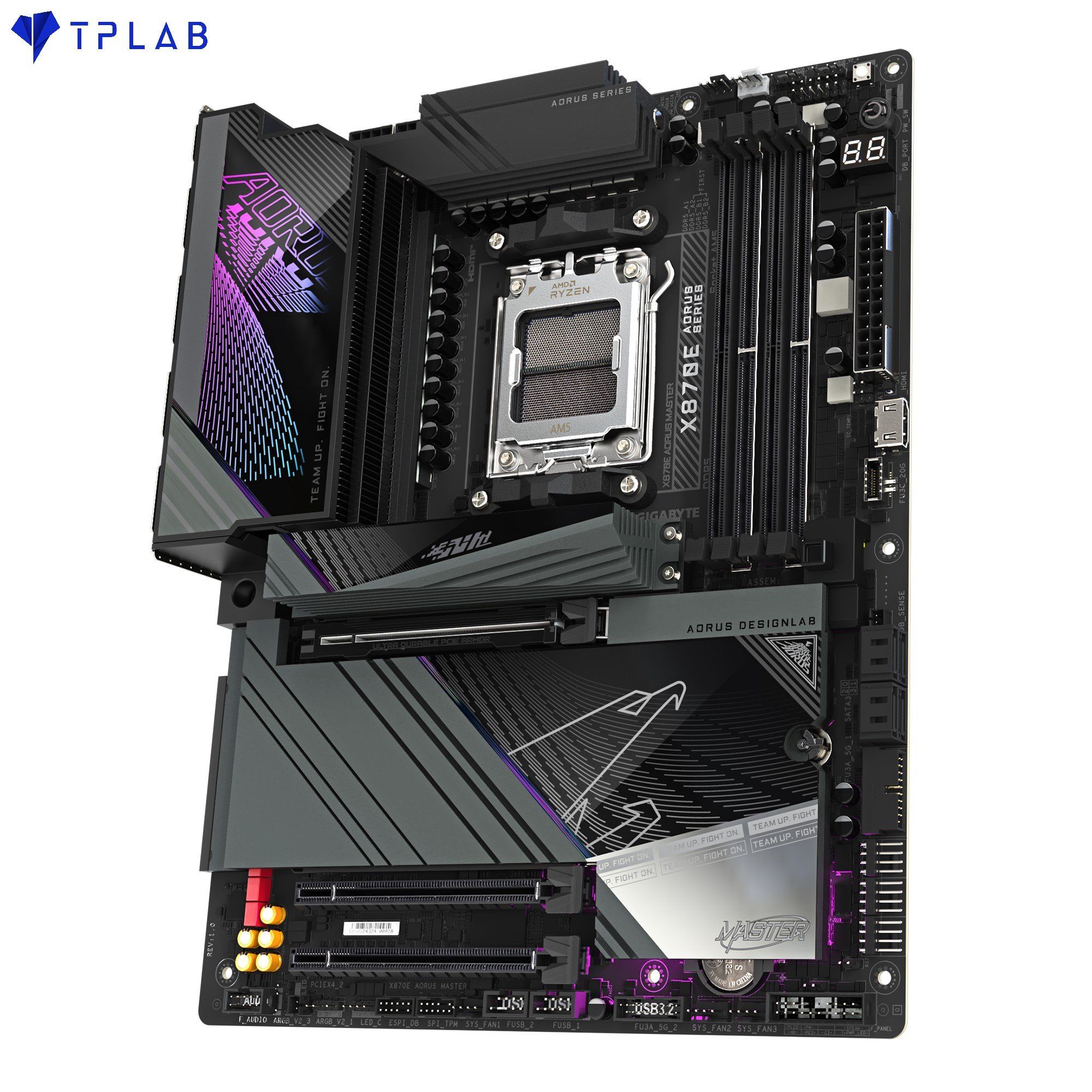

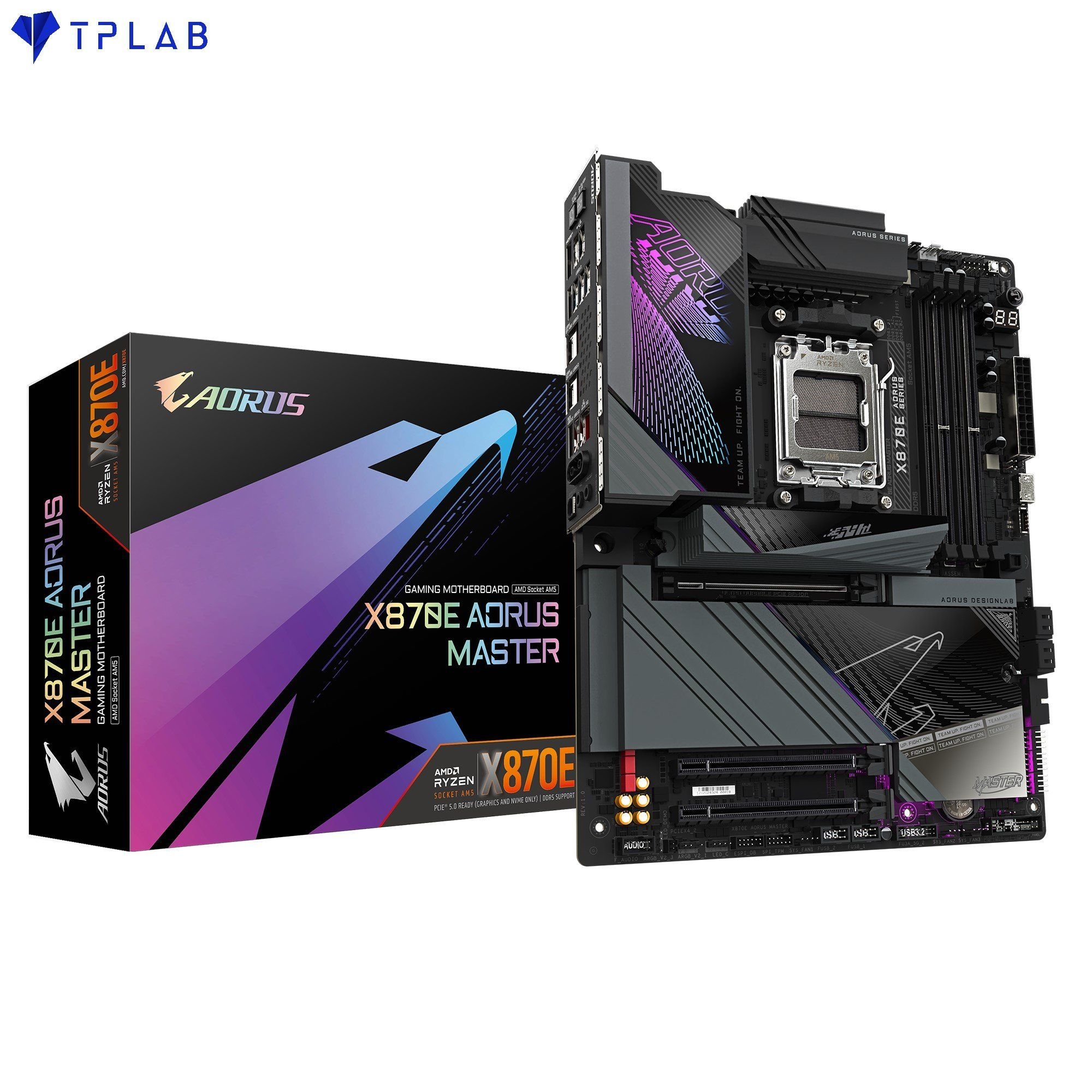

Gigabyte X870E AORUS MASTER

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

13,390,000₫
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

  • CPU

    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)

  • Chipset

    AMD X870E

  • Memory

    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Onboard Graphics

    Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
    - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

    * Support for DisplayPort 1.4 version and HDR.


    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version.


    (Graphics specifications may vary depending on CPU support.)
  • Audio

    Realtek® ALC1220 CODEC

    * The back panel line out jack supports DSD audio.


    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN

    Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Qualcomm® Wi-Fi 7 QCNCM865
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on inpidual country's regulations.

  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
    The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.


    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.


    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB

    CPU+ASMedia USB4® controller:
    - 2 x USB4® USB Type-C® ports on the back panel
    CPU:
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub:
    - 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    4 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x HDMI port (Note)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    Voltage Measurement Points
    (Note) Actual support may vary by CPU.

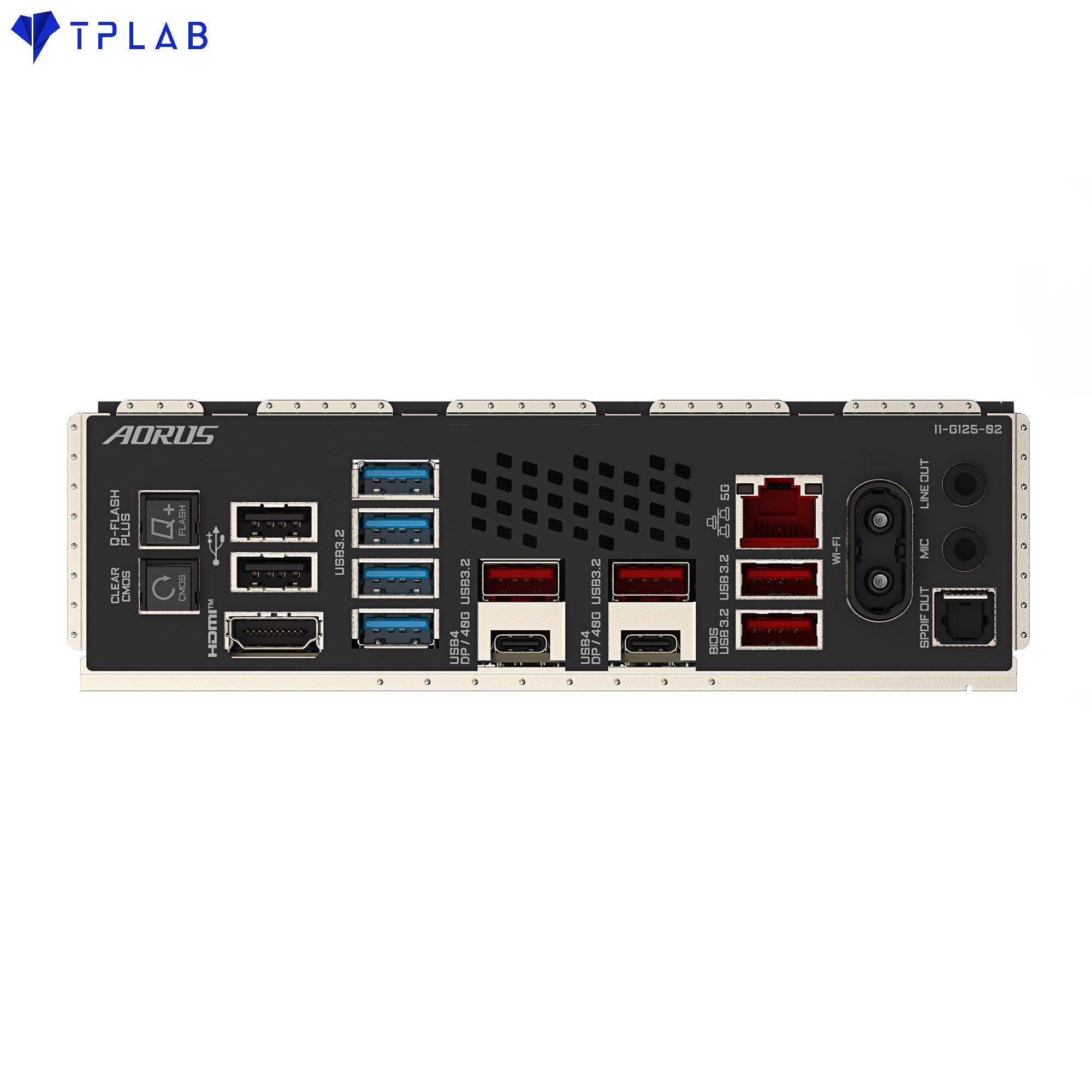

  • Back Panel Connectors

    1 x Q-Flash Plus button
    1 x Clear CMOS button
    1 x HDMI port (Note)
    2 x USB4® USB Type-C® ports (DisplayPorts (Note))
    4 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    2 x antenna connectors (2T2R)
    2 x audio jacks
    1 x optical S/PDIF Out connector
    (Note) Actual support may vary by CPU.

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


    Noise detection
  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit

  • Form Factor

    ATX Form Factor; 30.5cm x 24.4cm
