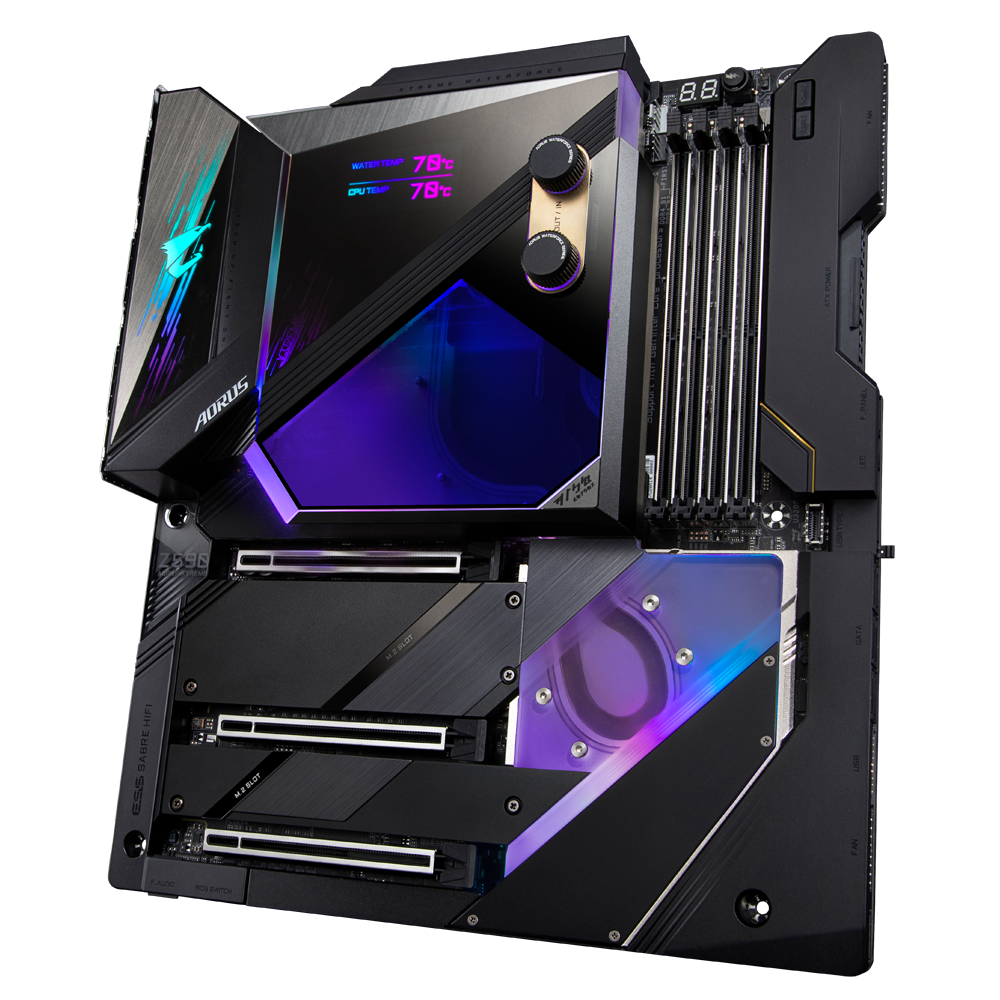

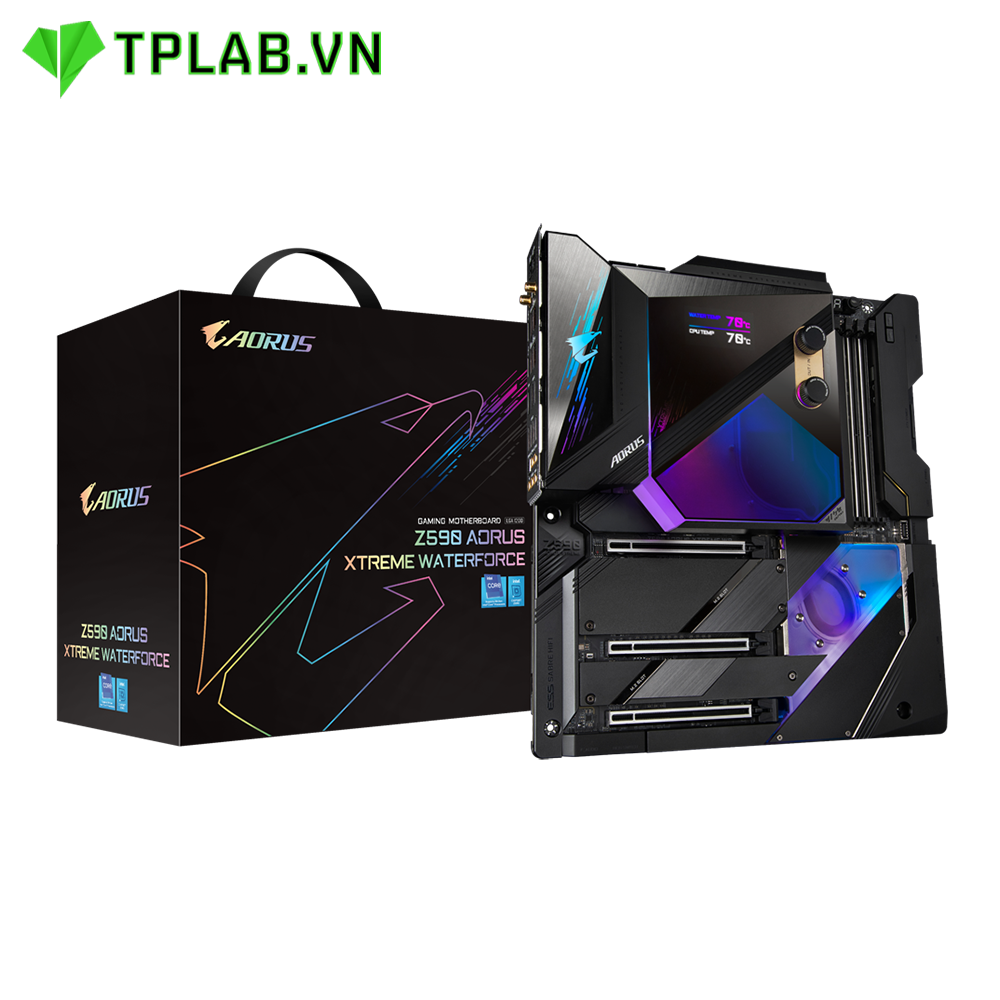

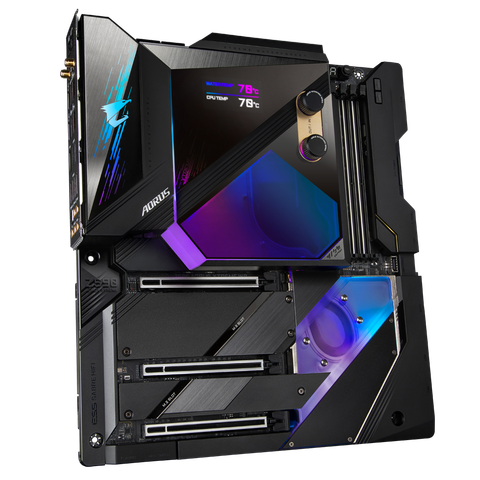

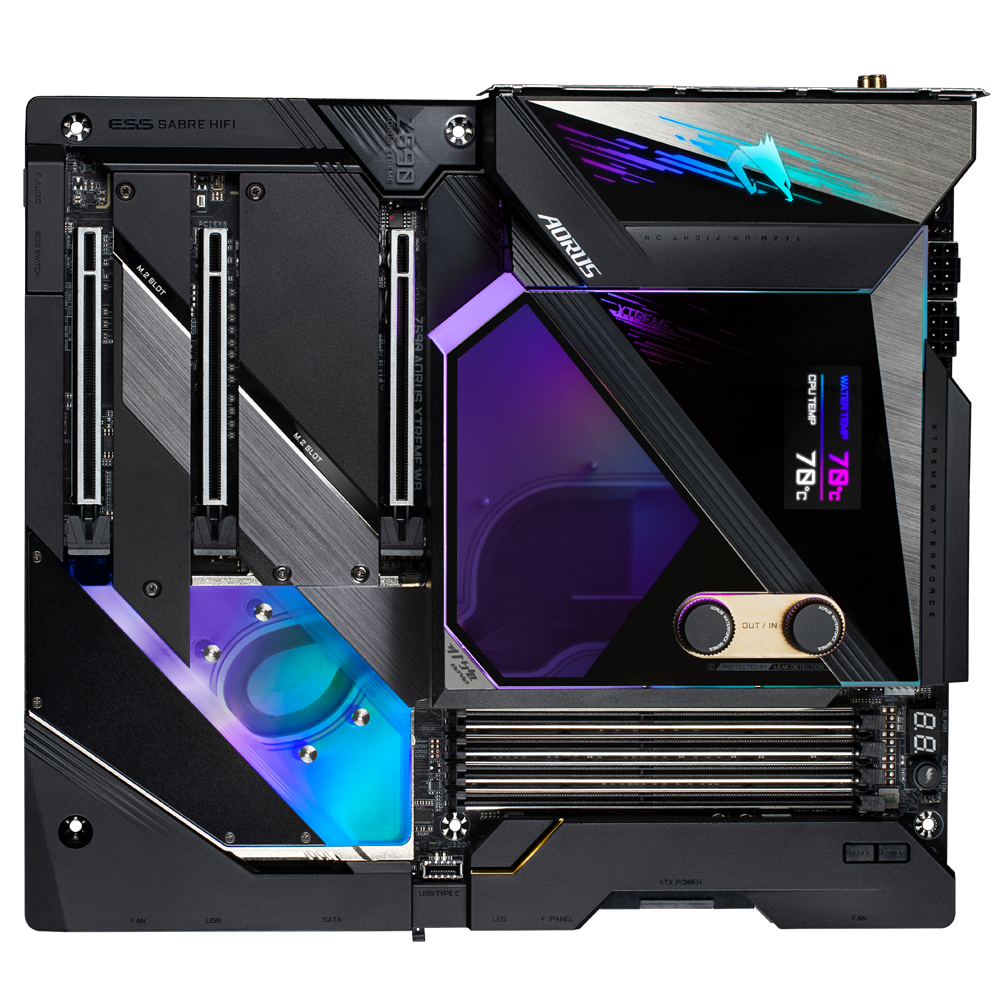

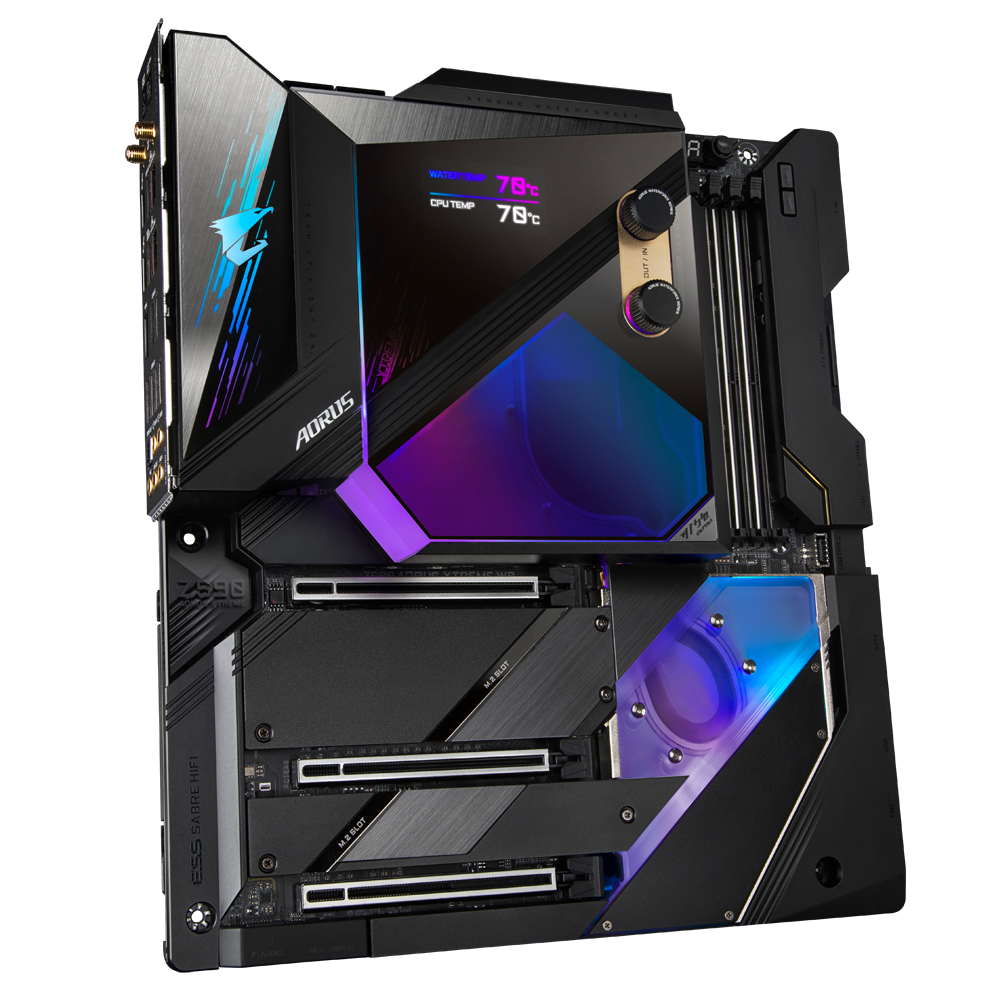

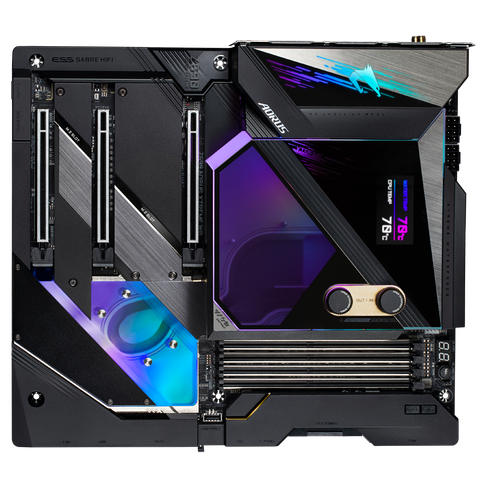

GIGABYTE Z590 AORUS XTREME WATERFORCE

CPU:

• 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
• 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors*
  * Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
• L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

Bộ nhớ:

• 11th Generation Intel^® Core™ i9/i7/i5 processors:
  Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• 10th Generation Intel^® Core™ i9/i7 processors
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Đồ họa tích hợp:

• 2 x Intel^® Thunderbolt™ 4 connectors (USB Type-C^® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output)
  * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
  * Support for DisplayPort 1.4 version, HDCP 2.3

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.

Âm thanh:

• Realtek^® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier
  * The front panel line out jack supports DSD audio.
• Support for DTS:X^® Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN:

• 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
• 1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Wireless Communication module:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.

Khe cắm mở rộng:

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
  * Supported by 11th Generation processors only.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Giao diện lưu trữ:

• 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
  * Supported by 11th Generation processors only.

• 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors
  * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB:

• 2 x USB Type-C^® ports on the back panel, with USB 3.2 Gen 2 support

• 1 x USB Type-C^® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

• 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header

• 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable)

Kết nối I/O bên trong:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 1 x water cooling kit CPU LED header (LED_CPU)
• 1 x water cooling kit Chipset LED header (LED_PCH)
• 6 x system fan headers
• 2 x system fan/water cooling pump headers
• 1 x noise detection header
• 2 x integrated extension cable headers for addressable and RGB LED strips
• 6 x SATA 6Gb/s connectors
• 3 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 headers
• 2 x temperature sensor headers
• 1 x power button
• 1 x reset button
• 1 x OC Ignition button
• 2 x BIOS switches
• Voltage Measurement Points

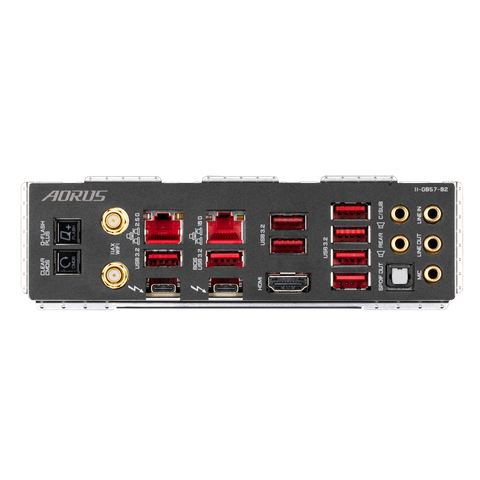

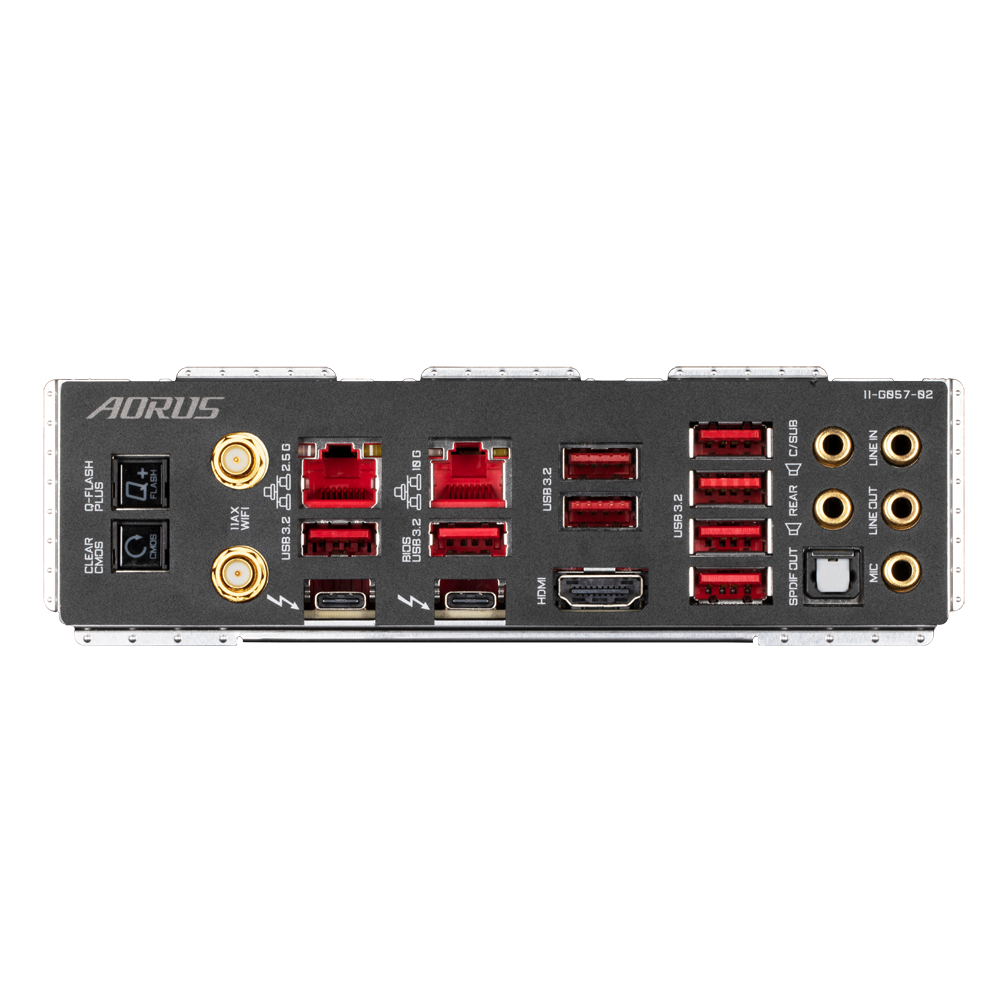

Kết nối bảng phía sau:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 2 x SMA antenna connectors (2T2R)
• 2 x Thunderbolt™ 4 connectors (USB Type-C^® port, with USB 3.2 Gen 2 support)
• 8 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x HDMI port
• 2 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

Theo dõi phần cứng:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

BIOS:

• 2 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất:

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  RGB Fusion
  Smart Backup
  System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton^® Internet Security (OEM version)
• cFosSpeed
