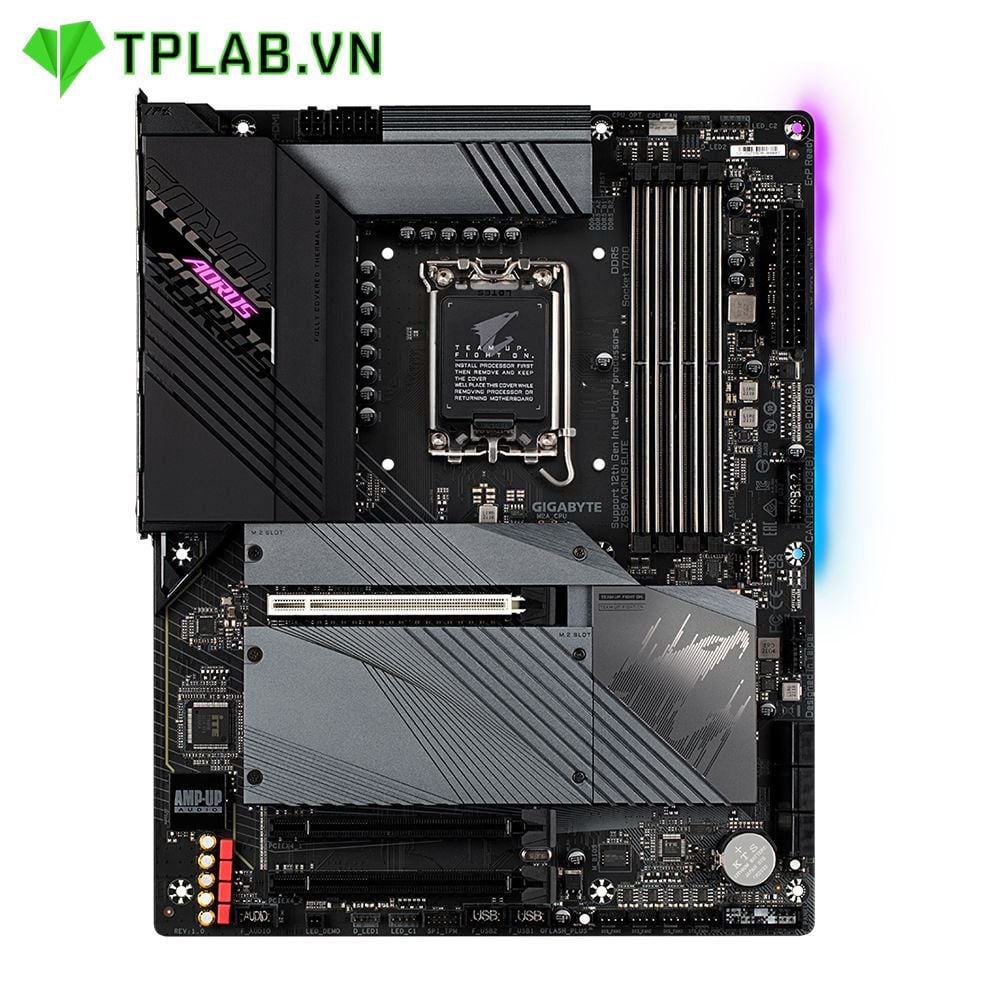

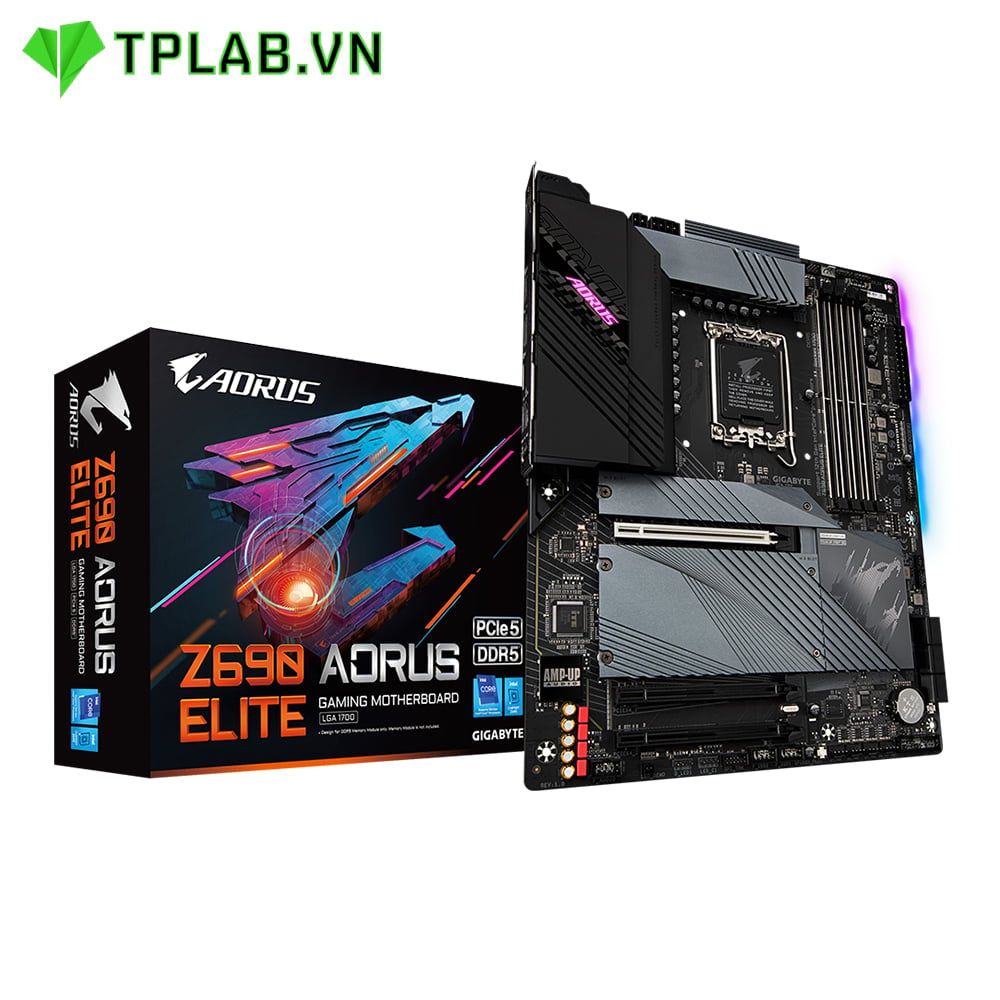

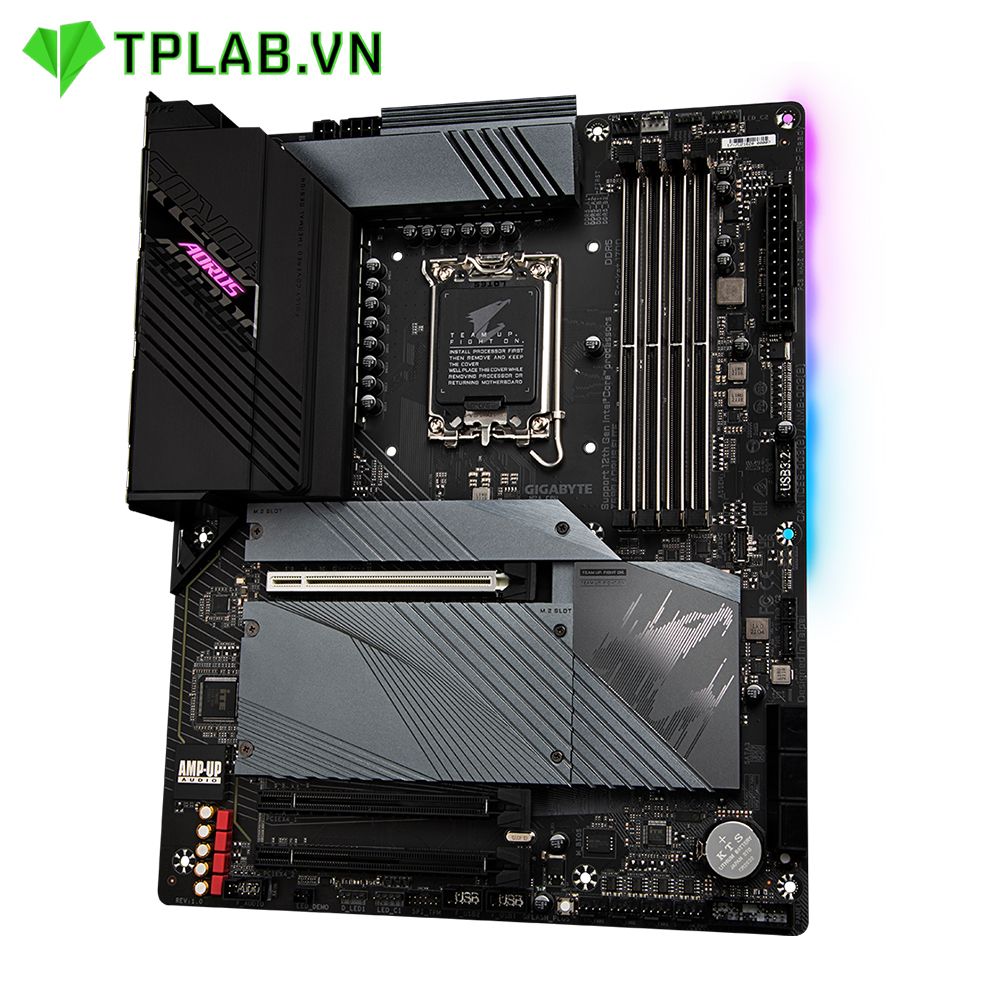

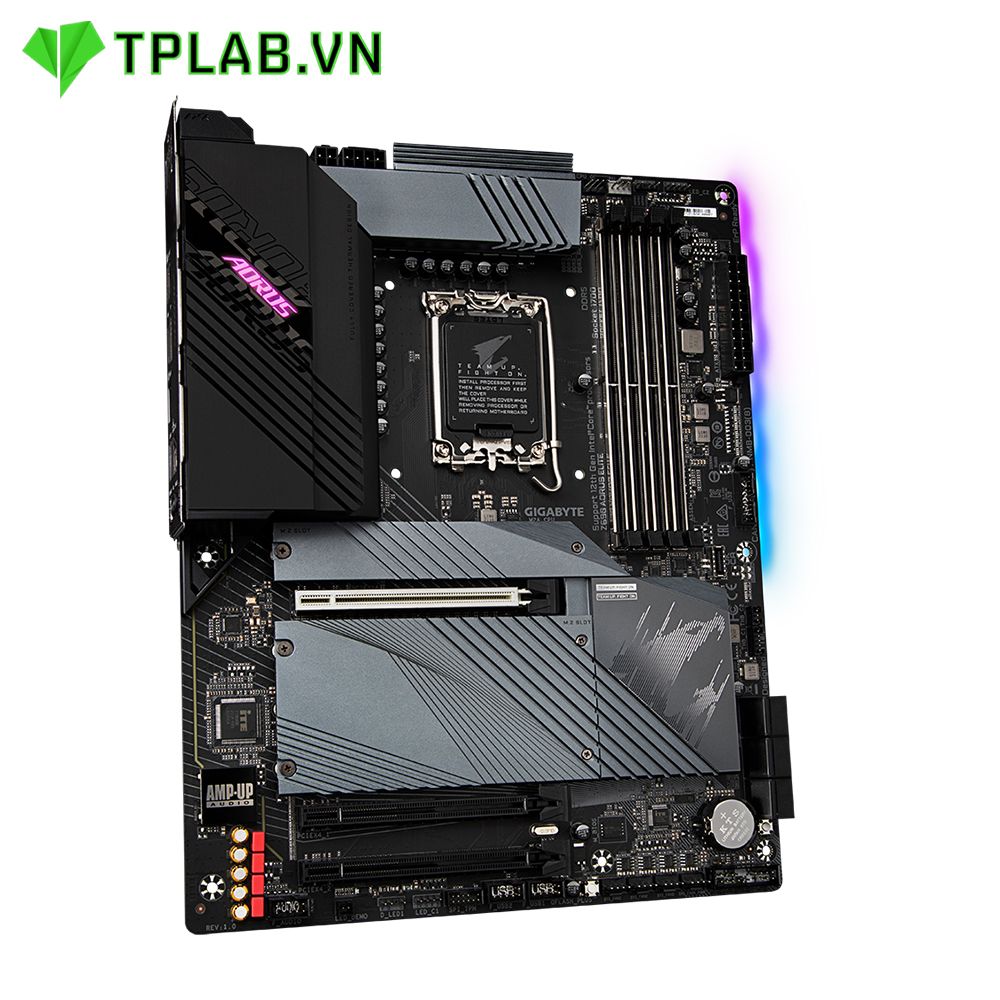

GIGABYTE Z690 AORUS ELITE DDR5

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard

Hãng sản xuất: GIGABYTE

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

7,650,000₫ 6,850,000₫ Tiết kiệm 10%
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

CPU
  1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z690 Express Chipset
Memory
  1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  1. Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2-channel analog output
  4. Support for S/PDIF Out
    7.1-channel digital signals
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage InterfaceCPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
  3. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USBChipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 4 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt™ add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x reset button
  20. 1 x Q-Flash Plus button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI port
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 2 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
