CPU | - LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
|
Chipset | - Intel® Z790 Express Chipset
|
Memory | - Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics | Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:- 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt ™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
Audio | - ESS ES9280AC DAC chip + 2 ESS ES9080 chips
- DTS® Sound Unbound™
- High Definition Audio
- 2-channel
- Support for S/PDIF Out
* The line out jack and the optical S/PDIF out connector can only be used one at a time.
|
LAN | - Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
- Intel® 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
|
Wireless Communication module | Intel® Killer™ Wi-Fi 6E AX1690- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
Expansion Slots | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
Storage Interface | CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | Chipset+Intel® Thunderbolt™ 4 Controller:- 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset:- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 2 Hub:- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 4 x system fan/water cooling pump headers
- 1 x noise detection header
- 2 x integrated extension cable headers for addressable and RGB LED strips
- 4 x SATA 6Gb/s connectors
- 5 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 1 x USB 2.0/1.1 header
- 2 x temperature sensor headers
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
|

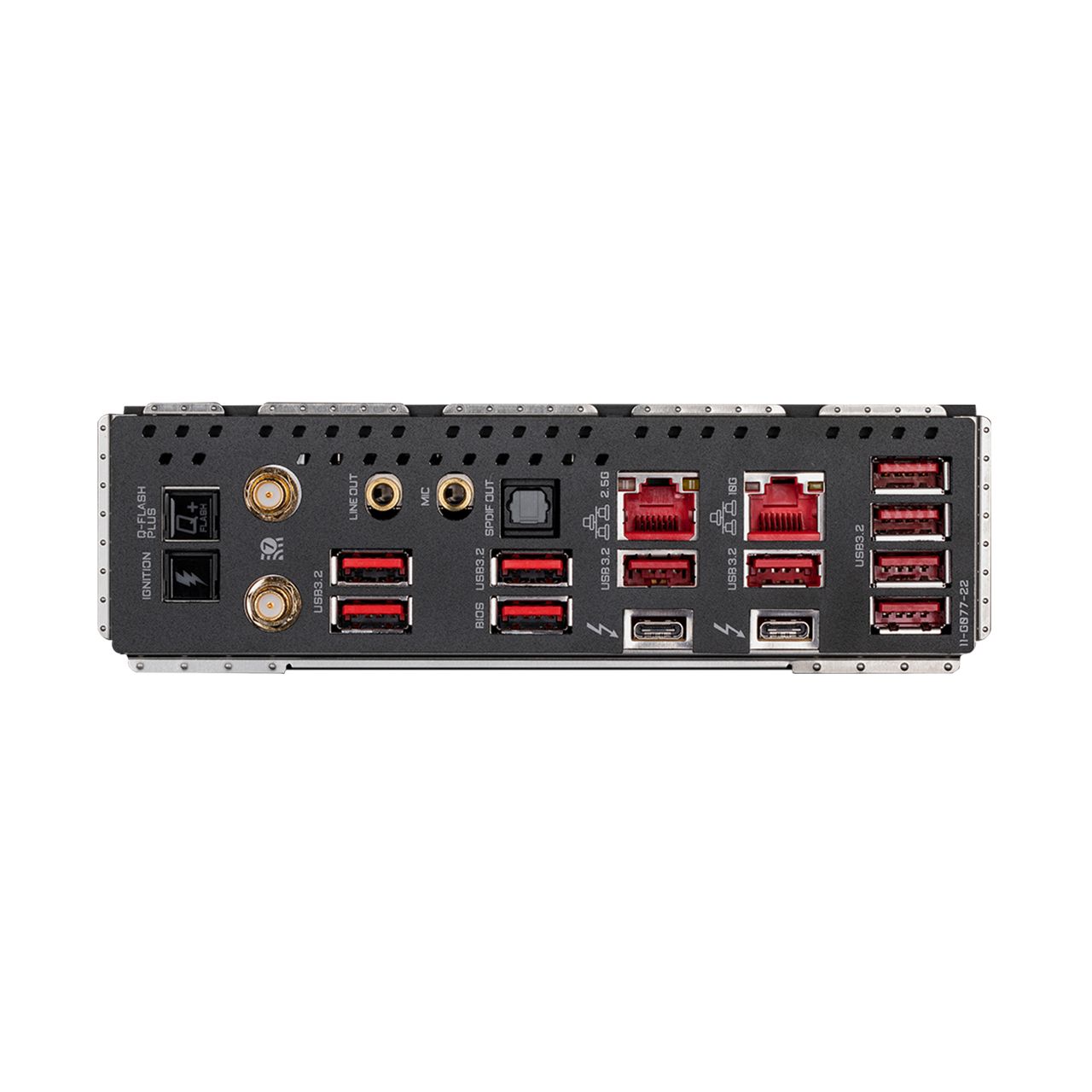

Back Panel Connectors | - 1 x Q-Flash Plus button
- 1 x OC Ignition button
- 2 x SMA antenna connectors (2T2R)
- 2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
- 10 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
* The mic in jack supports only mono microphone input
|
I/O Controller | - iTE® I/O Controller Chip
|
H/W Monitoring | - Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. - Noise detection
|
BIOS | - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features | - Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
|
Bundled Software | - Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
Operating System | - Support for Windows 11 64-bit
- Support for Windows 10 64-bit
|
Form Factor | - E-ATX Form Factor; 30.5cm x 28.5cm
|
