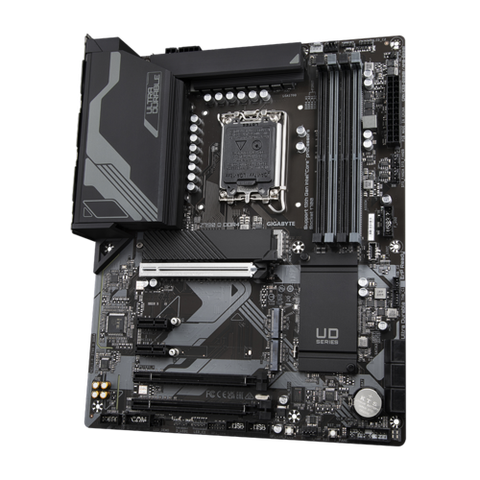

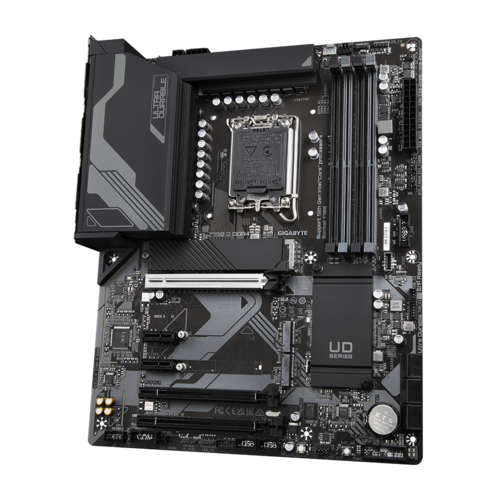

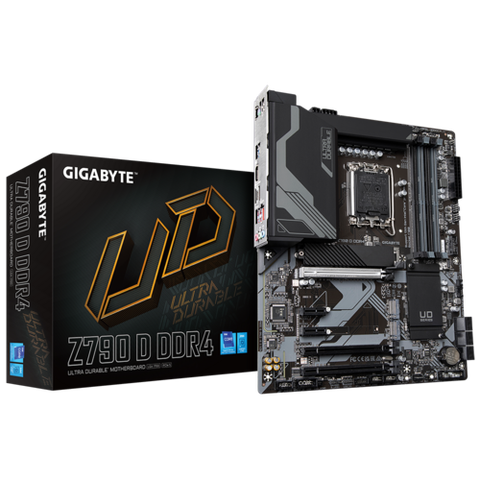

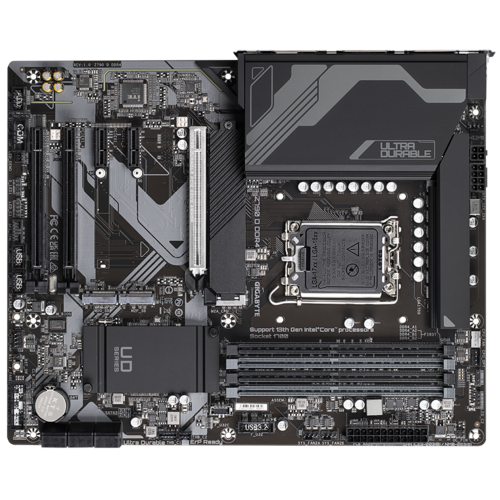

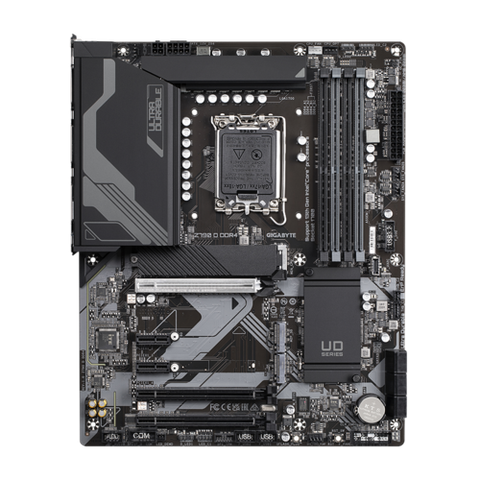

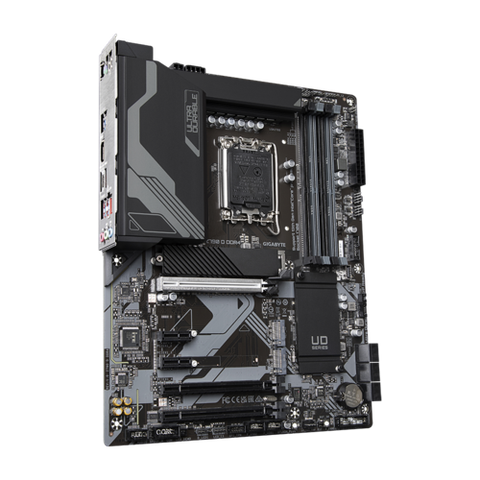

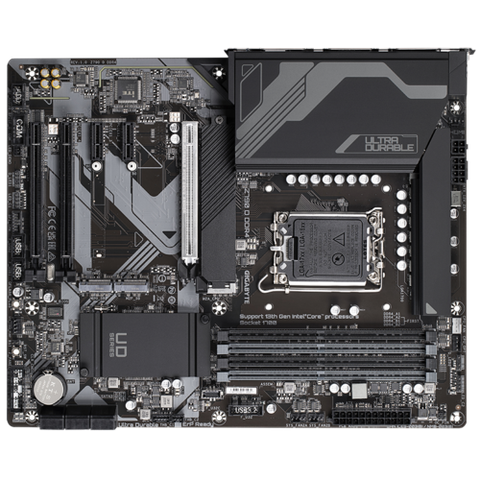

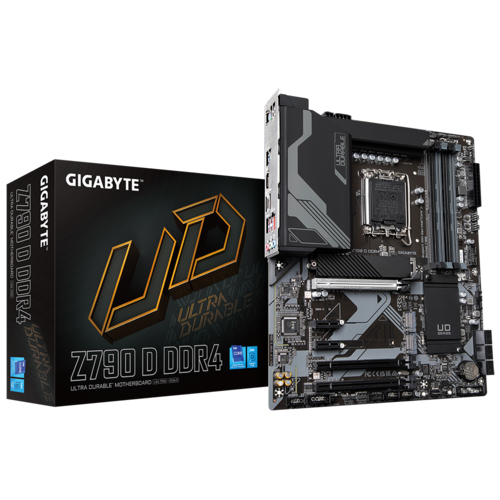

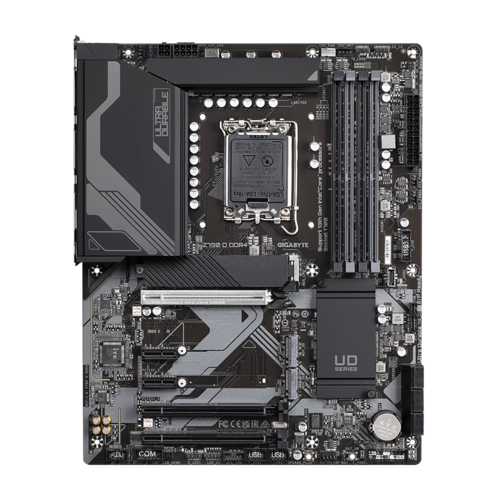

GIGABYTE Z790 D DDR4

GIGABYTE

 Z790 D

ATX

LGA1700

Z790

4 x DDR4

 Suport up to 5333Mhz (OC)

128GB

Dual channel

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4

 6 x SATA 6Gb/s

 3 x M.2 chuẩn PCIe 4.0 x4

Có

 RAID 0, 1, 5, 10

Realtek® Audio CODEC

2/4/5.1/7.1

Realtek® 2.5GbE LAN chip

2.5 Gbps/1 Gbps/100 Mbps

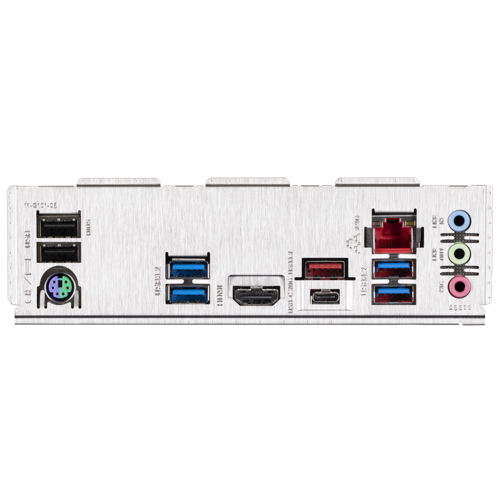

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x HDMI 2.0 port

1 x RJ-45 port

3 x audio jacks

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Không

 30.5cm x 24.4cm

24 pin
