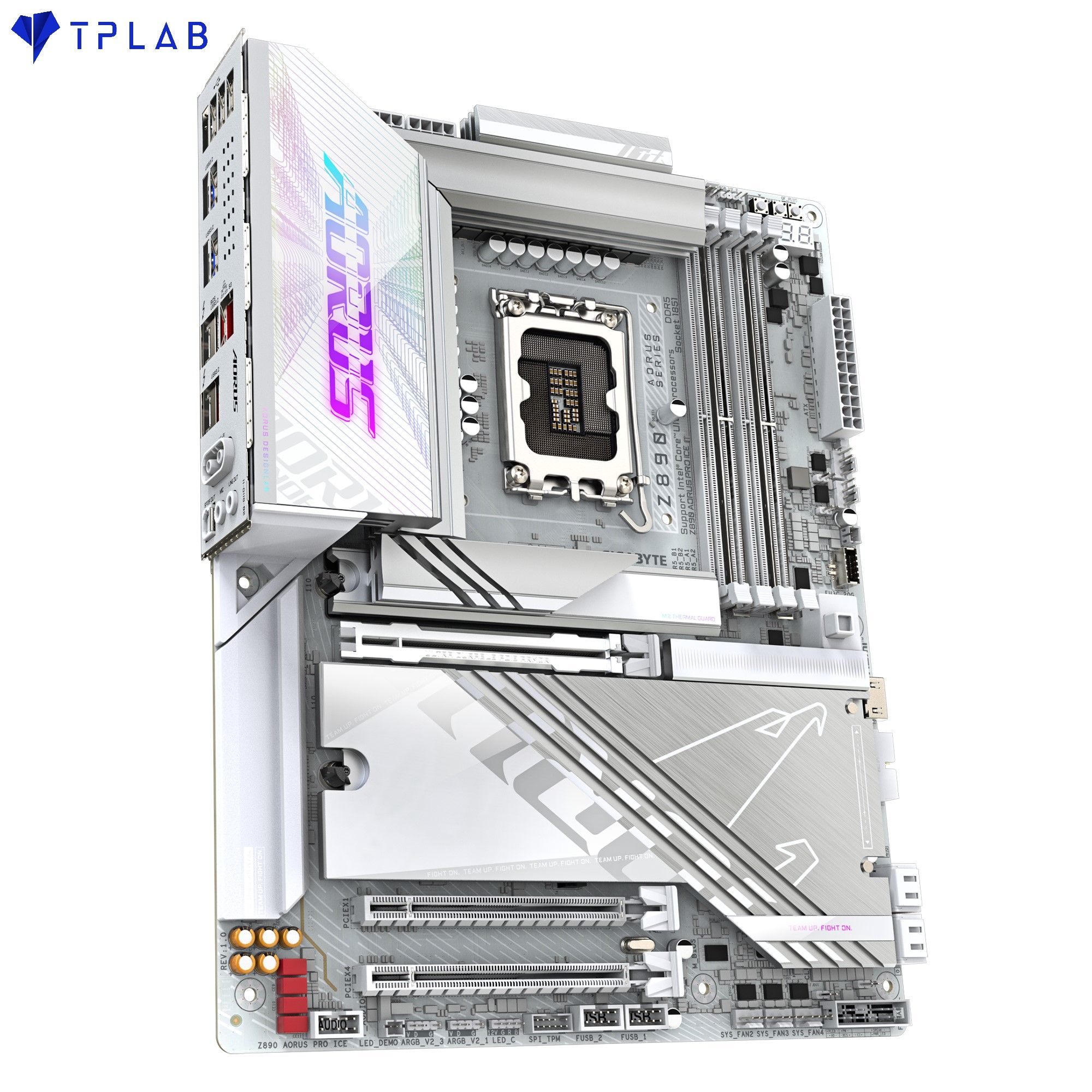

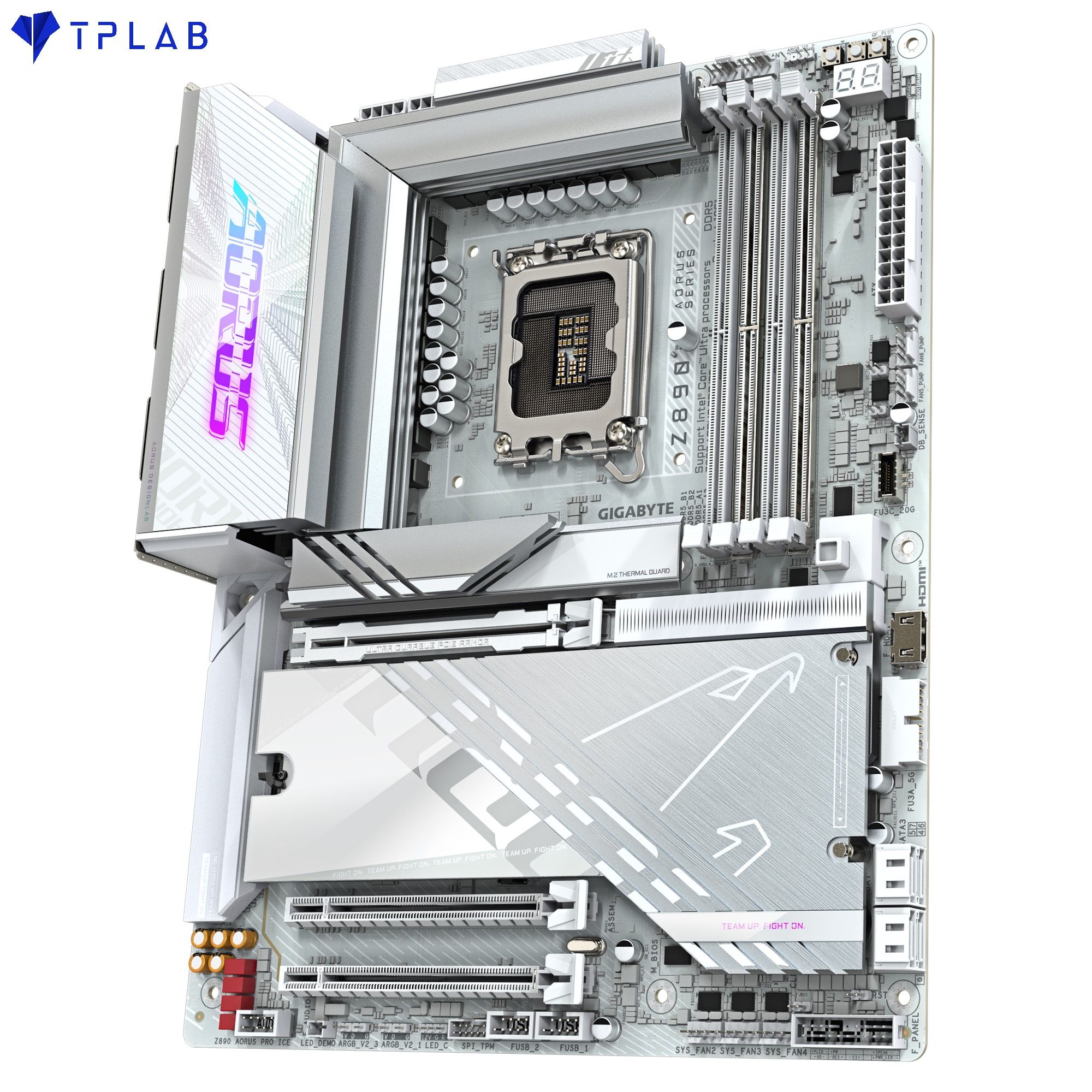

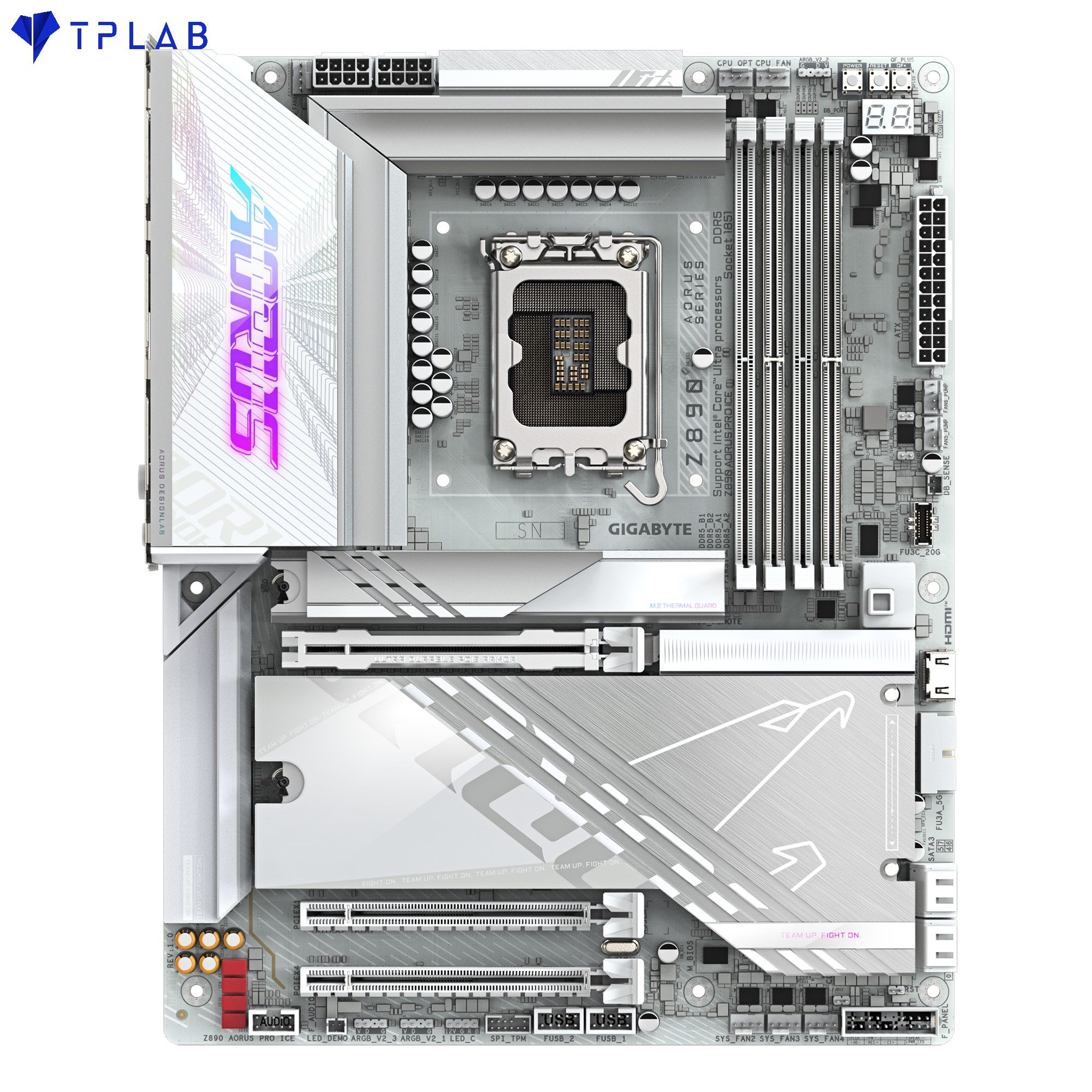

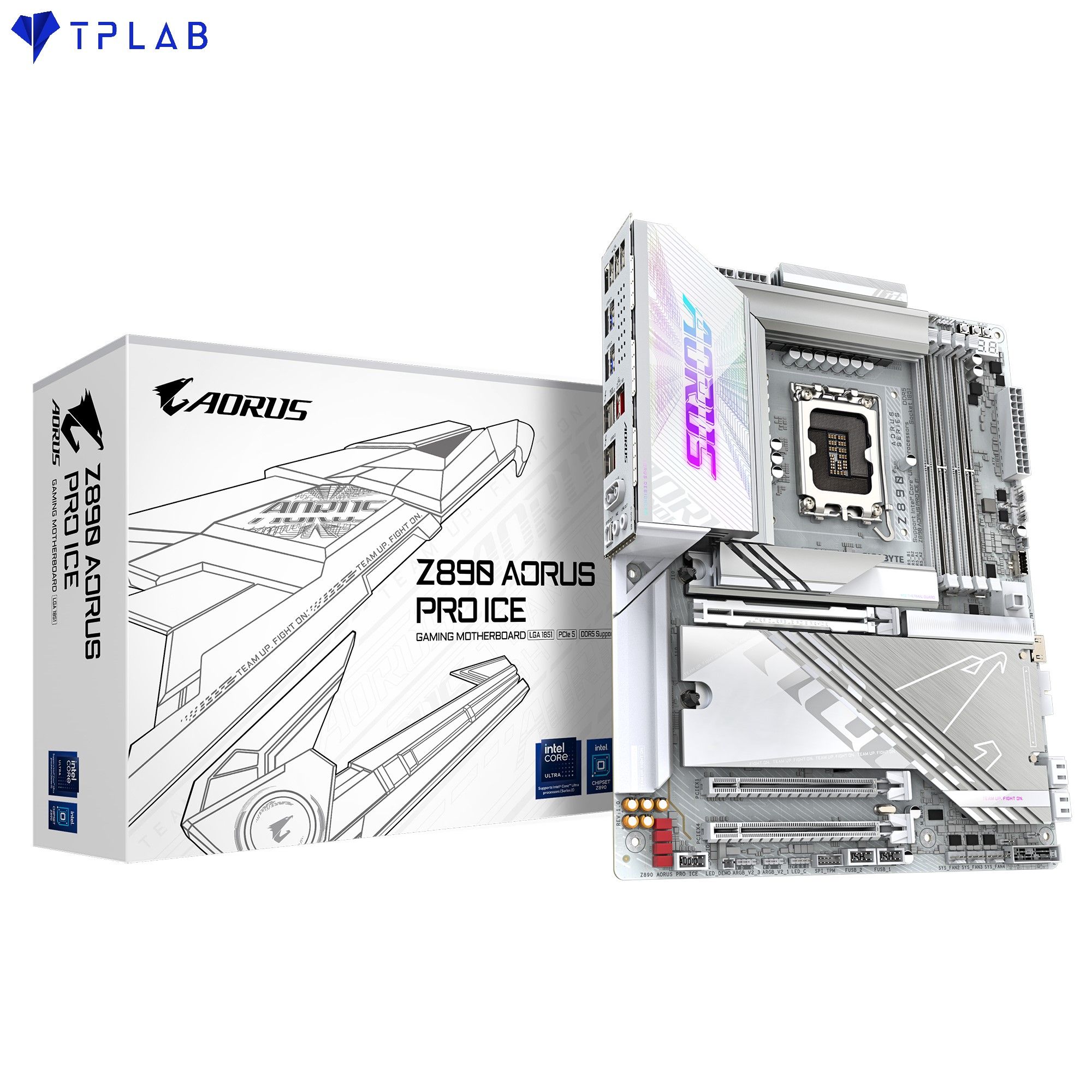

GIGABYTE Z890 AORUS PRO ICE

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: GIGABYTE
Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

13,200,000₫
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

  • CPU

    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.

  • Chipset

    Intel® Z890 Express Chipset

  • Memory

    Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
    When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
    When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version and HDCP 2.3


    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version.


    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Audio

    Realtek® ALC1220 CODEC

    * The back panel line out jack supports DSD audio.


    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN

    Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Intel® Wi-Fi 7 BE200
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

    ** Wi-Fi 7 channels on 6 GHz band availability depends on inpidual country's regulations.

  • Expansion Slots

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
  • Storage Interface

    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    - 2 x USB4® USB Type-C® ports on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+3 USB 2.0 Hubs:
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    5 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x HDMI port (Note)
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x Q-Flash Plus button
    1 x noise detection header
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper

    (Note) Actual support may vary by CPU.

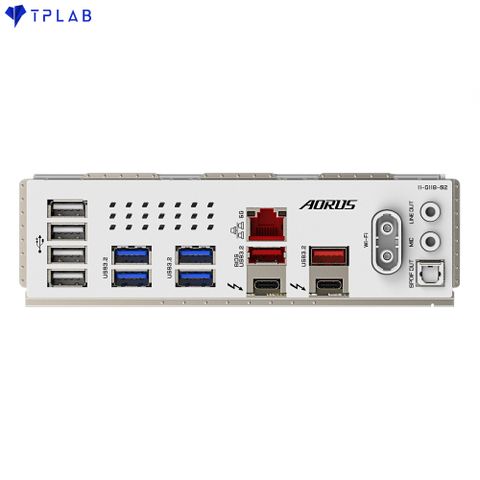

  • Back Panel Connectors

    4 x USB 2.0/1.1 ports
    2 x antenna connectors (2T2R)
    4 x USB 3.2 Gen 1 ports
    2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)
    2 x USB 3.2 Gen 2 Type-A ports (red)
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.


    Noise detection
  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit

  • Form Factor

    ATX Form Factor; 30.5cm x 24.4cm
