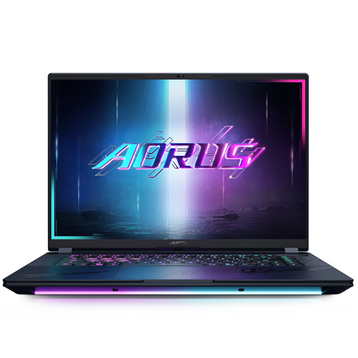

Laptop Gigabyte AORUS Master 16 AM6H

AORUS MASTER 16 BZH

AORUS MASTER 16 BYH

AORUS MASTER 16 BXH

OS

CPU

Video Graphics

Display

System Memory

Storage

Keyboard Type

I/O Port

Audio

Communications

Webcam

Security

Battery

Adapter

Dimensions

Weight

Color

Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.)
Windows 11 Home
UEFI Shell OS

Intel® Core™ Ultra 9 Processor 275HX (36MB cache, up to 5.4 GHz, 24 cores, 24 threads)

NVIDIA® GeForce RTX™ 5090 Laptop GPU
24GB GDDR7
175W Maximum Graphics Power with Dynamic Boost*
AI Boost : 1797 MHz (1597 MHz Boost Clock + 200 MHz OC)*


*May vary by scenario

16" 16:10
OLED WQXGA (2560×1600) 240Hz, 1ms, DCIP-3 100%, 500nits (peak), 1,000,000:1

NVIDIA® G-SYNC®
NVIDIA® Advanced Optimus
VESA DisplayHDR True Black 500
VESA ClearMR 10000
Pantone® Validated
TÜV Rheinland Low Blue Light
Dolby Vision®

Up to 64GB DDR5 5600MHz

* 2x SO-DIMM sockets for expansion

1x PCIe Gen5 M.2 slot
1x PCIe Gen4x4 M.2 slots
Up to 4TB PCIe NVMe™ M.2 SSD


*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty

3-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel (Support N-Key)

Left Side:

1 x DC in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™5 (support USB4, DisplayPort™ 2.1 and Power Delivery 3.0)

Right Side:

1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™4 (support USB4, DisplayPort™ 1.4 and Power Delivery 3.0)
1 x MicroSD (UHS-II)
1 x Audio Jack support mic / headphone combo

4x 2W speakers
Microphone
Dolby Atmos®
Smart Amp Technology

WIFI 7 (802.11be 2x2)
LAN: 1G
Bluetooth v5.4

FHD (1080p) IR Webcam
Build-in array Microphone
Support Windows Hello Face Authentication

Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)

Li Polymer 99Wh

330W AC Adapter

357 x 254 x 23~29.9 mm


*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

~2.5 kg


*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

Dark Tide

Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.)
Windows 11 Home
UEFI Shell OS

Intel® Core™ Ultra 9 Processor 275HX (36MB cache, up to 5.4 GHz, 24 cores, 24 threads)

NVIDIA® GeForce RTX™ 5080 Laptop GPU
16GB GDDR7
175W Maximum Graphics Power with Dynamic Boost*
AI Boost : 1902 MHz (1702 MHz Boost Clock + 200 MHz OC)*


*May vary by scenario

16" 16:10
OLED WQXGA (2560×1600) 240Hz, 1ms, DCIP-3 100%, 500nits (peak), 1,000,000:1

NVIDIA® G-SYNC®
NVIDIA® Advanced Optimus
VESA DisplayHDR True Black 500
VESA ClearMR 10000
Pantone® Validated
TÜV Rheinland Low Blue Light
Dolby Vision®

Up to 64GB DDR5 5600MHz

* 2x SO-DIMM sockets for expansion

1x PCIe Gen5 M.2 slot
1x PCIe Gen4x4 M.2 slots
Up to 4TB PCIe NVMe™ M.2 SSD


*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty

3-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel (Support N-Key)

Left Side:

1 x DC in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™5 (support USB4, DisplayPort™ 2.1 and Power Delivery 3.0)

Right Side:

1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™4 (support USB4, DisplayPort™ 1.4 and Power Delivery 3.0)
1 x MicroSD (UHS-II)
1 x Audio Jack support mic / headphone combo

4x 2W speakers
Microphone
Dolby Atmos®
Smart Amp Technology

WIFI 7 (802.11be 2x2)
LAN: 1G
Bluetooth v5.4

FHD (1080p) IR Webcam
Build-in array Microphone
Support Windows Hello Face Authentication

Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)

Li Polymer 99Wh

330W AC Adapter

357 x 254 x 23~29.9 mm


*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

~2.5 kg


*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

Dark Tide

Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.)
Windows 11 Home
UEFI Shell OS

Intel® Core™ Ultra 9 Processor 275HX (36MB cache, up to 5.4 GHz, 24 cores, 24 threads)

NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU
12GB GDDR7
140W Maximum Graphics Power with Dynamic Boost*
AI Boost : 1962 MHz (1762 MHz Boost Clock + 200 MHz OC)*


*May vary by scenario

16" 16:10
OLED WQXGA (2560×1600) 240Hz, 1ms, DCIP-3 100%, 500nits (peak), 1,000,000:1

NVIDIA® G-SYNC®
NVIDIA® Advanced Optimus
VESA DisplayHDR True Black 500
VESA ClearMR 10000
Pantone® Validated
TÜV Rheinland Low Blue Light
Dolby Vision®

Up to 64GB DDR5 5600MHz

* 2x SO-DIMM sockets for expansion

1x PCIe Gen5 M.2 slot
1x PCIe Gen4x4 M.2 slots
Up to 4TB PCIe NVMe™ M.2 SSD


*The storage capacity may differ by country and region. Please contact your local dealers or retailers for the latest product information.
**If there is any abnormality that cannot be attributed to Gigabyte/AORUS during the warranty period, it is not covered by the warranty. More info:https://member.aorus.com/global/productwarranty

3-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel (Support N-Key)

Left Side:

1 x DC in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™5 (support USB4, DisplayPort™ 2.1 and Power Delivery 3.0)

Right Side:

1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt™4 (support USB4, DisplayPort™ 1.4 and Power Delivery 3.0)
1 x MicroSD (UHS-II)
1 x Audio Jack support mic / headphone combo

4x 2W speakers
Microphone
Dolby Atmos®
Smart Amp Technology

WIFI 7 (802.11be 2x2)
LAN: 1G
Bluetooth v5.4

FHD (1080p) IR Webcam
Build-in array Microphone
Support Windows Hello Face Authentication

Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)

Li Polymer 99Wh

330W AC Adapter

357 x 254 x 23~29.9 mm


*The dimensions of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

~2.5 kg


*The weight of the laptop may vary according to the configuration, manufacturing process and measurement method, please refer to the actual situation.

Dark Tide
