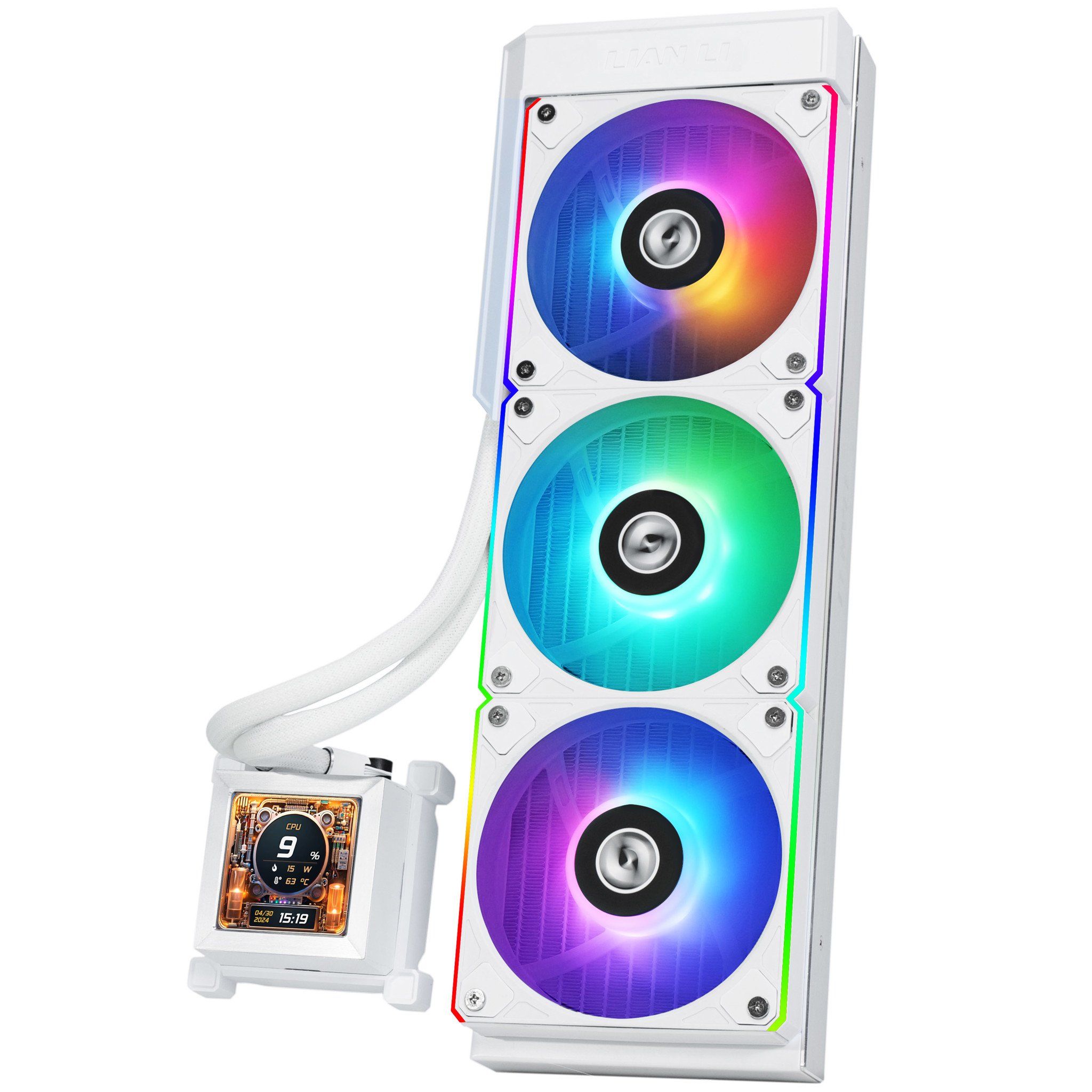

Tản Nhiệt Nước Lian Li HydroShift LCD 360 RGB Fan

Unleash Power, Elevate Style

Experience a PC aesthetic revolution with
HydroShift AIO’s side-mounted coolant pathway,
integrating cooling tubes with the radiator for a sleek, flawless look.

Side-Mounted design

2.88”IPS LCD

Pre-Installed Fans

High Performance

3 Verions

Dual Direction Shrouds

L-Connect 3

6-Year Warranty

AVAILABLE IN THREE VERSIONS AND DUAL COLORS

Choose from the high-performance 360S, the vibrant 360R,
or the visually stunning 360TL, each available in black or white.

360S

 white 360S

black 360S

Pre-installed three 28mm fans that can reach a maximum speed of 2500 RPM, ensuring quiet operation without compromising high performance. Additionally, this is compatible with the ARGB side light strips of the P28 UNI Fan.

360R

 white 360R

black 360R

This version features more vibrant ARGB fans with impressive airflow performance, reaching a maximum speed of 2400 RPM.

360TL

 white 360TL

black 360TL

For users who prioritize aesthetics, the 360TL version with modular TL fans is the option. This model not only boasts an eye-catching design with a side infinity mirror and dual ARGB light strips but also excels in performance thanks to its LCP blades, achieving a maximum speed of 2600 RPM. Additionally, the included controller allows for seamless connection with TL LCD fans.

SIDE-MOUNTED DESIGN

The HydroShift AIO features an innovative side-mounted design for its cooling tubes, which are snugly attached to the side of the radiator. Combined with several thoughtful design elements, this ensures a clean and streamlined appearance for the entire cooling setup once installed.

Note: The Hydroshift AIO is designed to achieve optimal performance when the tubes on the pump are oriented upwards.

Pre-Installed Mounting Brackets

Fixed brackets on the radiator ensure the coolant tubes stay securely in place, with an additional bracket included for cases with limited top-mount space.

Note: Ensure there is a width of 140mm x 2 and a compatibility length of 403mm for the radiator before installation to accommodate the extra space required for the radiator and cooling tubes.

Check out the compatibility with LIAN LI cases

Server-Grade Ribbed Tubes

These highly durable and flexible tubes allow tight bends without compromising internal diameter or flow rate.

Cable Clips

Used to organize the cooling tubes and cables extending from the pump, ensuring a smooth and cohesive overall appearance.

Pump cover

Used to conceal the pump bracket, maintaining a sleek and clean aesthetic throughout.

Dual Direction L-Shaped Shrouds

Customizable for either side of the radiator to maintain a consistent and stylish appearance.

MINIATURE YET MIGHTY

HydroShift AIO delivers near-identical performance to the GA II Performance while boasting a significantly reduced size. The new design also eliminates the water isolation chamber, reducing the size of the water chamber.

HydroShift AIO 360S

GA II Performance

Compared to the GA II LCD that uses Asetek’s 8th Gen solution, the HydroShift AIO is quieter and more efficient. Our tests indicate that when benchmarking the Intel® Core™ i9 processor 14900K at 280W, the CPU temperature for the HydroShift AIO is reduced by 2.5°C compared to the GA II LCD. At the same time, acoustic noise is lowered by 3dbA.

ACOUSTIC NOISE
3 dBA ↓

CPU TEMPERATURE
2.5°c ↓

ENHANCED DISPLAY

Featuring a 480×480 resolution, 500 nits brightness, and 24-bit full color, customizable via L-Connect 3.

• 2.88”LCD Screen

• 480×480 Resolution

• 500 nits Brightness

• IPS Type Display

• 24-bit Full Color

Real-time monitoring

The real-time monitoring feature displays load, temperature, frequency, and other CPU/GPU info, with an adjustable layout. The number of sensors has increased from 2 to 4 compared to the GA II LCD version.

Dynamic effects

Once the monitoring information layout is set, dynamic effects can be added for enhancement. The intensity and speed of these effects can be freely adjusted, or they can be set to change in response to the monitored hardware information.

Captured screenshots or recorded videos

Capture and display images with the screenshot feature. The screen recording function lets you loop selected video parts, which can also serve as backgrounds for hardware monitoring info.

New theme

The HydroShift AIO release brings L-Connect 3 updates with multiple themes like Atmosphere, Planet City, and Steampunk, also compatible with the GA II LCD series. These themes offer unique visuals and preset layouts for hardware monitoring.

OPTIMIZED CABLE MANAGEMENT

Compared to previous AIO products, the HydroShift AIO has optimized its cable management.

The fan cables are integrated into the cooling tubes, simplifying the connection process.

The USB cable is now also integrated into the pump.

Note: It is not recommended to plug the 12V PWM Pump cable into the CPU OPT port. Please connect it to a CPU FAN or AIO PUMP header instead and set the port in BIOS to PWM mode.

6-YEAR WARRANTY

With a 6-year warranty, including the fans and the controller, and compensation for hardware damage due to leakage (non-manmade causes) within three years, HydroShift AIO prioritizes both performance and peace of mind.
