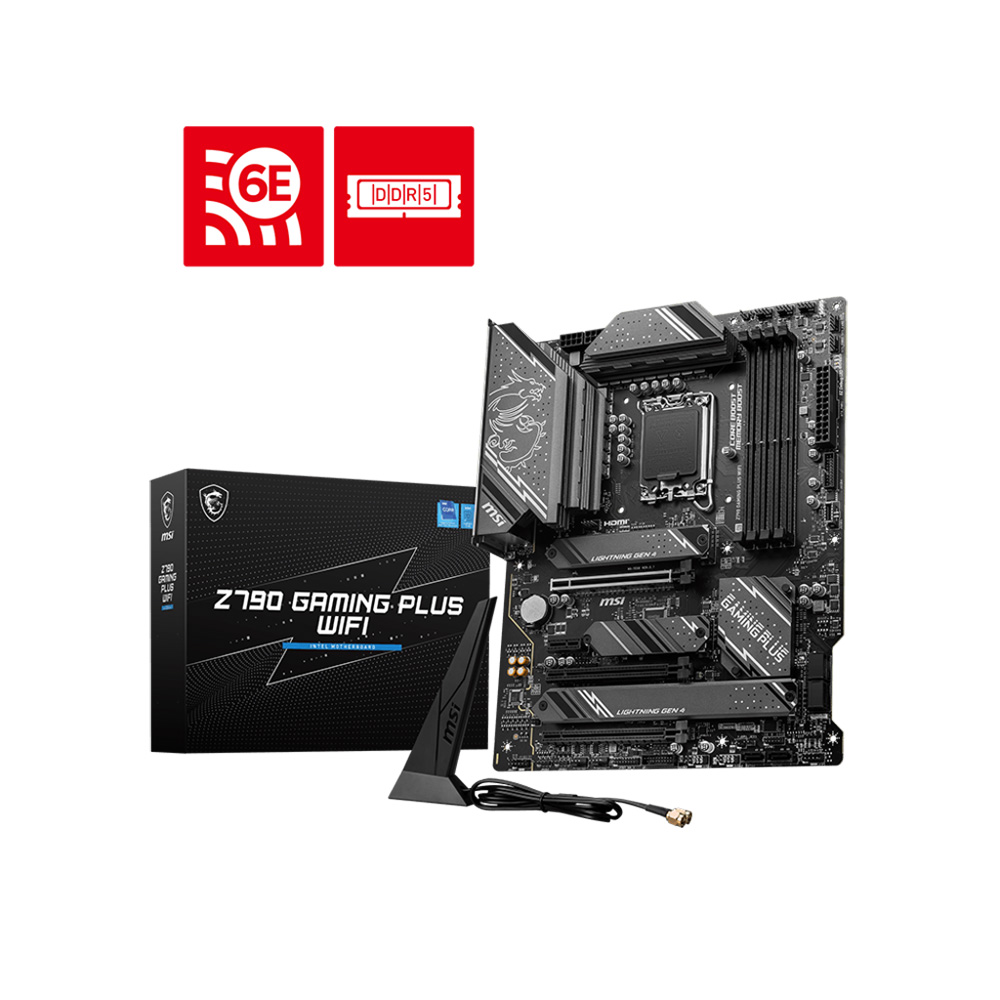

Mainboard MSI Z790 GAMING PLUS WIFI DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

Intel

Chipset

INTEL Z790

RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Khe cắm mở rộng

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

BACK PANEL

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. Audio Connectors
7. Flash BIOS Button
8. USB 2.0
9. HDMI™ 2.1 Port
10. USB 3.2 Gen 1 5Gbps Type-A
11. USB 3.2 Gen 2x2 20Gbps Type-C
12. USB 3.2 Gen 2 10Gbps Type-A

LAN / Wireless

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

ATX
243.84mmx304.8mm
