Picture/Display

LCD panel type

VA LCD

Backlight type

W-LED system

Panel Size

55 inch/139.7 cm

Colour gamut (min.)

DCI-P3 Coverage: 95%*

Colour gamut (typical)

NTSC 104%*, sRGB 125%*

HDR

DisplayHDR 1000 certified

Effective viewing area

1209.6 (H) x 680.4 (V) mm

Aspect ratio

16:9

Optimum resolution

HDMI: 3840 x 2160 @ 60 Hz, 2560 x 1440 @ 120 Hz; DP: 3840 x 2160 @ 120 Hz

Pixel Density

80 PPI

Response time (typical)

4 ms (Grey to Grey)

Low Input Lag

Yes

Brightness

Normal Mode: 750 cd/m2; HDR Mode: 1200  cd/m²

SmartContrast

Mega Infinity DCR

Contrast ratio (typical)

4000:1

Pixel pitch

0.315 x 0.315 mm

Viewing angle

• 178º (H)/178º (V)

• @ C/R > 10

Picture enhancement

SmartImage game

Display colours

Colour support 1.07 billion colours

Scanning Frequency

HDMI: 30–160 kHz (H)/40–60 Hz (V); DP: 30–270 kHz (H)/48–120 Hz (V)

SmartUniformity

95 ~ 103%

Delta E

< 2 (sRGB)

sRGB

Yes

Flicker-free

Yes

LowBlue Mode

Yes

Ambiglow

3 sided

AMD FreeSync™ technology

Premium Pro

Connectivity

Signal Input

• DisplayPort 1.4 x 1

• HDMI 2.0 x 3

USB:

USB-B x 1 (upstream), USB 3.2 x 4 (downstream with 2 fast charge B.C 1.2)

Sync Input

Separate Sync

Audio (In/Out)

Headphone out

Convenience

MultiView

• PIP/PBP mode

• 2 x devices

User convenience

• Power On/Off

• Menu/OK

• Input/Up

• Sound Mode/Down

• SmartImage game/Back

OSD Languages

• Brazil Portuguese

• Czech

• Dutch

• English

• Finnish

• French

• German

• Greek

• Hungarian

• Italian

• Japanese

• Korean

• Polish

• Portuguese

• Russian

• Spanish

• Simplified Chinese

• Swedish

• Turkish

• Traditional Chinese

• Ukrainian

Other convenience

• Kensington lock

• VESA mount (200 x 200 mm)

Plug and Play Compatibility

• DDC/CI

• Mac OS X

• sRGB

• Windows 10 / 8.1 / 8 / 7

Sound

Output Power

40 W (RMS), 2.1 Channel, Sound by Bowers & Wilkins

Sound Enhancement

DTS Sound

Speaker Configuration

2 x tweeters, 10 W x 2 mid-high speakers, 20 W x 1 woofer

Stand

Tilt

-5/10  degree

Power

On mode

122.96 W (typ.)

Standby mode

0.5 W (typ.)

Off mode

0.3 W (typ.)

Energy Label Class

B

Power LED indicator

• Operation - N.A.

• Off - Red

• Standby - Red (breathing)

Power supply

• Internal

• 100–240 VAC, 50–60 Hz

Dimensions

Product with stand (max height)

1232 x 834 x 308  mm

Product without stand (mm)

1232 x 715 x 102  mm

Packaging in mm (W x H x D)

1390 x 990 x 376  mm

Weight

Product with stand (kg)

26.5  kg

Product without stand (kg)

22.7  kg

Product with packaging (kg)

34.31  kg

Operating conditions

Temperature range (operation)

0°C to 40°C  °C

Temperature range (storage)

-20°C to 60°C  °C

Relative humidity

20%-80  %

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

MTBF

50 000 (Excluded backlight)  hour(s)

Sustainability

Environmental and energy

• RoHS

• Lead-free

• Mercury Free

Recyclable packaging material

100  %

Compliance and standards

Regulatory Approvals

• CB

• CE Mark

• TUV/ISO9241-307

• TUV-BAUART

• UKRAINIAN

• CU-EAC

• EAEU RoHS

• CCC

• CECP

• CEL

Cabinet

Colour

Black

Finish

Textured/Glossy

What's in the box?

Monitor with stand

Yes

Cables

DP cable, HDMI cable, Power cable

User Documentation

Yes

Accessory

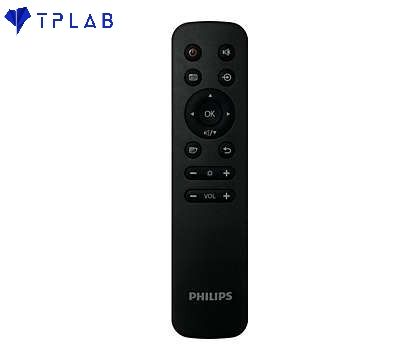

Remote control
