Màn hình VIEWSONIC TD2223 22" FHD TN 60Hz Touch Screen

Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA
Static Contrast Ratio: 500:1 (typ)
Dynamic Contrast Ratio: 10M:1
Light Source: LED
Colours: 262K
Colour Space Support: 6 bit true
Brightness: 160 cd/m²
Aspect Ratio: 16:9
Response Time (Typical GTG): 12ms
Viewing Angles: 90º horizontal, 60º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Colour Gamut: NTSC: 45% size (Typ)
Pixel Size: 0.252 mm (H) x 0.252 mm (V)
Touch Screen: Projected capacitive, 10-point multi touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 0.83 mm

Frequency: Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz
Sync: Separate Sync, TMDS

PC: Windows 7/8/10 tested
Mac®: Display: Power Mac tested, Touch Module:iOS not support

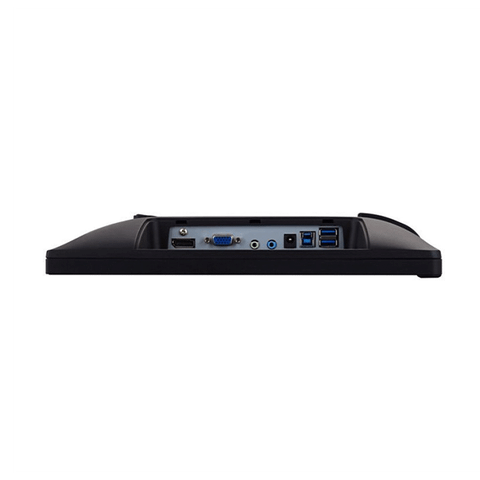

Input: DB -15 x 1
HDMI x 1 (v1.4 compatible)
Audio in x1 (3.5mm plug)

Speaker: 1W x 2

Upstream: Type B x 1

Power: 5.5 x 2.1 x 11 mm DC connector
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 5.5W
Optimize: 4.9W
Conserve: 4.3W

Tilt: 15 ~ 50 degrees

Eye Care: Blue light filter

VESA®: 75mm x 75mm

Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 85% (no condensation)

Physical with stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree)
Physical without stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D)
Packaging (mm): 453mm (W) x 389mm (H) x 86mm (D)

Net with stand: 1.32kg (2.91lbs)
Net without stand: 1.32kg (2.91lbs)
Gross: 2.5kg (5.51lbs)

VSI: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM, GEMS, BIS

*Warranty offered may differ from market to market

LCD Display
40W AC/DC Adapter (1.2m)
Power Cable (1.5m)
VGA Cable (1.5m)
USB2.0 Cable (1.8m)
Audio Cable (1.8m)
Quick Start Guide
