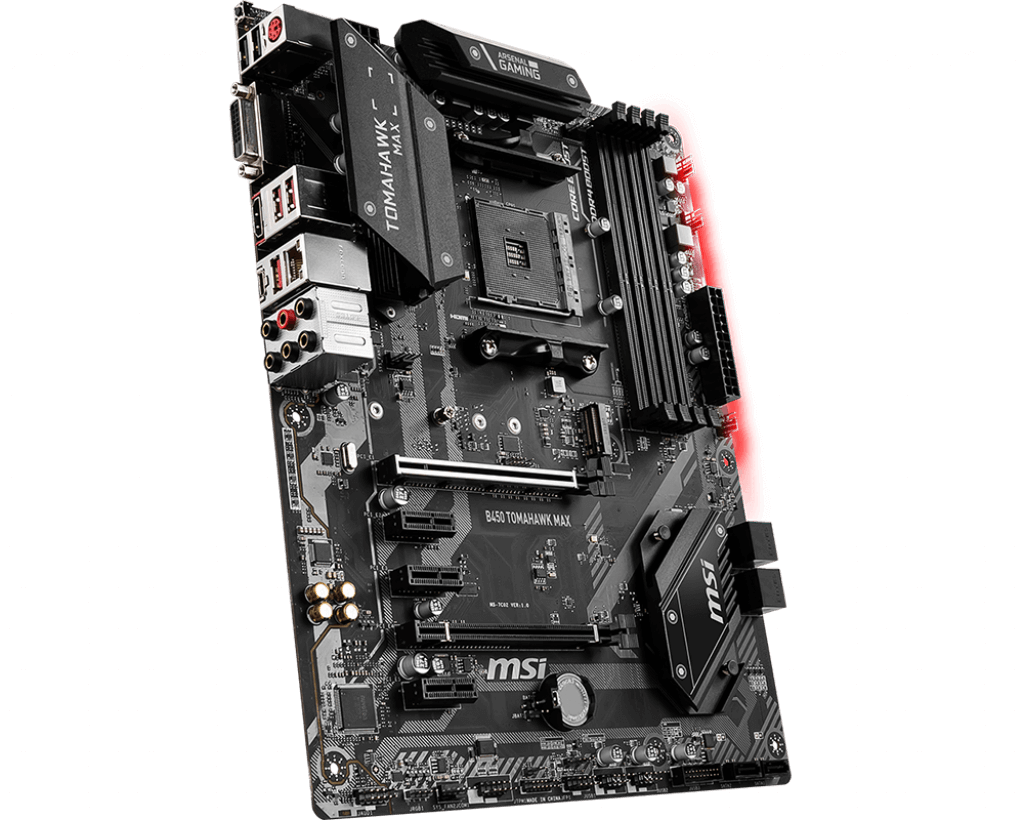

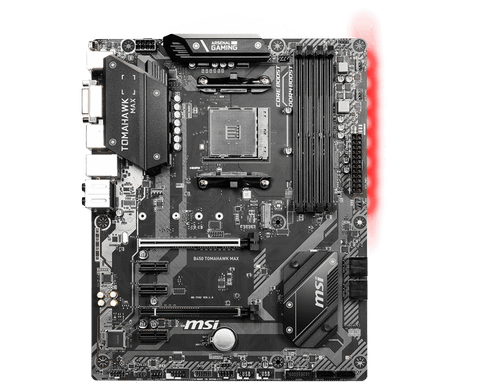

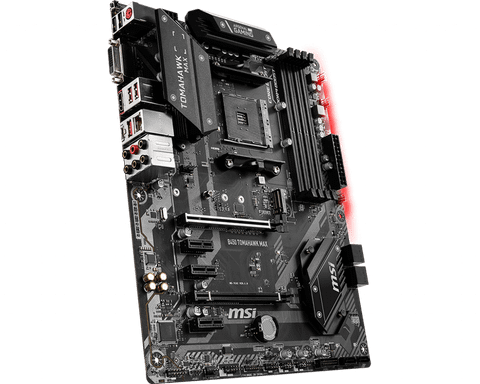

MSI B450 TOMAHAWK MAX

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

B450 TOMAHAWK MAX

CPU hỗ trợ

AMD

Chipset

B450

RAM hỗ trợ

4 x DDR4 memory slots, support up to 64GB DDR4

Khe cắm mở rộng

1 x PCIe 3.0 x16 slot (PCI_E1)

Ổ cứng hỗ trợ

1 x M.2 slot (Key M

Cổng kết nối (Internal)

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Serial Port connector

1 x Clear CMOS jumper

2 x 5050 RGB LED strip 12V connectors

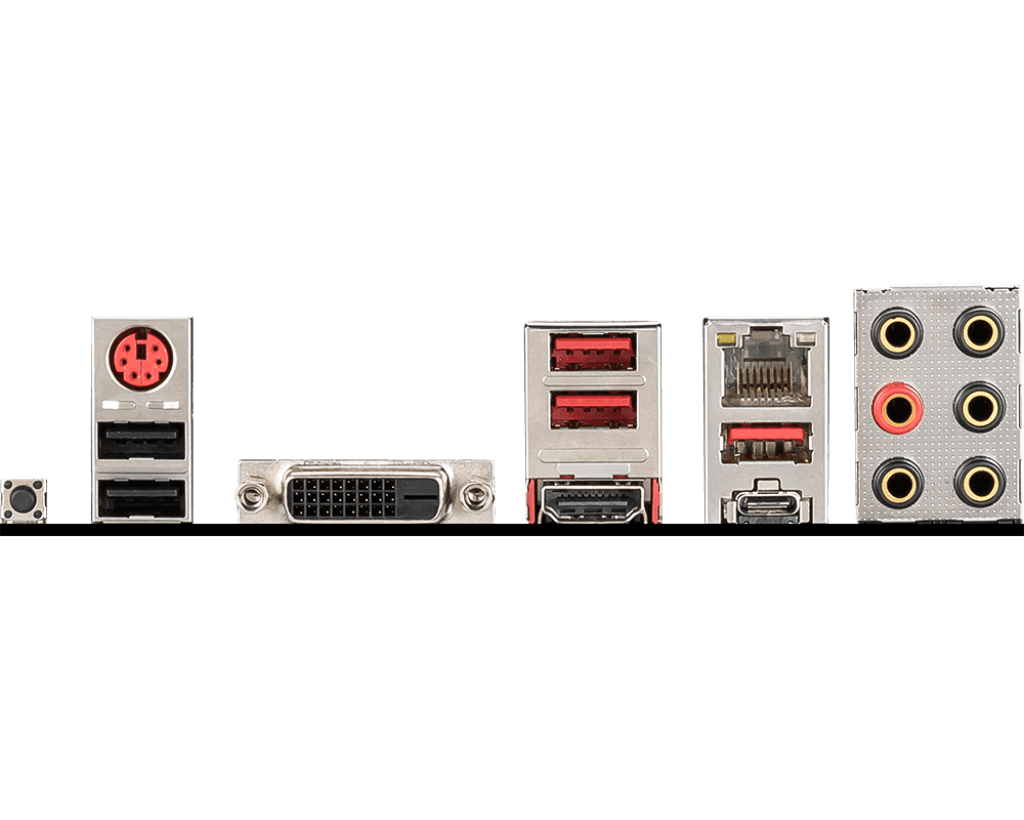

Cổng kết nối (Back Panel)

PS/2 Combo Port

USB 3.2 Gen1

LAN Port

HD Audio Connectors

USB 2.0 Port

DVI-D Port

HDMI Port

USB 3.2 Gen2 Type A+C

LAN / Wireless

Kích cỡ

ATX Form Factor
