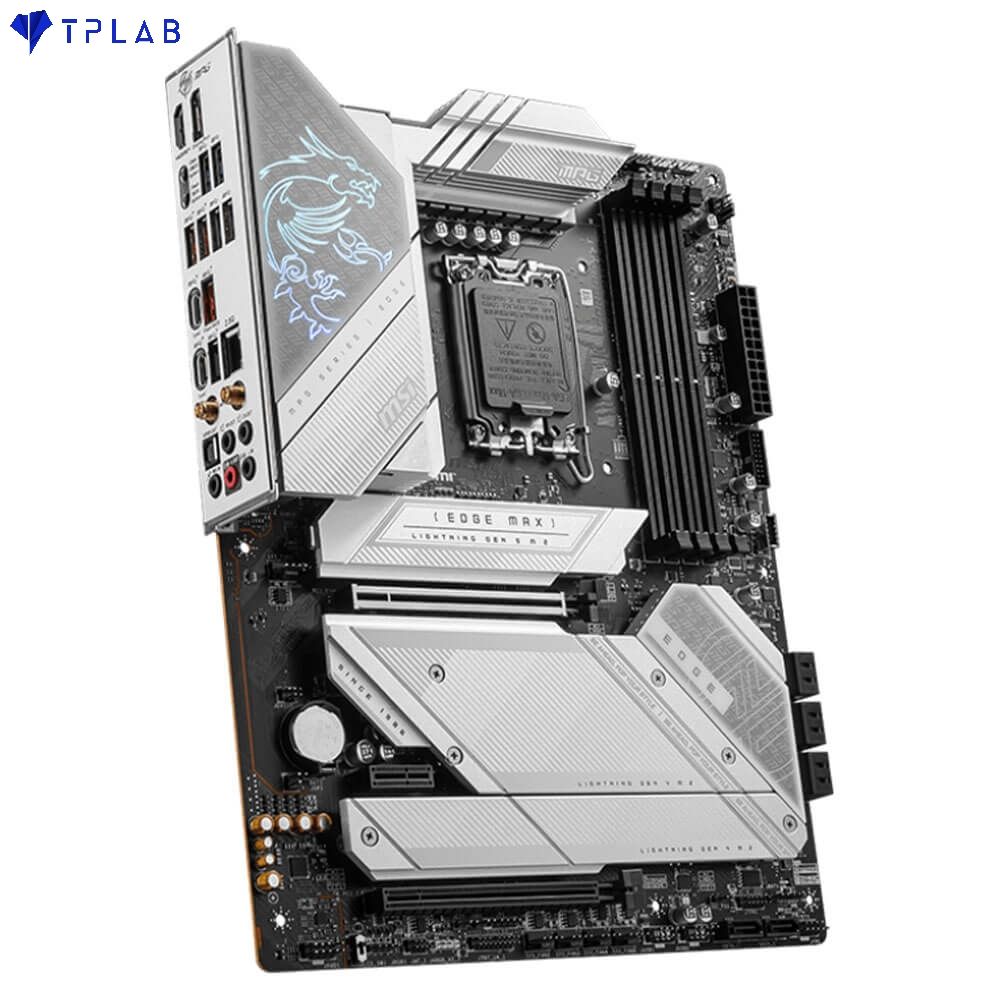

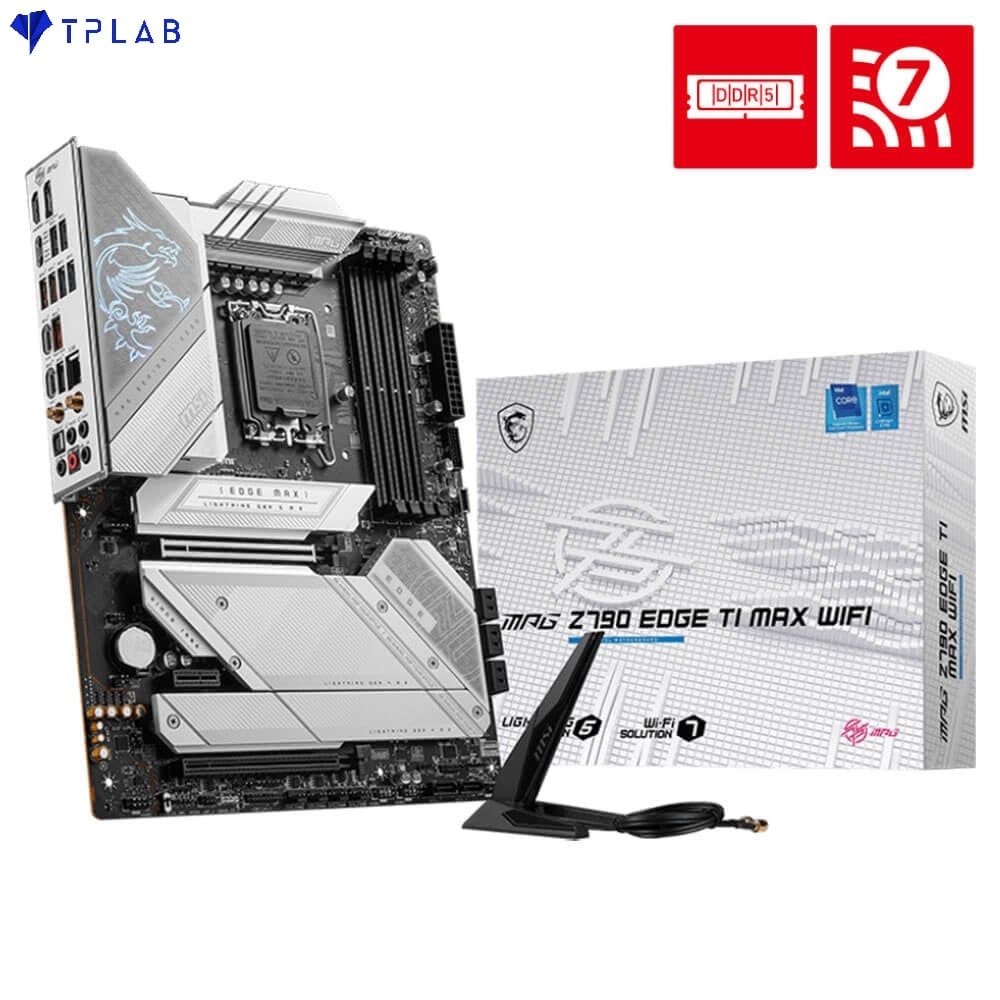

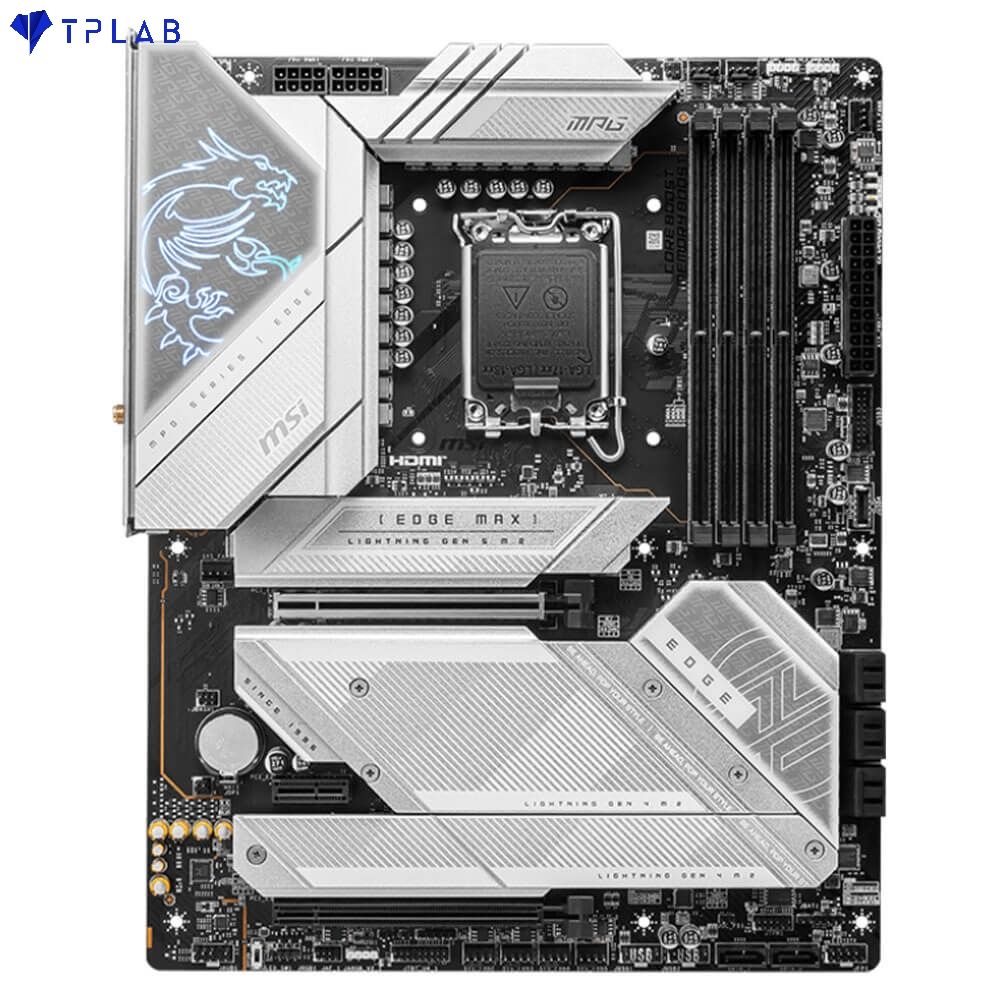

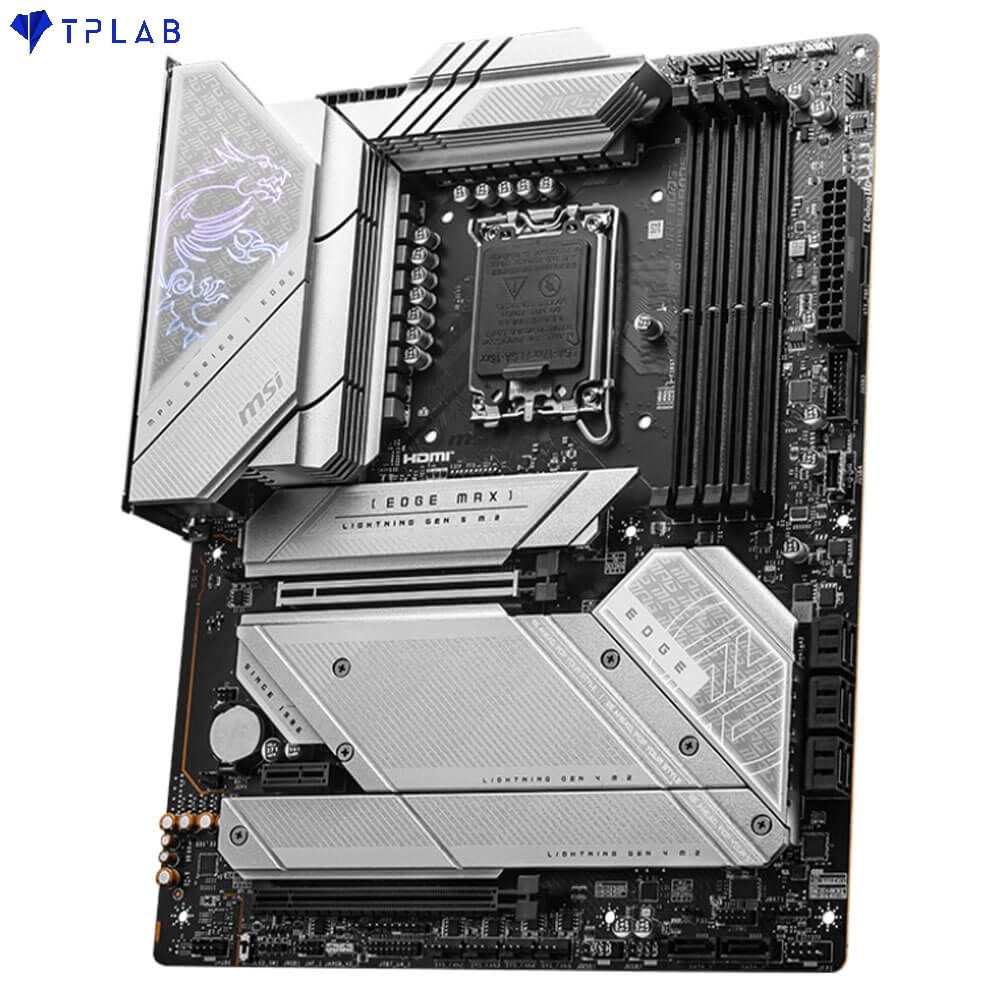

MSI MPG Z790 EDGE TI MAX WIFI DDR5

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: MSI
Dòng sản phẩm: Mainboard

Tình trạng: Mới 100% - Fullbox

Bảo hành : 36 Tháng

10,550,000₫
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích

THÔNG TIN SẢN PHẨM

    CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
    CHIPSETIntel® Z790 Chipset
    MEMORY4x DDR5 UDIMM, Maximum Memory Capacity 192GB
    Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

    ONBOARD GRAPHICS1x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    EXPANSION SLOT2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    STORAGE5x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    8x SATA 6G
    *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
    * SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
    RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    * SATA_A1~A2 do not support RAID function.
    USB4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    4x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LANIntel® 2.5Gbps LAN
    WIFI & BLUETOOTHWi-Fi 7 Solution
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

    AUDIORealtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    INTERNAL I/O1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    1x ARGB+FAN Header (JAF_1)
    1x USB4 card connector (JTBT_U4_1, supports RTD3)
    LED FEATURE4x EZ Debug LED
    1x EZ LED Control switch

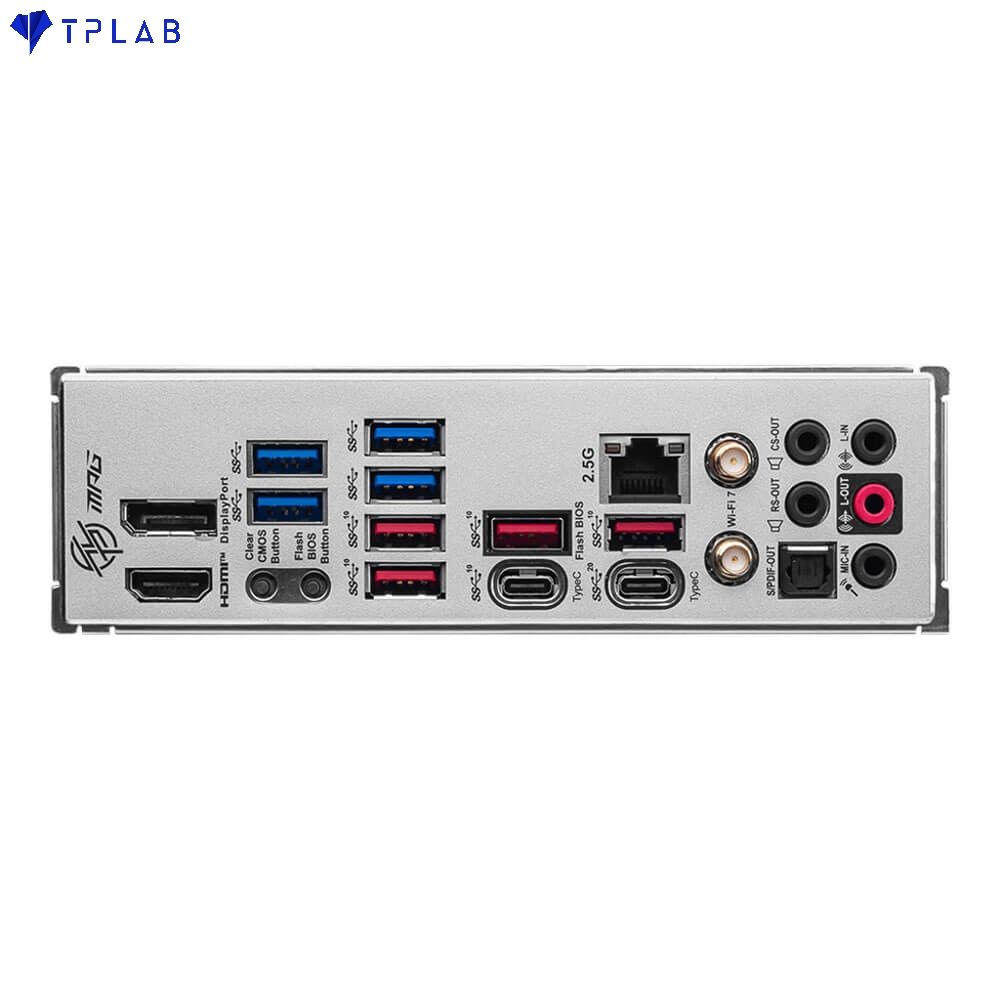

    BACK PANEL PORTS
    • Display Port
    • USB 3.2 Gen 1 5 Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • 2.5G LAN
    • Audio Connectors
    • HDMI™
    • Clear CMOS
    • Flash BIOS
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • USB 3.2 Gen 2×2 20Gbps (Type-C)
    • Wi-Fi / Bluetooth
    • Optical S/PDIF Out
    OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
    PCB DIMENSIONATX
    243.84mmx304.8mm
    BOX CONTENTMSI MPG Z790 EDGE TI MAX WIFI - Socket 1700
