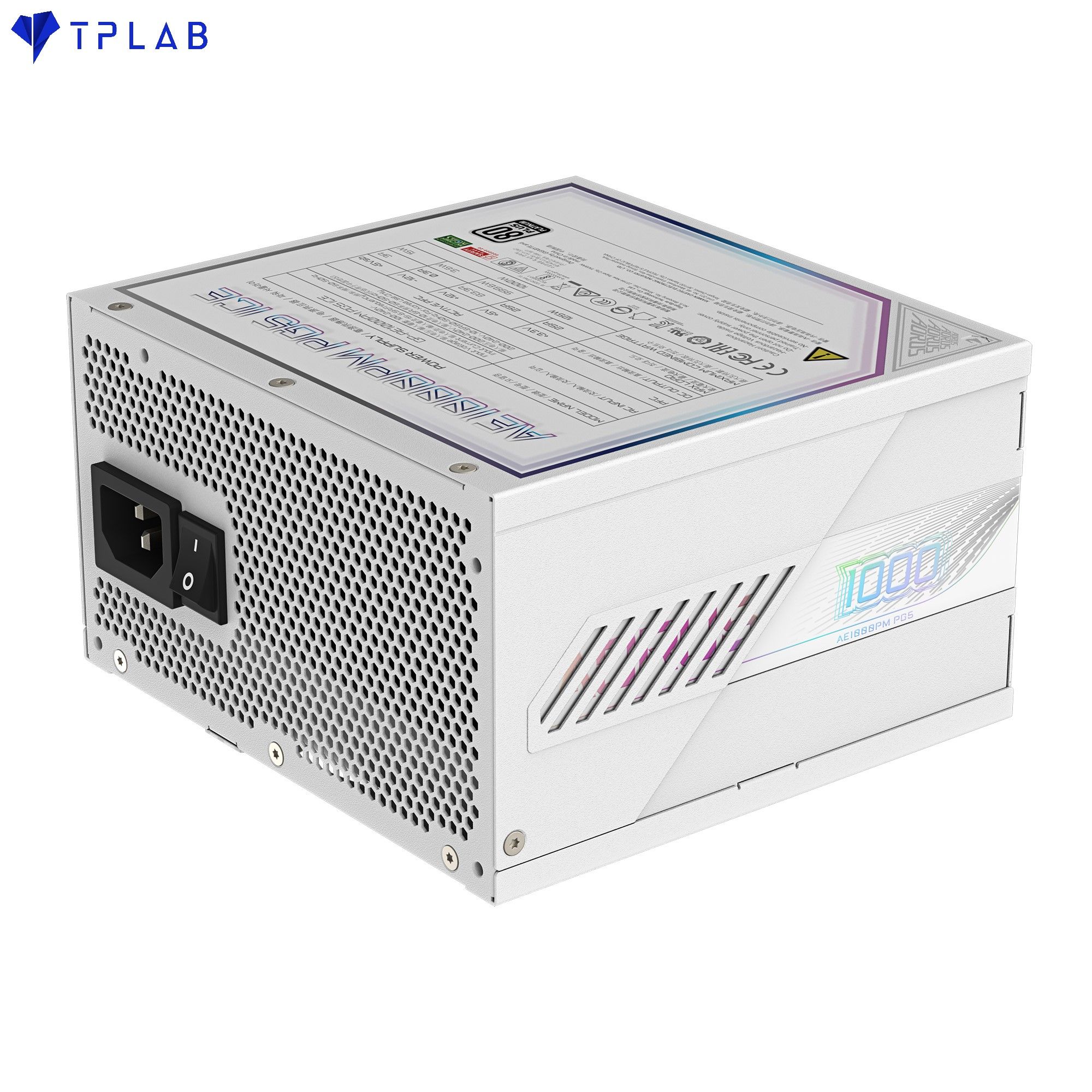

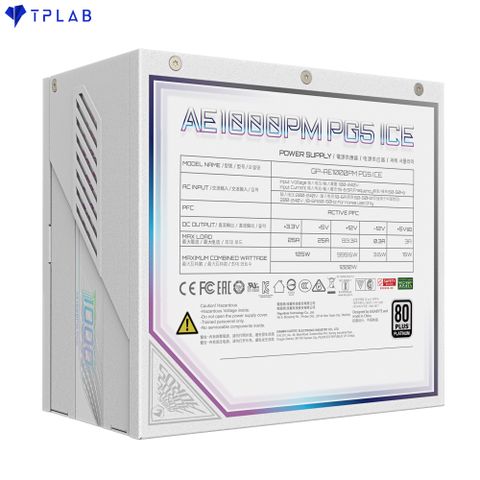

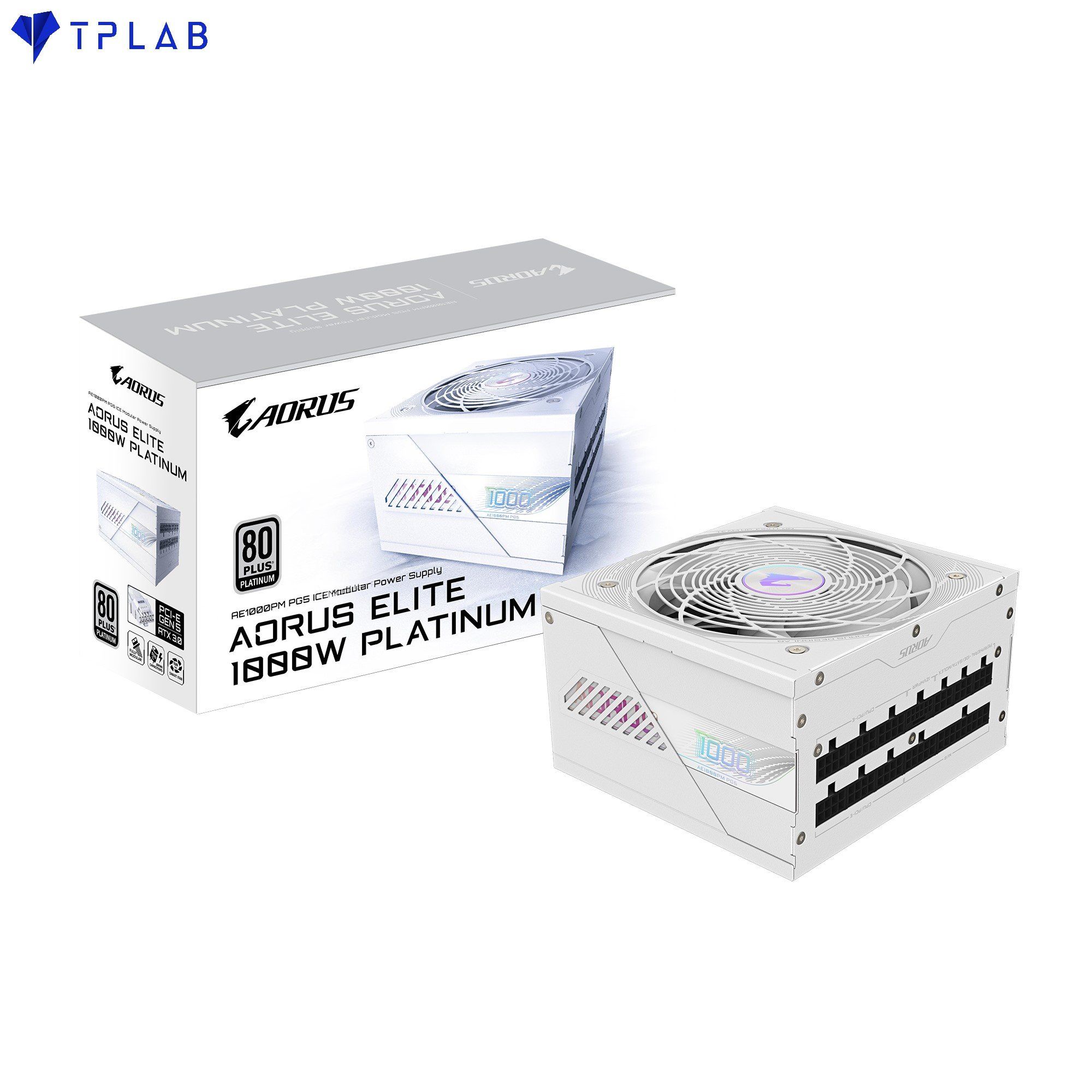

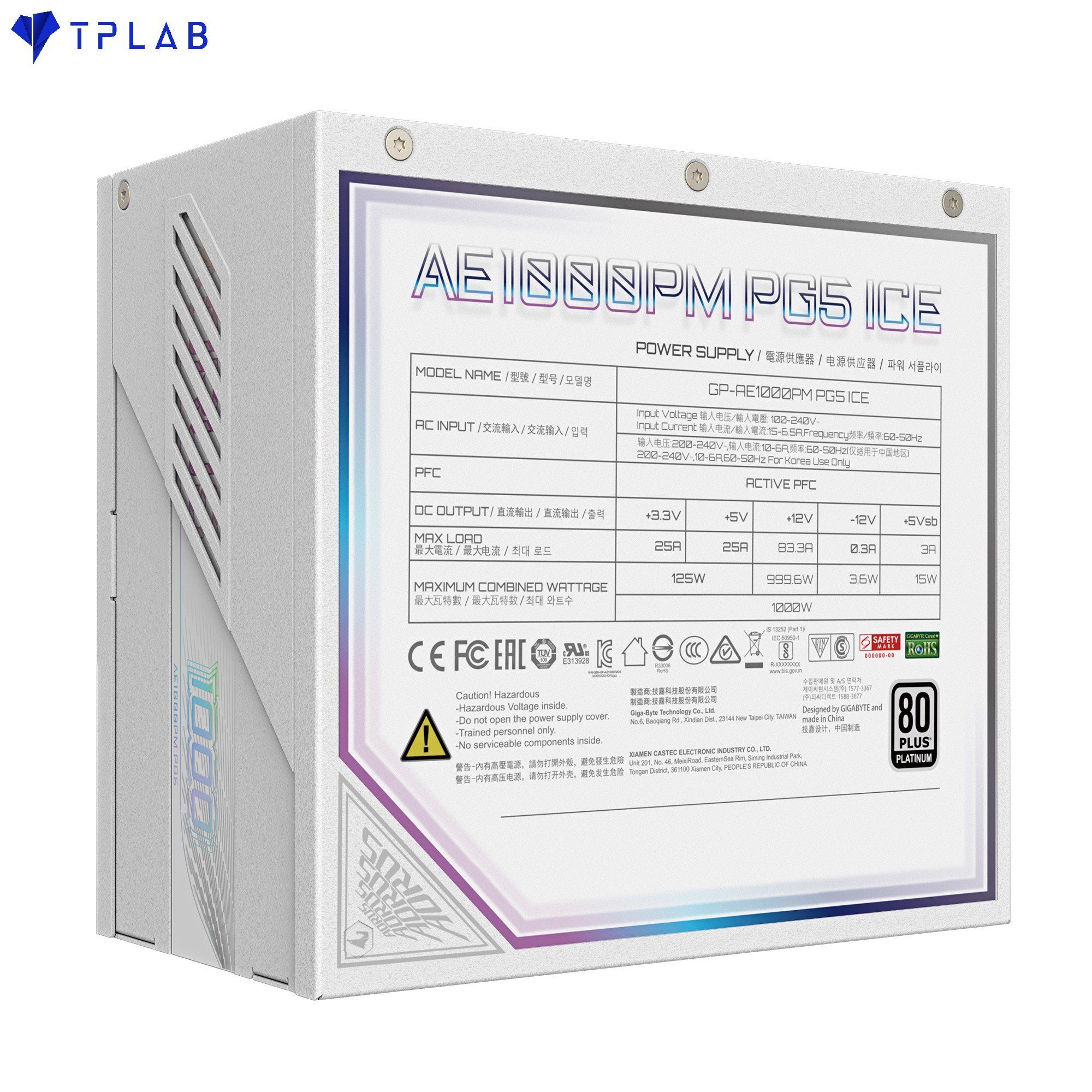

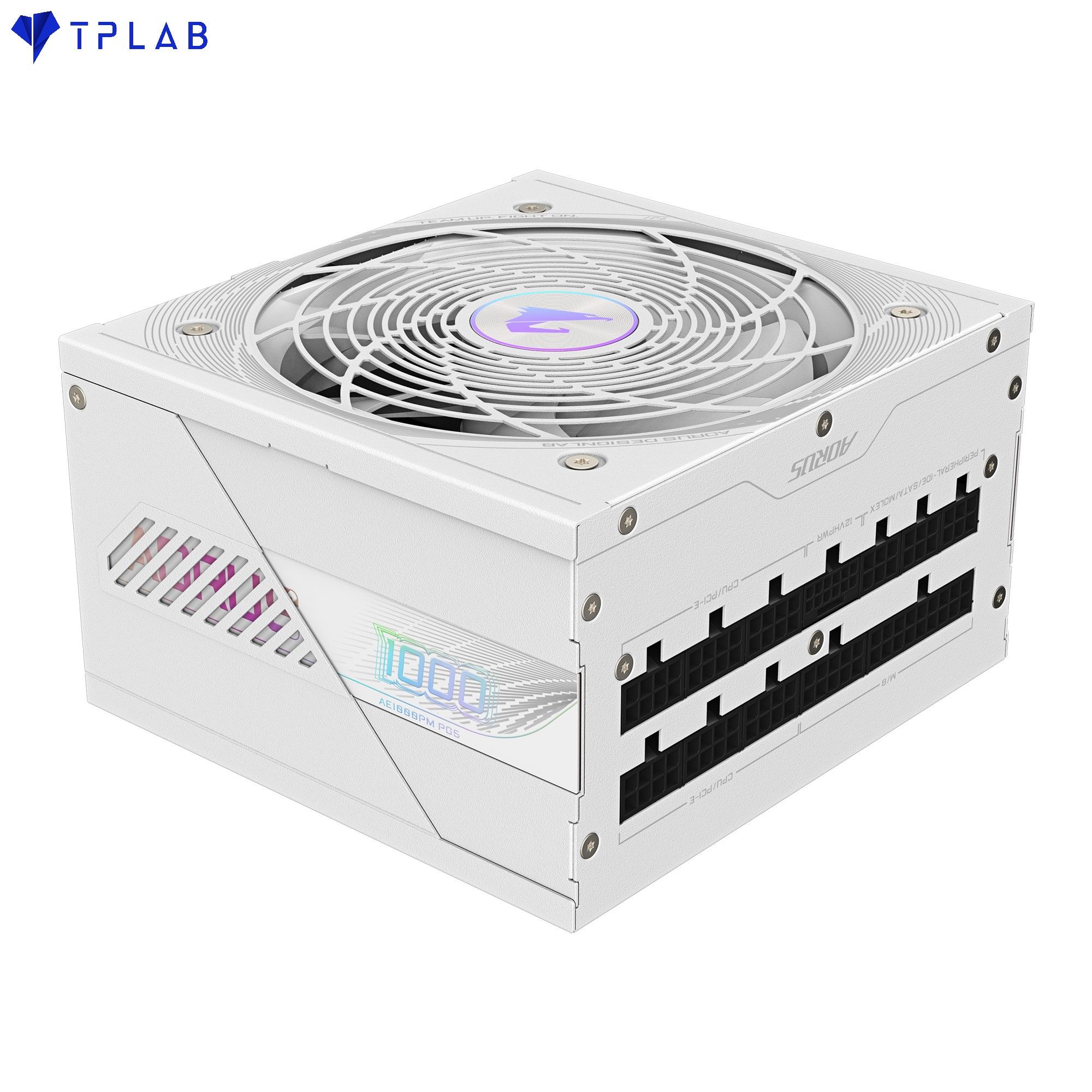

Nguồn Gigabyte AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE

Model

GP-AE1000PM PG5 ICE

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimension

150 x 140 x 86mm

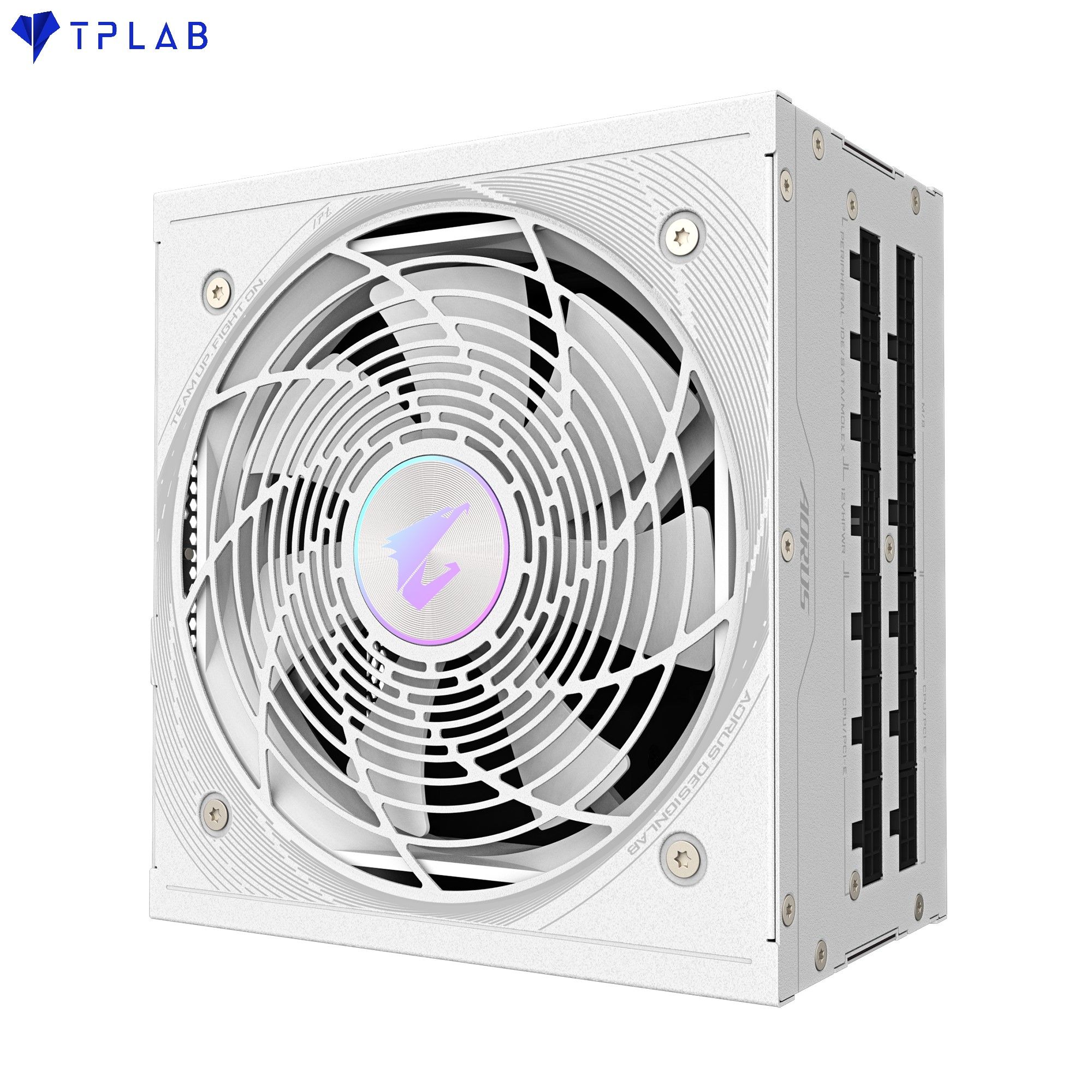

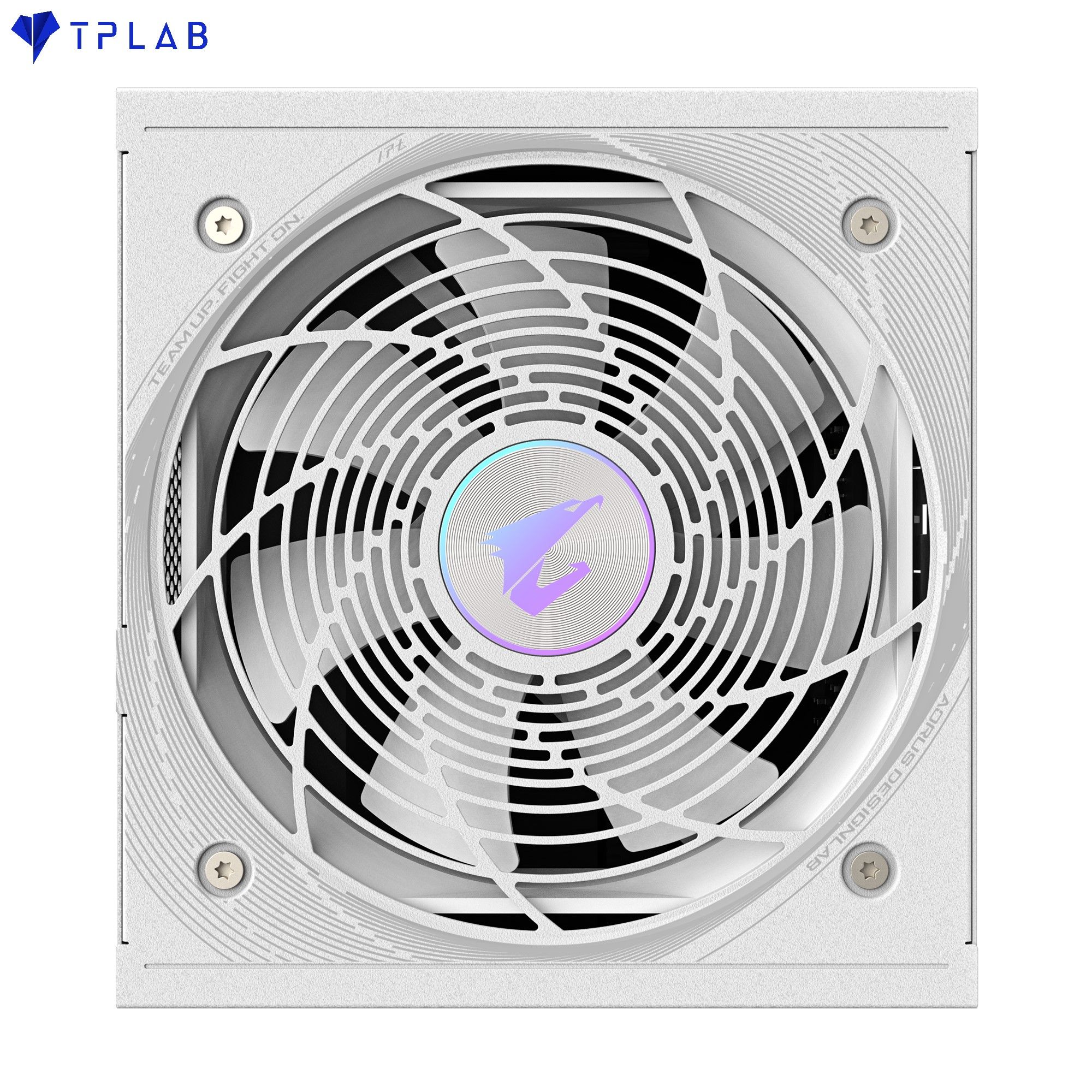

Fan Type

120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS

Platinum

Efficiency

92% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All white

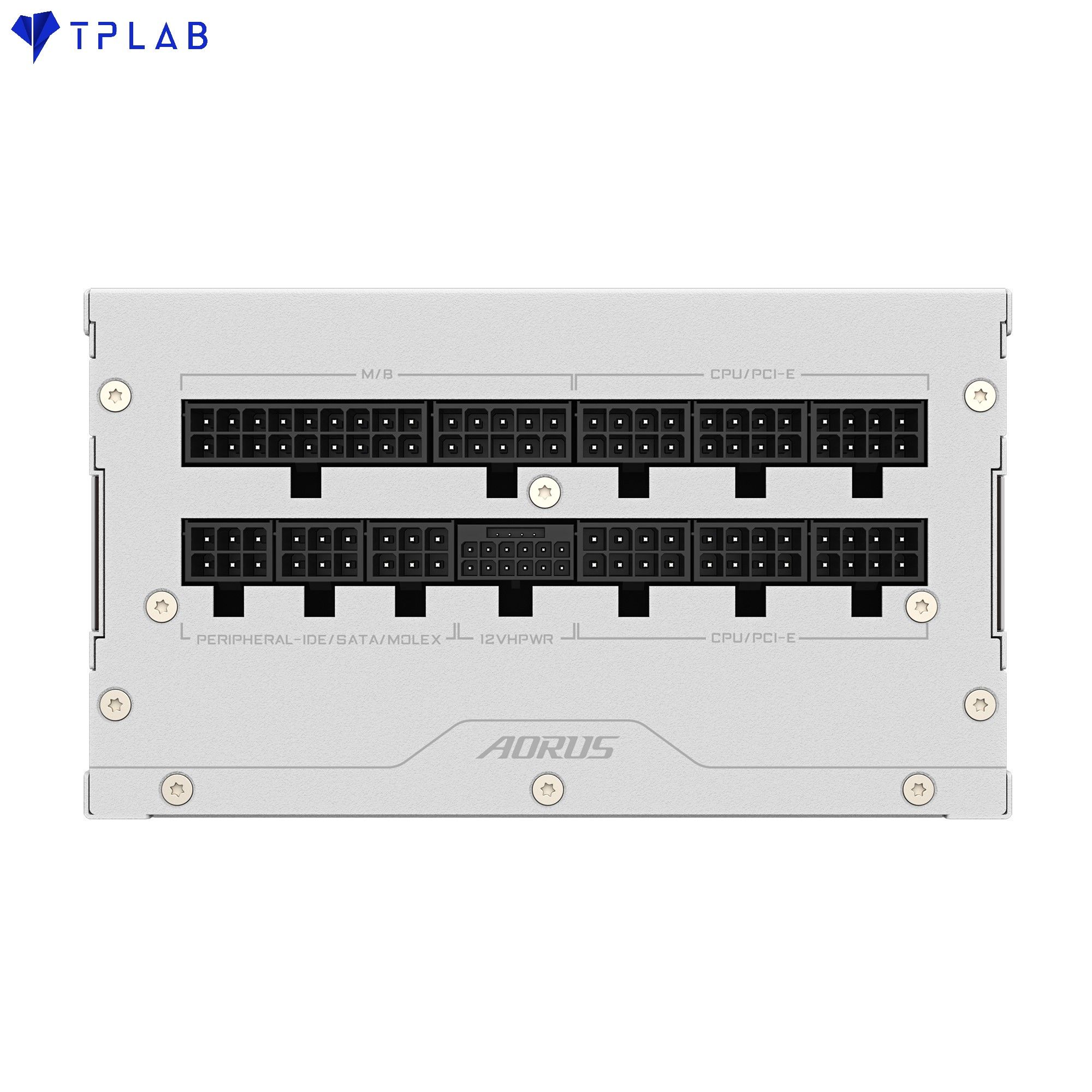

Connectors

ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
