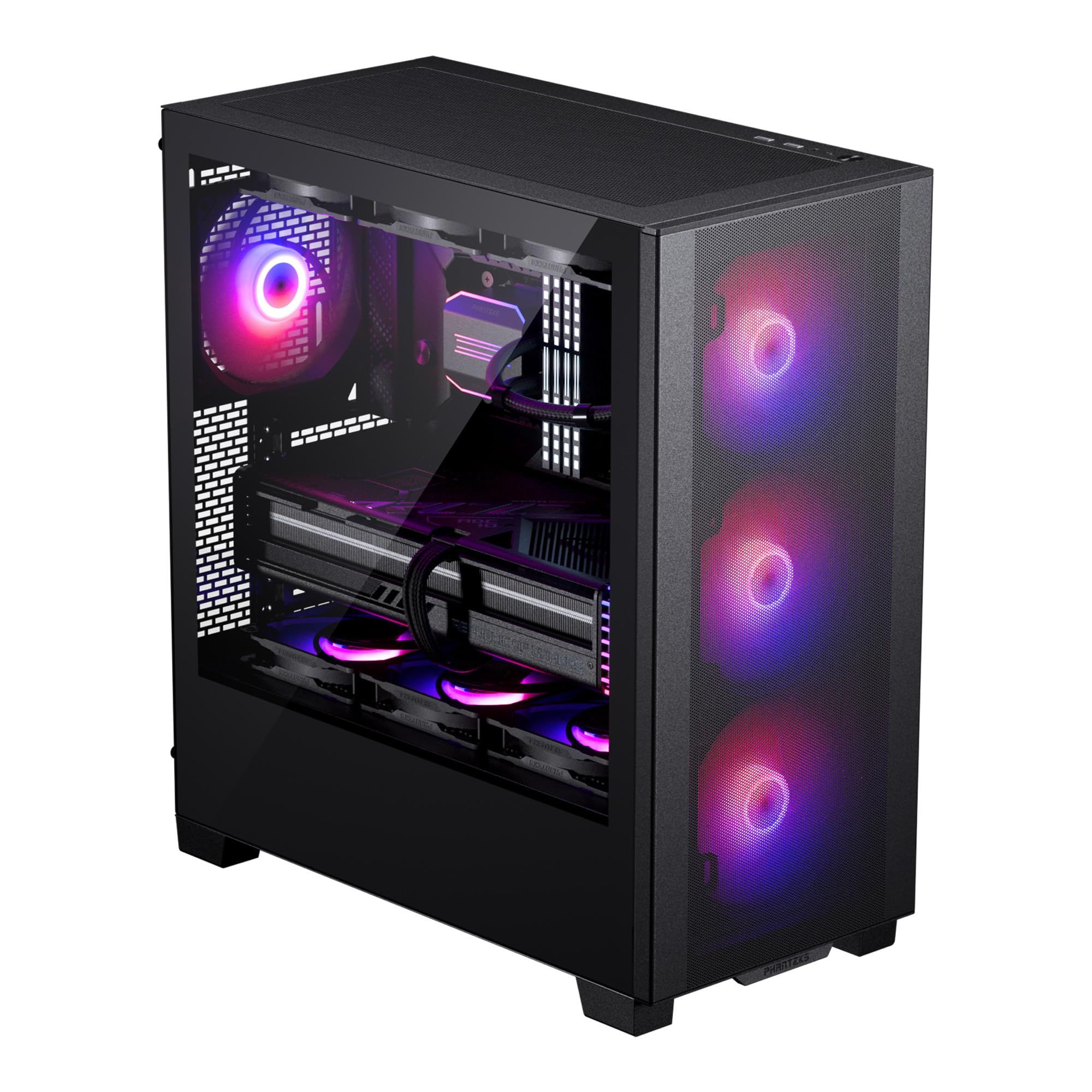

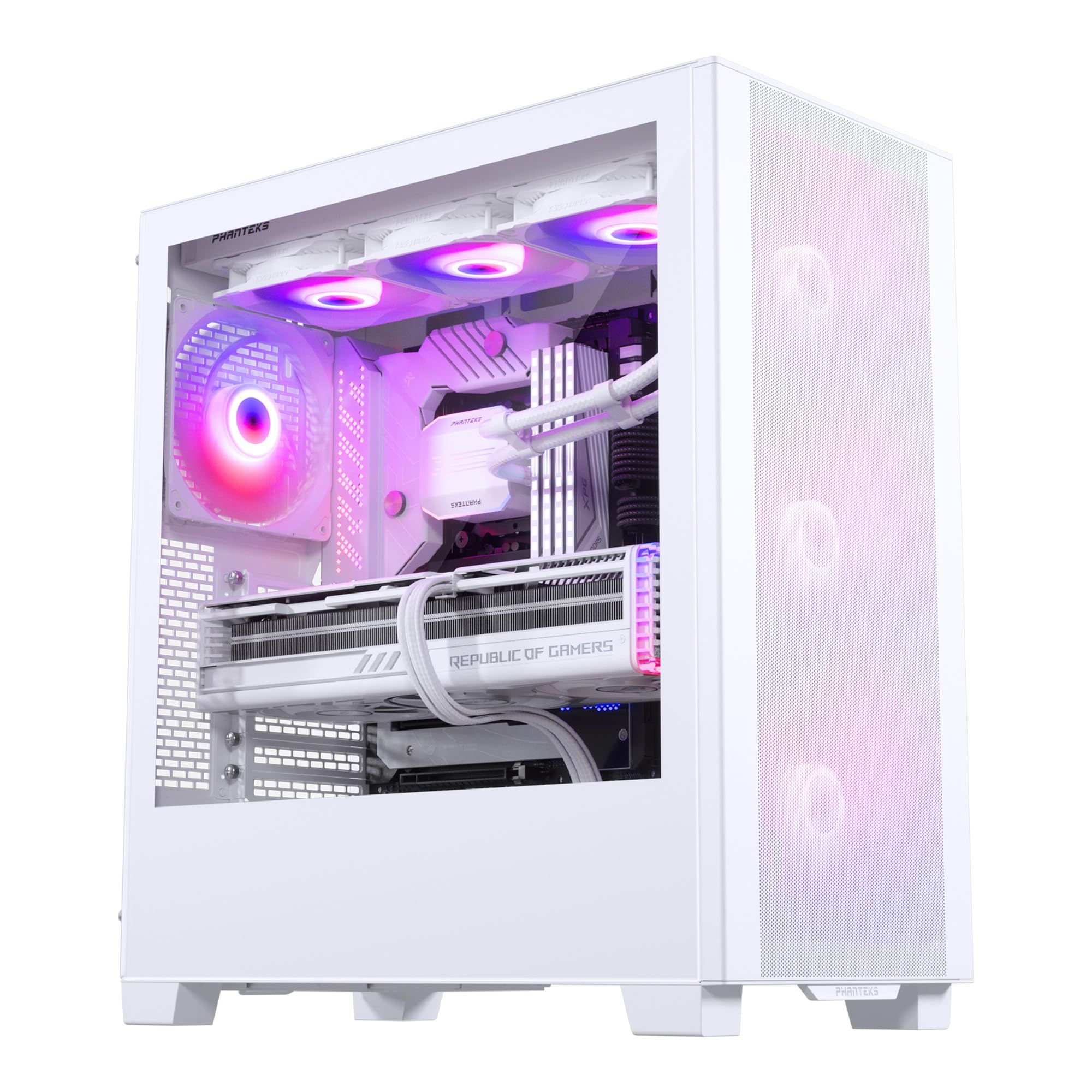

Case Phanteks 523 Series XT Pro Ultra ATX TG (4x M25-140 DRGB Fan)

GENERAL

Case Dimensions

450 x 230 x 500 mm | 17.7×9.05×19.68 in

Form Factor

Mid-Tower

Mainboard Support

E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass | ABS plastic

Color

Matte White

PCI Slots

7

Vertical GPU Support

3 slots

Internal 2.5″ Bay

5 (+ 1x 3.5″ HDD)

Internal 3.5″ Bay

2 (+ 3x 2.5″ SSD)

Front I/O

1x USB-C 3.2 Gen2

1x USB 3.0

Microphone | Headphone combo

Power Button

Reset Button

FANS (120 | 140)

Total Fans

10x | 6x

Top

3x | 2x

Front

3x | 3x

Side

-

Rear

1x | 1x

Midplate

3x | -

RADIATOR

Top

Max. 360 | -

Front

Max. 240 | –

Side

-

Rear

120 | -

Bottom

-

CLEARANCE

CPU Cooler

184 mm | 7.24 in

GPU (L x W)

440 x 184 mm | 16.33 x 7.24 in

Power Supply (Length)

270 mm | 10.62 in

Top Radiator (L x W x H)

415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in

Front Radiator (L x W)

170 x 132 mm | 6.69 x 5.19 in

Side Radiator (L x W)

-

EXTRA

Net Weight

7.55 kg | 16.64 lbs

Gross Weight

9.45 kg | 20.83 lbs

Screws

30x Mainboard | SSD screws

4x Power supply screws

8x HDD screws

4x Thumb screws

12x 30mm Fan Screw

1x Motherboard stand-off

1x Stand-off removal tool
