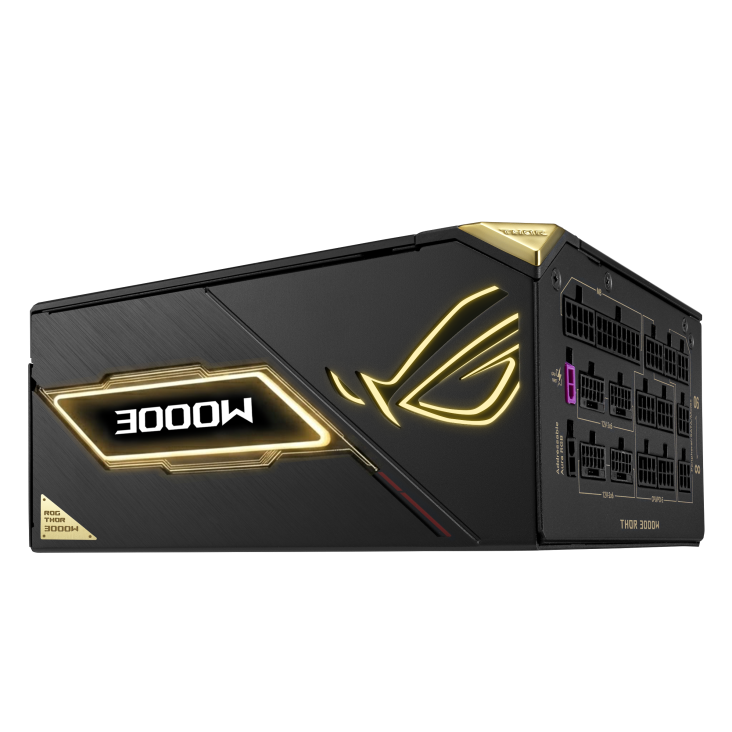

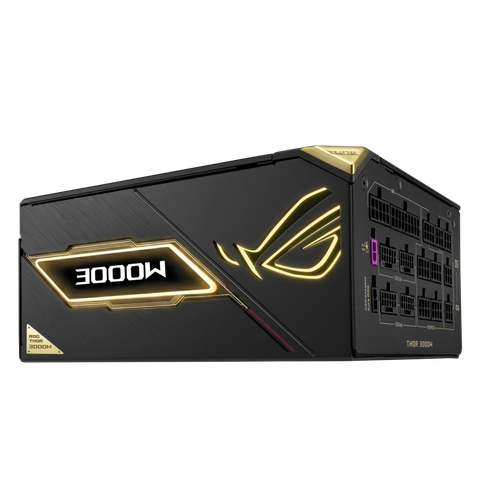

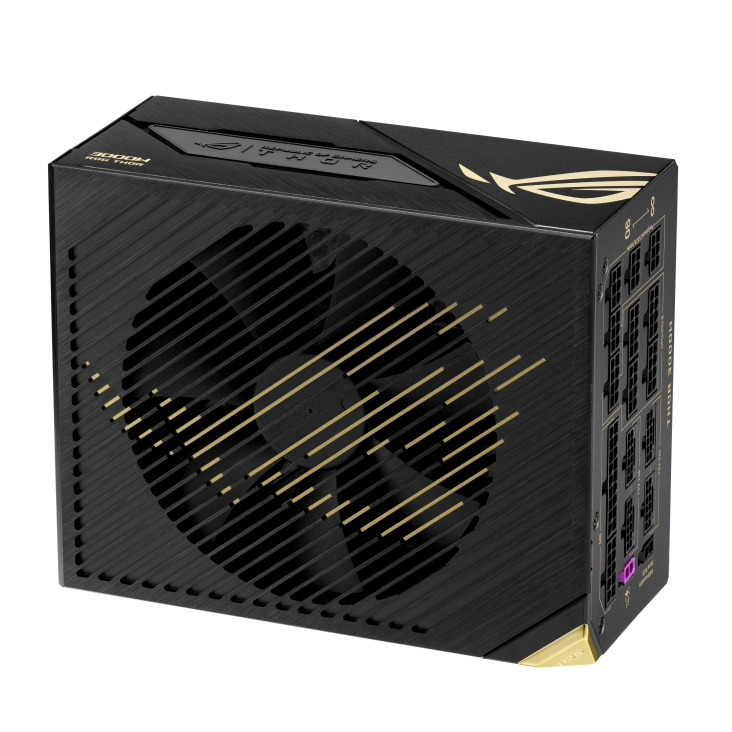

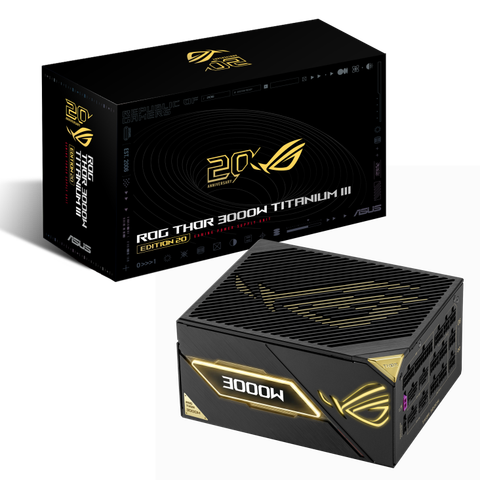

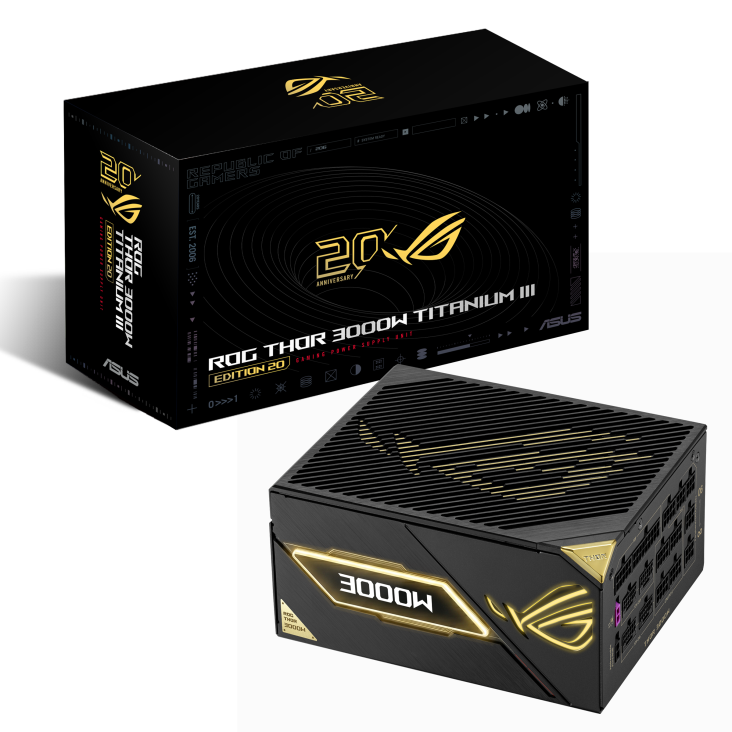

Nguồn máy tính ROG Thor 3000W Titanium III Edition 20 (ROG Equalizer)

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

220-240Vac｜115-240Vac｜100-115Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 250A 0.3A 3A｜30A 25A 133.3A 0.3A 3A｜30A 25A 108.3A 0.3A 3A

Combined Load

125W 125W 3000W 3.6W 15W｜125W 125W 1600W 3.6W 15W｜125W 125W 1300W 3.6W 15W

Total Output

3000W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)

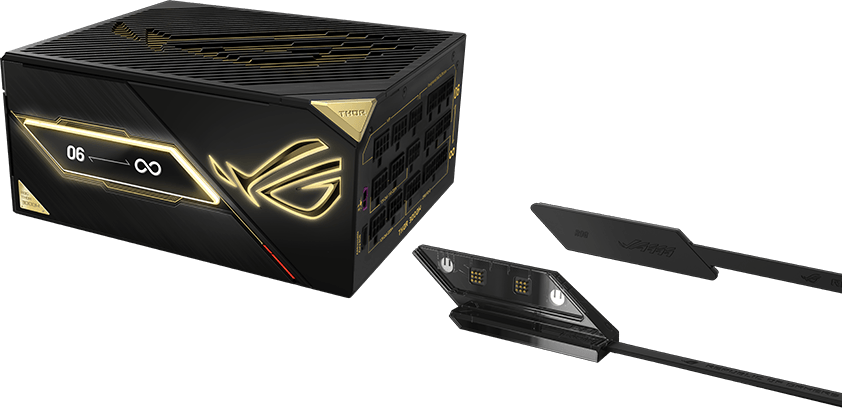

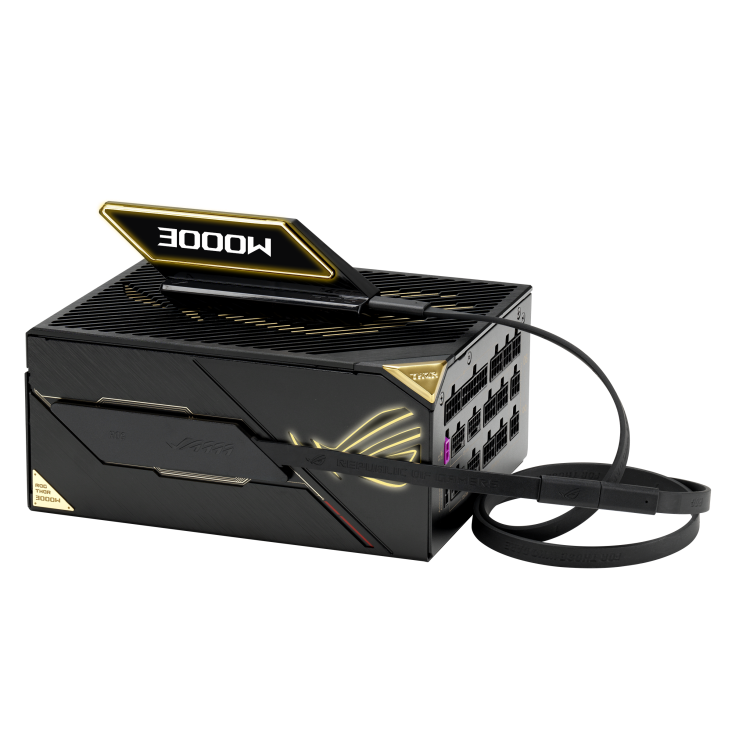

ROG OLED stand x 1
ROG 20TH Thank You Card x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight

2.5 kg (single PSU)

AURA SYNC

ARGB

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
