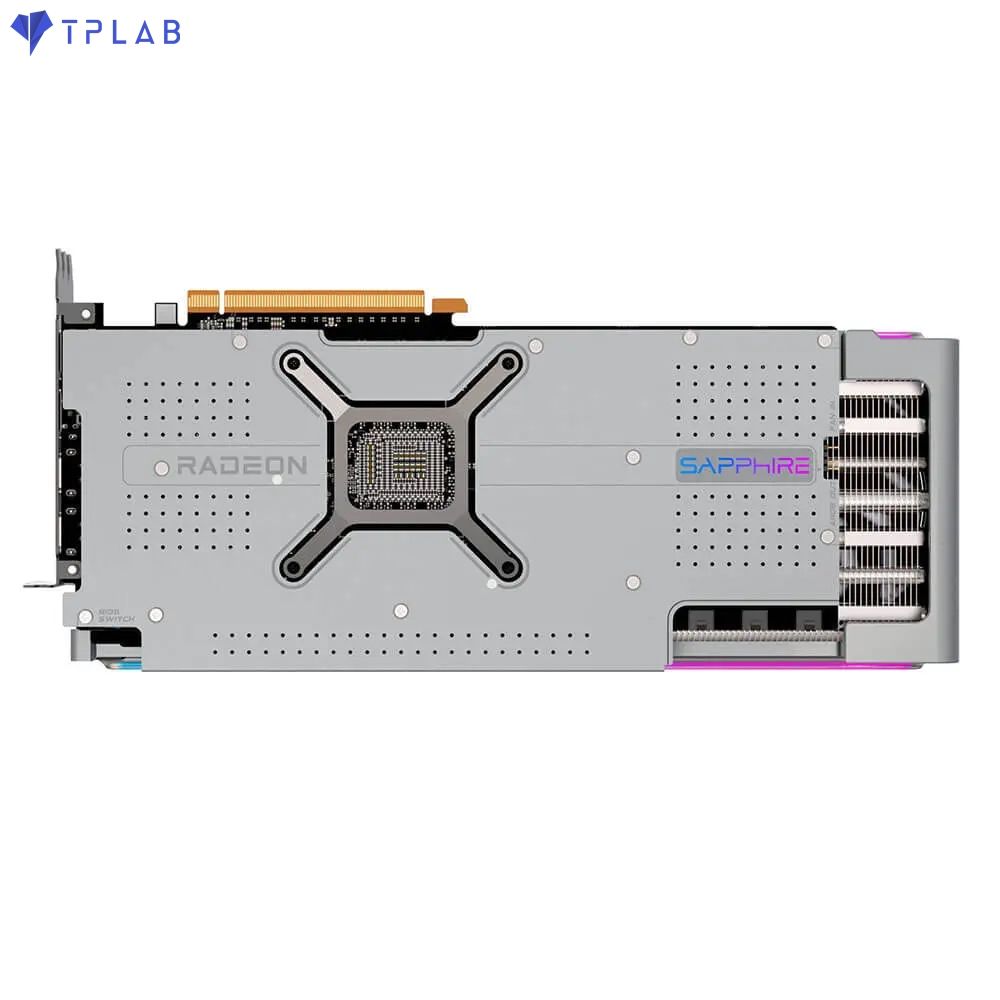

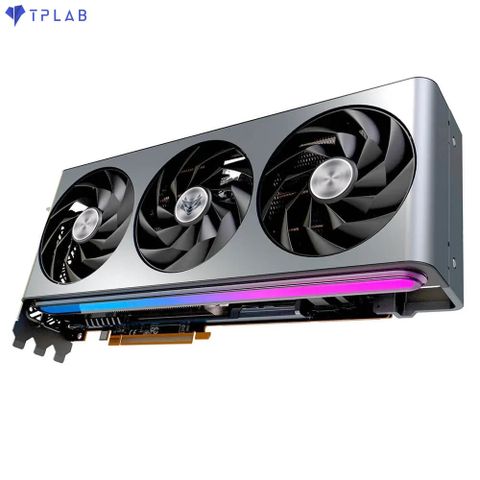

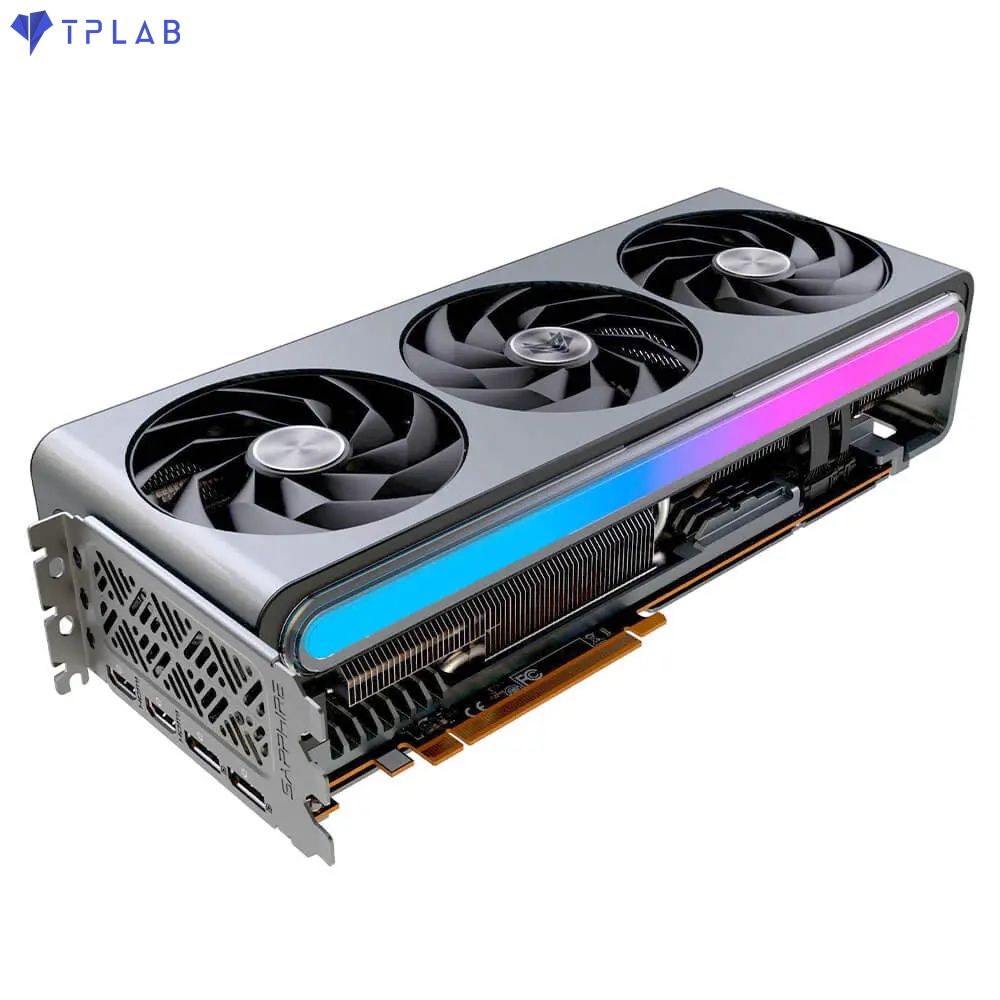

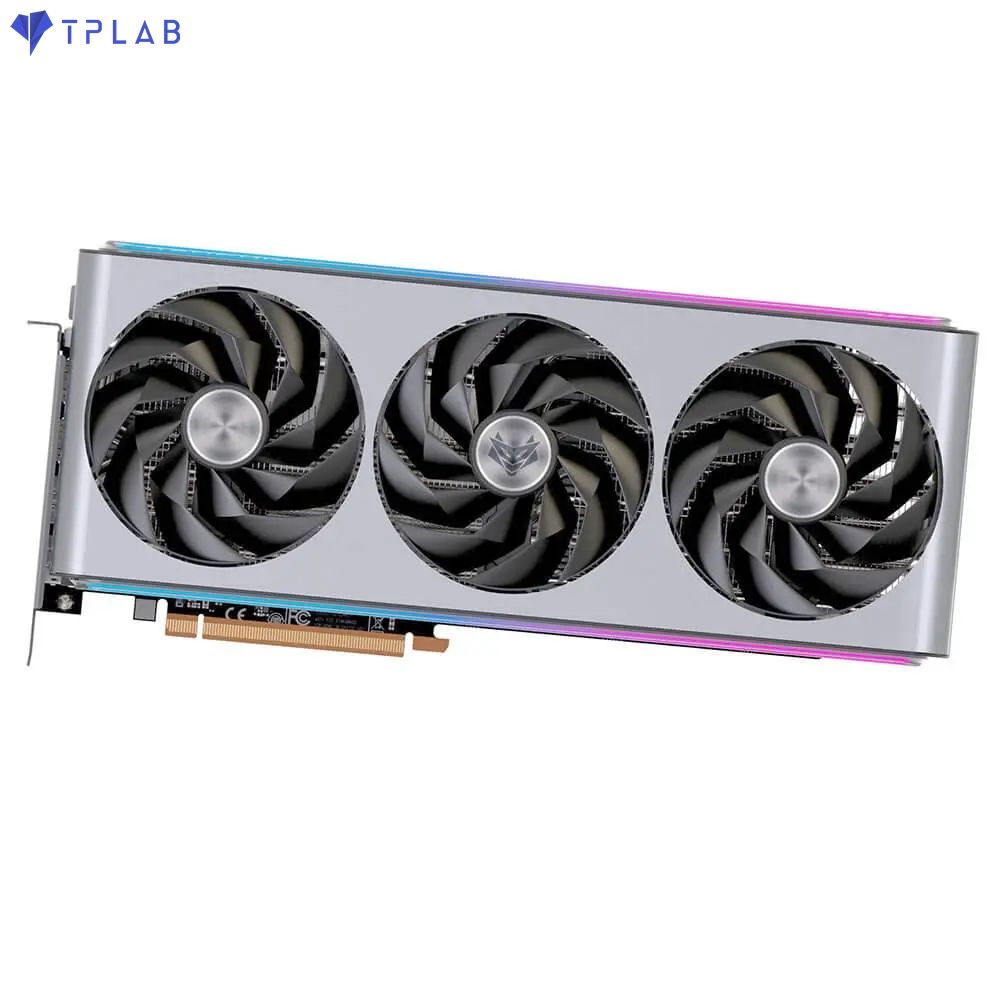

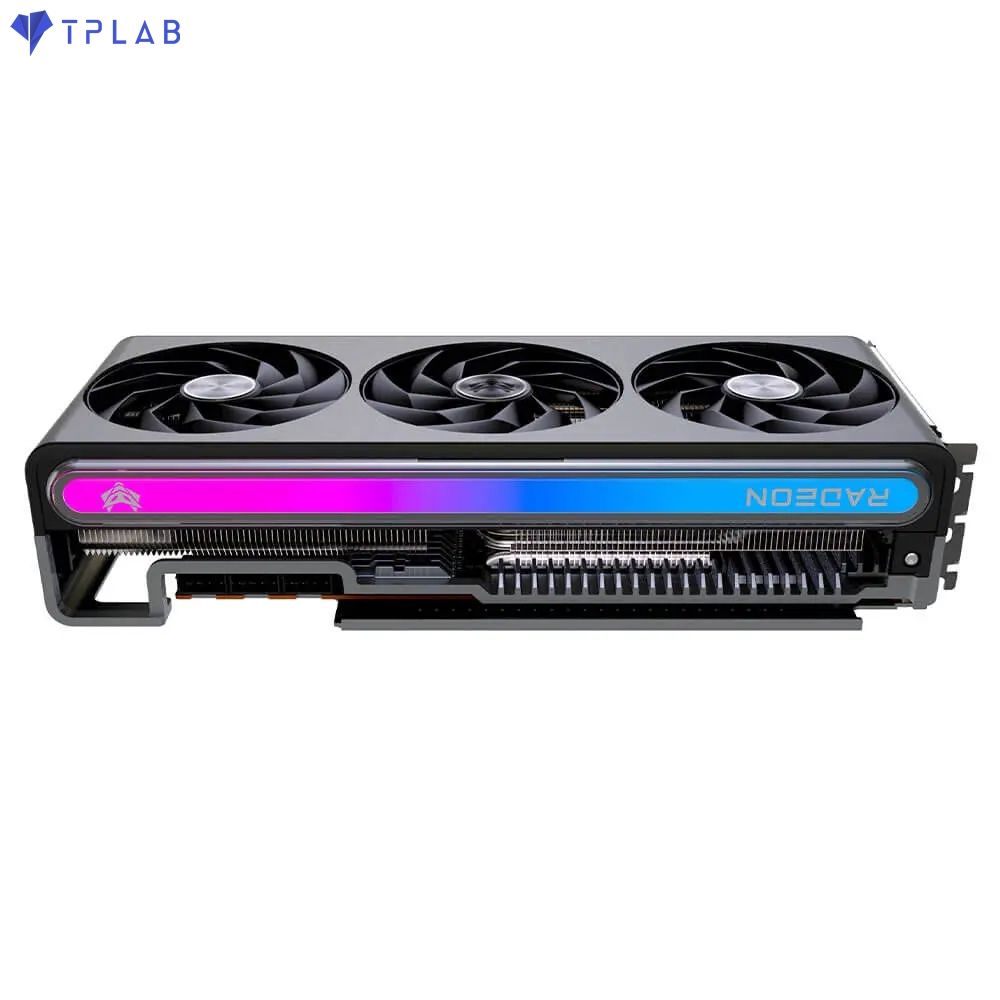

SAPPHIRE NITRO+ AMD Radeon™ RX 7900 GRE GAMING OC 16GB GDDR6

5nm GPU

AMD RDNA™ 3 Architecture

• Boost Clock: Up to 2391 MHz
• Game Clock: Up to 2052MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual inpidual game clock results may vary.

84 CU (with RT+AI Accelerators)

16GB/256 bit GDDR6

20 Gbps Effective

Maximum 4 Displays

DisplayPort 2.1: 7680×4320

2x DisplayPort

• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• Vapor-X Cooling
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• Dual ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Die Casted Aluminum-Magnesium Alloy Frame
• Frontplate Heatsink for VRM
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

ARGB Extension Cable

• AMD RDNA™ 3 Gaming Architecture
• 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
• 96MB AMD Infinity Cache™ technology
• DisplayPort™ 2.1
• AMD Radiance Display™ Engine
• AMD Radeon™ Boost technology*
• AMD Radeon™ Anti-Lag* technology*
• 24GB GDDR6 on 384-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ technologies*
• AMD FidelityFX™ Super Resolution technology*
• Microsoft® DirectX® 12 Ultimate
• Microsoft® DirectStorage
• Vulkan® Optimized
• AMD smart technologies*
• AMD Software: Adrenalin Edition™ application
• AMD Noise Suppression*
• AMD Privacy View*
• AMD Radeon™ Super Resolution technology*
• AMD Link*
• AMD Freesync™ technology

Vapor-X Cooling

Dimension: 320(L)X 135.75(W)X 71.6 (H)mm

368W Total Board Power

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

• Minimum 750 Watt Power Supply
• 3 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
