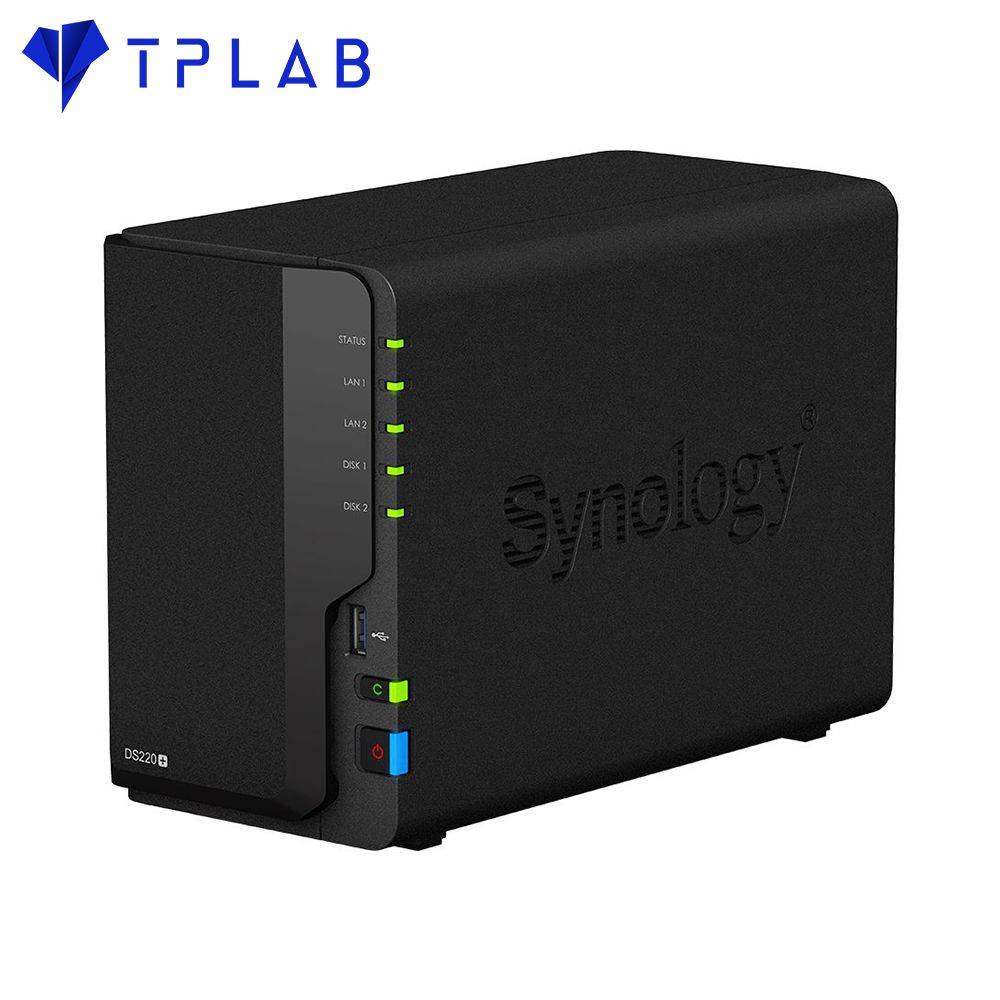

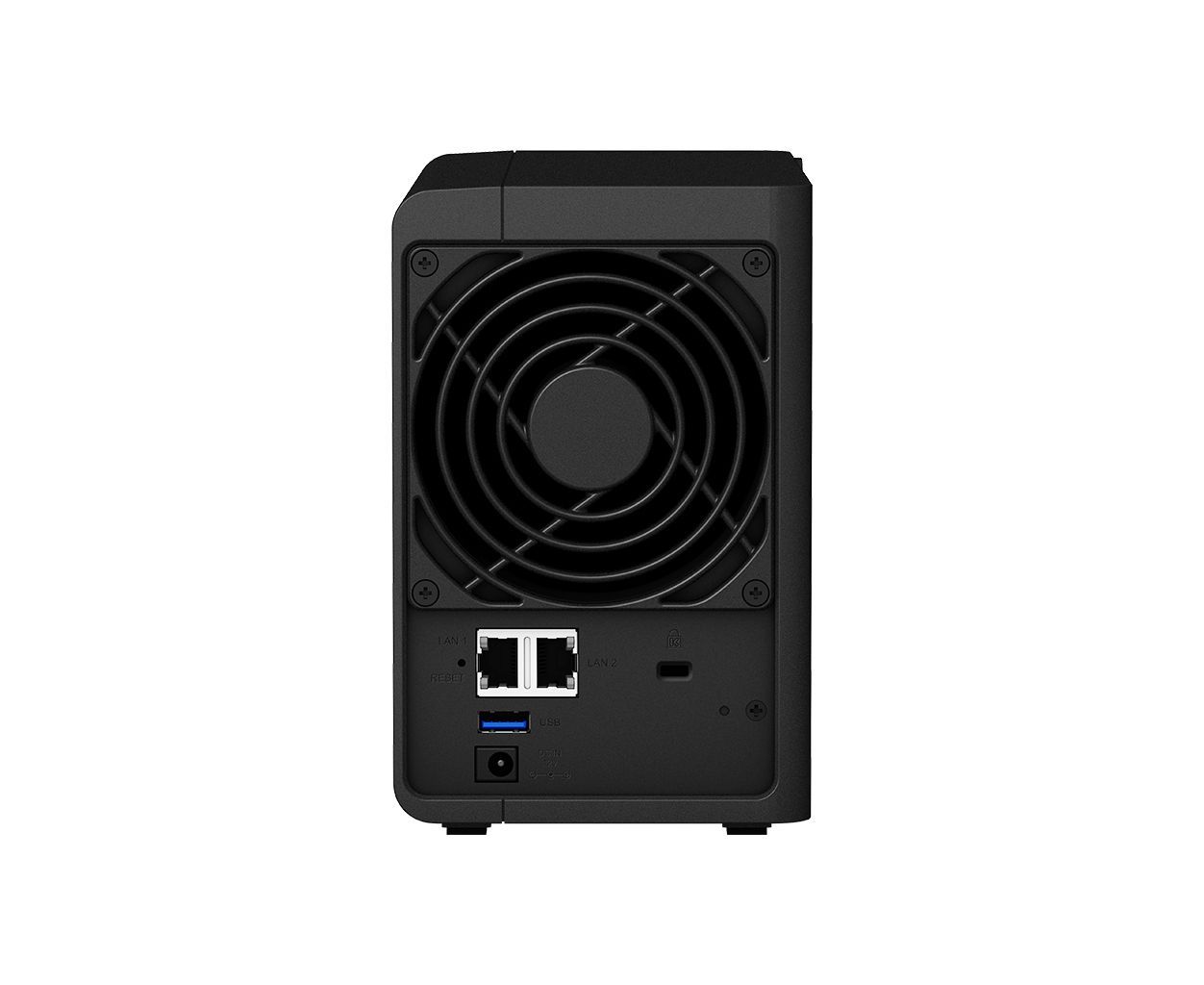

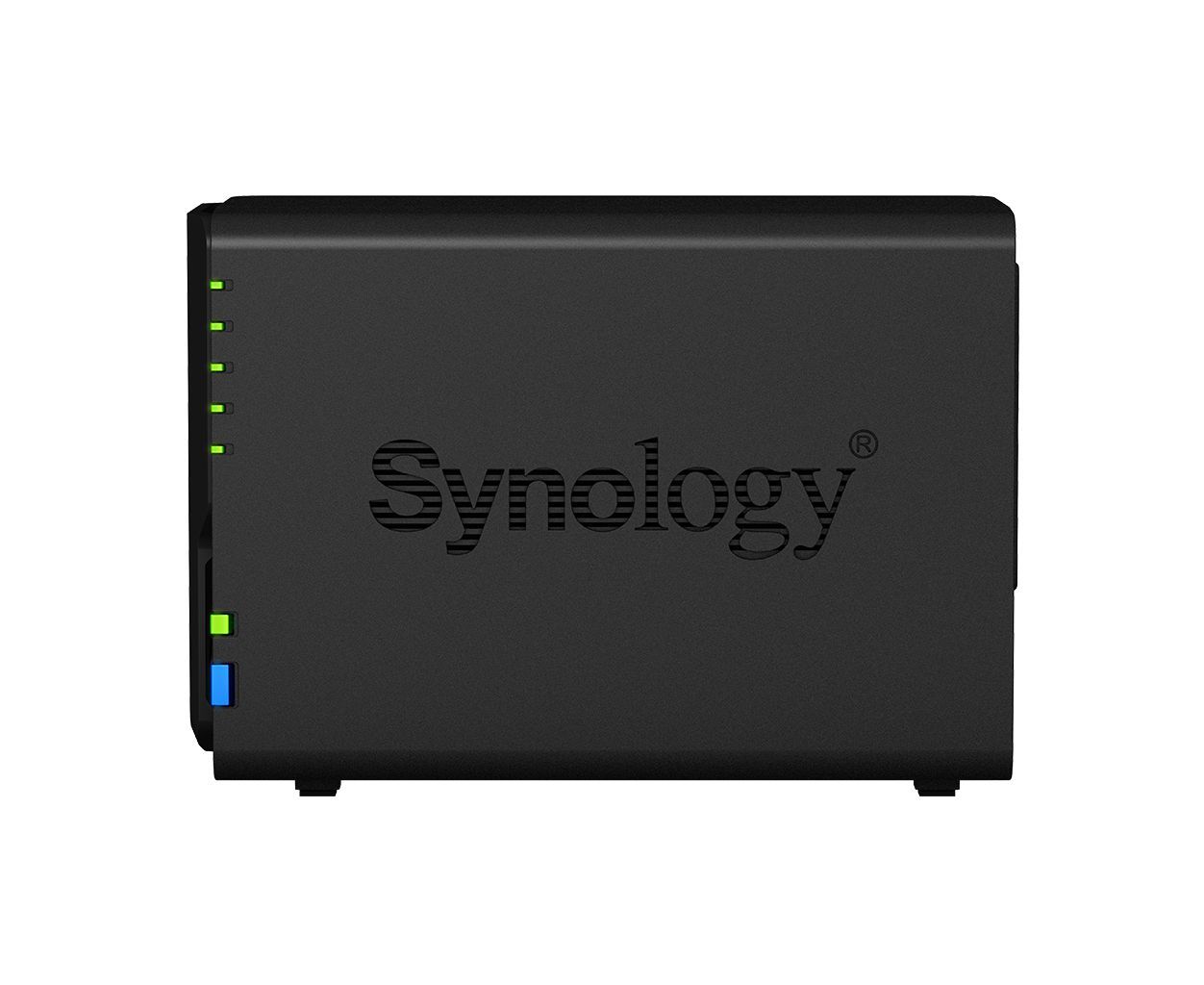

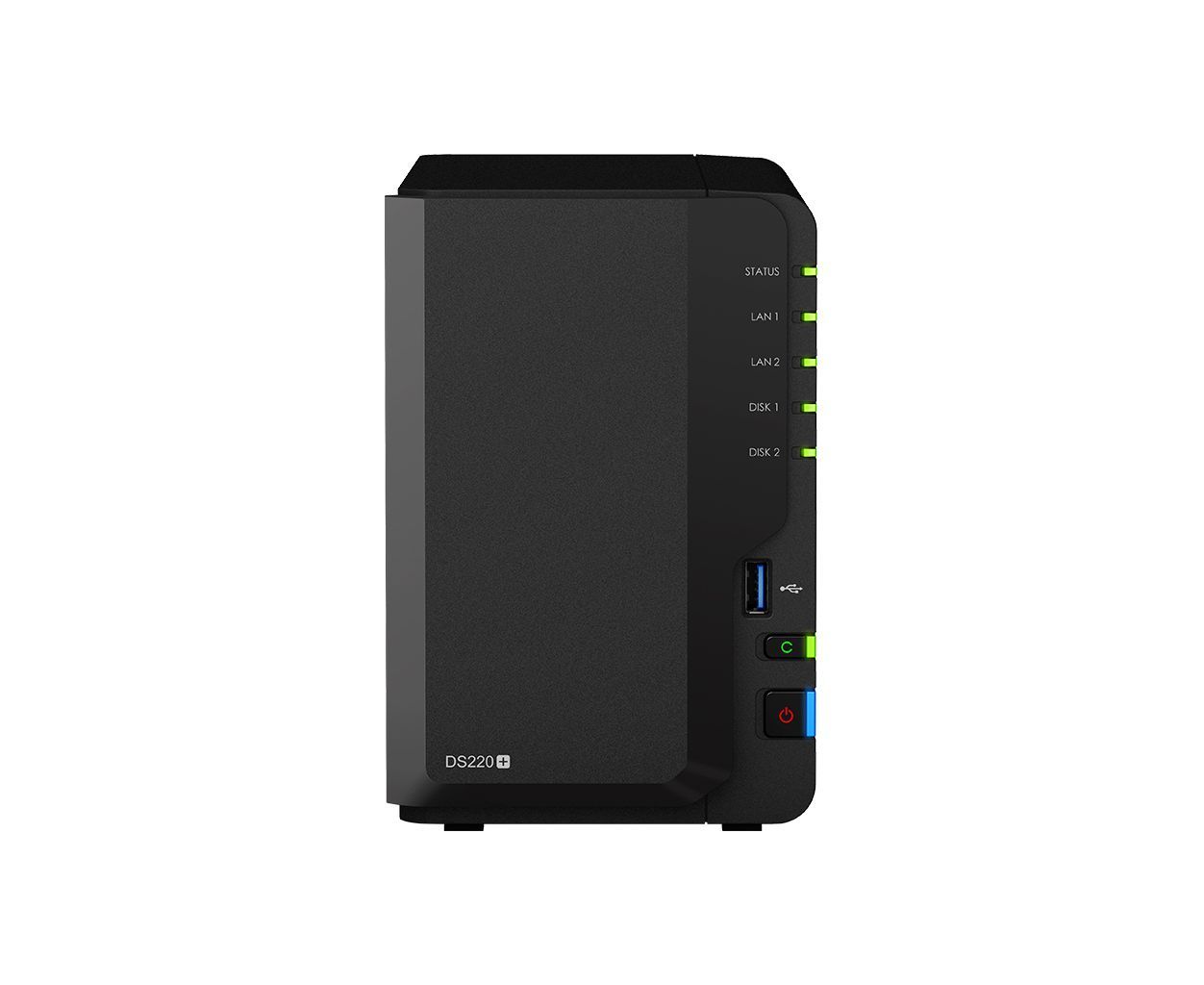

Thiết Bị Lưu Trữ NAS Synology DS220+

Tình trạng: Liên hệ
Mã sản phẩm: Đang cập nhật
Thương hiệu: Synology
Dòng sản phẩm: HDD
  • Chia sẻ trên Facebook
  • Chia sẻ trên Twitter
  • Chia sẻ trên Pinterest
  • Chia sẻ trên Linkedin
  • Thêm vào so sánh
  • Thêm vào yêu thích


Processor modelIntel Celeron J4025
 Processor architecture64-bit
 Processor clock2-core 2.0 (base frequency) / 2.9 (burst frequency) GHz
 Hardware encryption engine (AES-NI)


System memory2 GB DDR4 non-ECC
 Total number of memory slots1
 Memory can be expanded to6 GB (2 GB + 4 GB)
  • Please purchase original Synology memory modules for best compatibility and reliability. If you do not use Synology memory modules when expanding memory capacity, Synology will not be able to provide full product warranty or technical support.
  • Synology reserves the right to replace memory components of the same or higher frequency depending on the availability of the supplier's products. Its compatibility and stability have passed the same rigorous testing and inspection, so please use it with confidence.

Storage device

Number of disk slots2
 Compatible disk types* (see all supported disks)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
 Maximum internal net total storage capacity32 TB (16 TB drive x 2) (Capacity may vary by RAID types)
 Maximum single storage space capacity*108 TB
 Disk hot swap support
  • Compatible disk type refers to the type of hard drive that is confirmed to be compatible with the product after the actual measurement, and the maximum speed of the non-hard drive slot is limited.
  • The maximum single storage space does not directly equal the maximum net total storage capacity. (See more content)
  • The internal storage space can be expanded, but the expanded single storage space cannot exceed 108 TB.

External port

RJ-45 1GbE network port2 (Support Link Aggregation / Failover)
 USB 3.0 port2
 USB / SD Copy

File system

Internal disk
  • Btrfs
  • EXT4
 External disk
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
 RemarksexFAT Access must be purchased separately from the package center.


Size (Height X Width X Depth)165 mm x 108 mm x 232.2 mm
 weight1.30 kg

other projects

System fan92 mm x 92 mm x 1 pcs
 Fan mode
  • Full speed mode
  • Low temperature mode
  • Silent mode
 Front panel LED indicator can adjust brightness
 Automatic power supply recovery
 Noise value*19.3 dB(A)
 Timer switch
 Wake on LAN
 Power supply/transformer60 W
 AC input voltage100 V to 240 V AC
 Current frequency50/60 Hz, single frequency
 Power consumption*14.69 W (Access)
4.41 W (HDD Hibernation)
 British Thermal Unit50.12 BTU/hr (Access)
15.05 BTU/hr (HDD Hibernation)
  • The power consumption test data is obtained by testing the Western Digital 1TB WD10EFRX hard drive.
  • Noise test environment: Seagate 2TB ST2000VN000 hard drive in standby mode, with two GRAS Type 40AE microphones installed at a distance of 1 meter in front and back of the Synology NAS; background noise value: 16.49-17.51 ​​dB(A); temperature: Celsius 24.25-25.75 degrees; humidity: 58.2-61.8%.


Operating temperature0°C to 40°C (32°F to 104°F)
 Storage temperature-20°C to 60°C (-5°F to 140°F)
 Relative humidity5% to 95% RH

Certification body

  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI


2 years
 RemarksThe warranty period begins on the purchase date indicated on the purchase receipt. (See more content)


RoHS Compliant

Package contents

  • Host X 1
  • Accessory Pack X 1
  • Transformer X 1
  • Power cord X 1
  • RJ-45 network cable X 2
  • Quick Installation Guide X 1

Optional accessories

  • D4NESO-2666-4G DDR4 non-ECC SO-DIMM*
  • 2.5" SATA SSD: SAT5200
  • VS360HD
  • VS960HD
  • Monitoring device authorization
 RemarksThe memory module will operate at the maximum frequency set by the CPU manufacturer.
