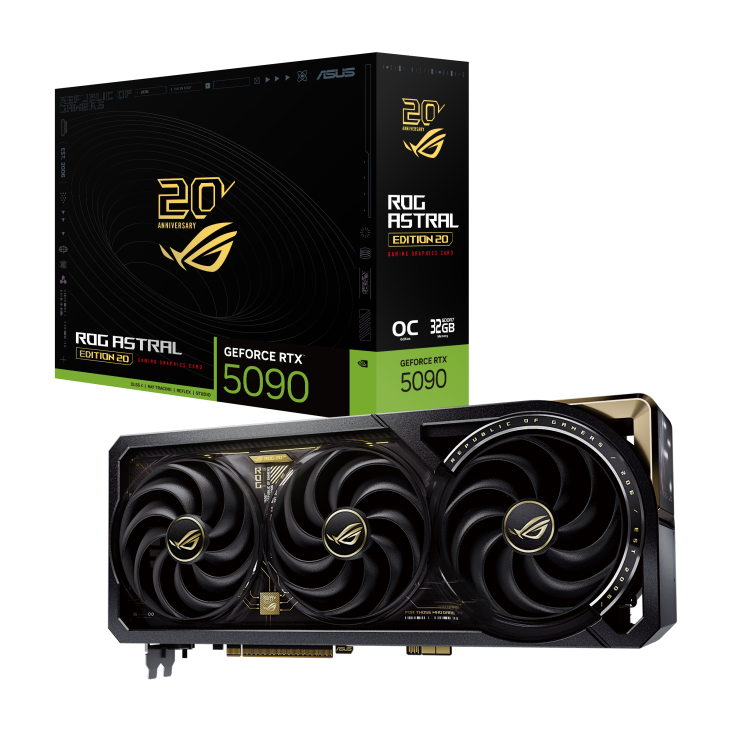

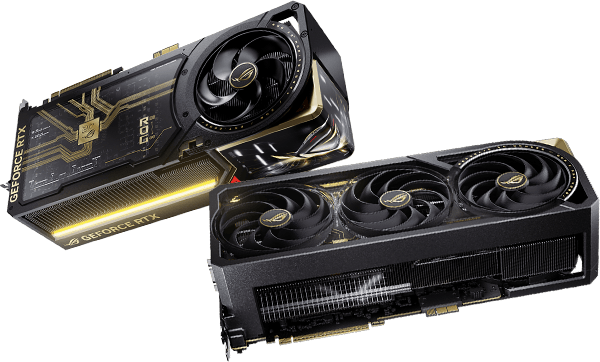

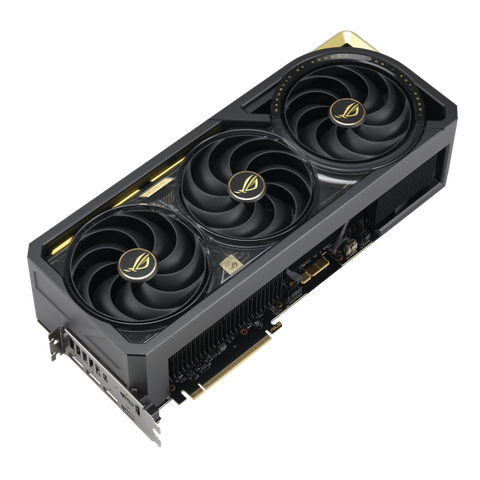

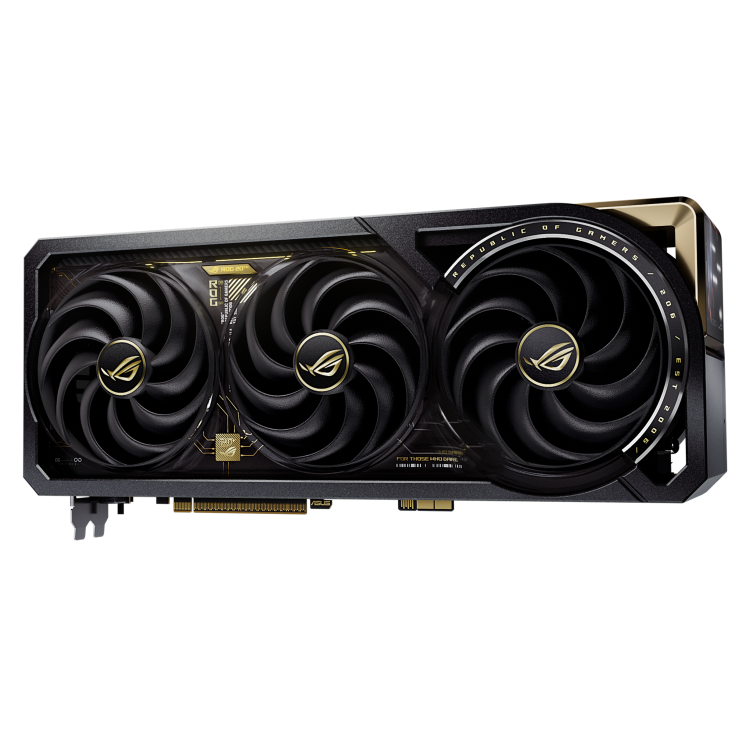

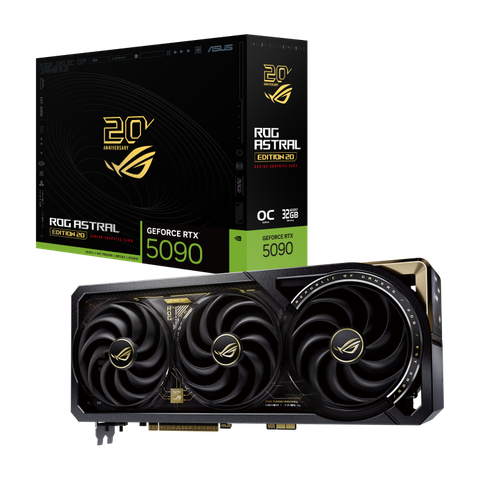

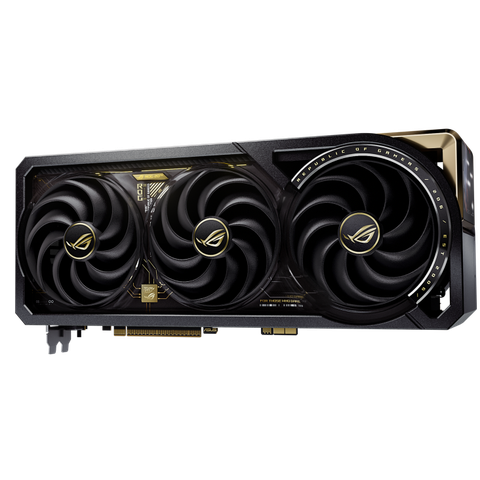

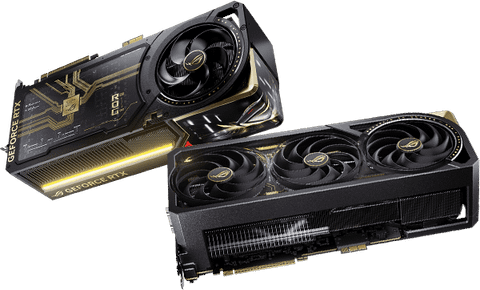

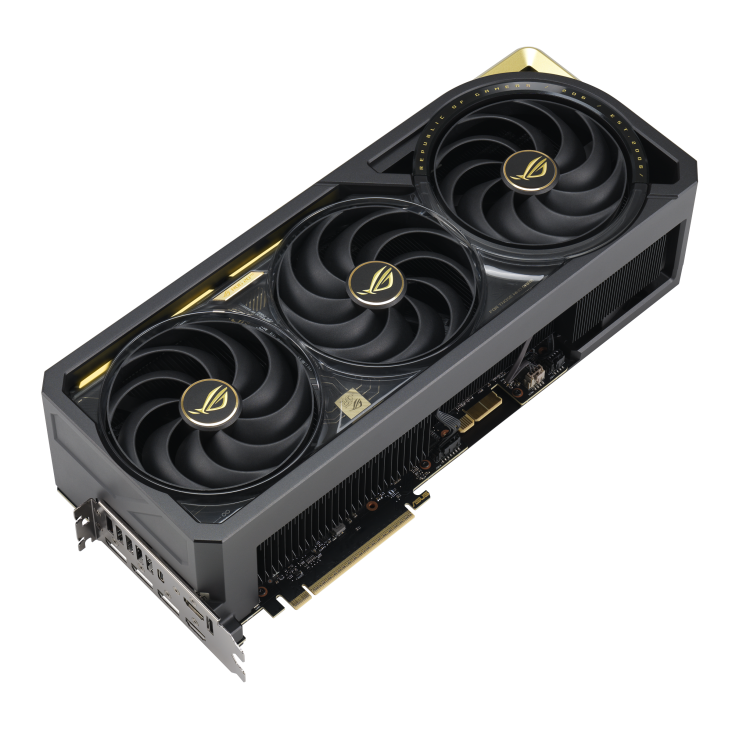

VGA ROG Astral GeForce RTX 5090 Edition 20

Graphic Engine: NVIDIA^® GeForce RTX™ 5090

AI Performance: 3352 TOPs

Bus Standard: PCI Express 5.0

OpenGL: OpenGL^®4.6

Video Memory: 32GB GDDR7

Engine Clock: OC mode: 2760 MHz
Default mode: 2730 MHz(Boost clock)

CUDA Core: 21760

Memory Speed: 28 Gbps

Memory Interface: 512-bit

Resolution: Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support: 4

NVlink/ Crossfire Support: No

Accessories

1 x Detachable AMOLED Display

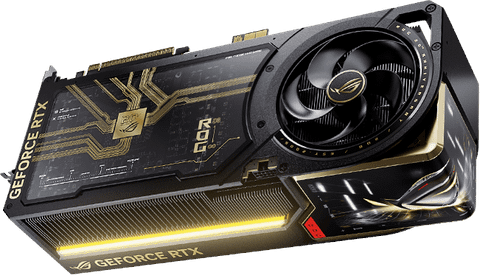

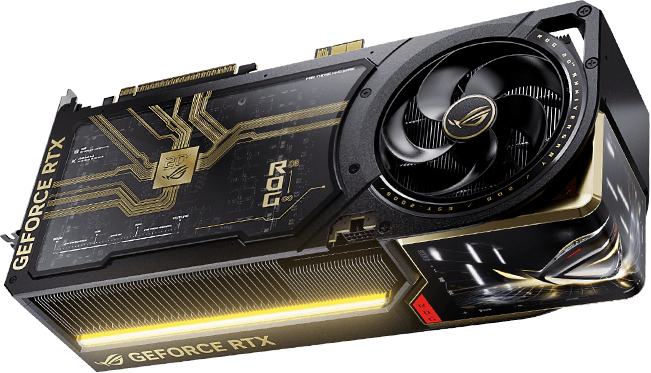

1 x Detachable Glass Backplate
1 x Detachable GC-HPWR Adapter
1 x ROG Edition 20 Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x ROG Edition 20 Thank You Card
1 x ROG Edition 20 Sticker
1 x ROG Edition 20 Collective Coin
1 x Adapter Cable (1 to 4)
1 x USB Adapter Cable (Type-A to Type-C)
1 x Speedsetup Manual

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

361 x 139.3 x 93.9 mm
14.21 x 5.48 x 3.7 inches

Recommended PSU

1200W+

Power Connectors: 1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger

Slot: 4.7 slot

AURA SYNC: ARGB

Hidden-connector (BTF): With Graphics card high-power gold finger

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
