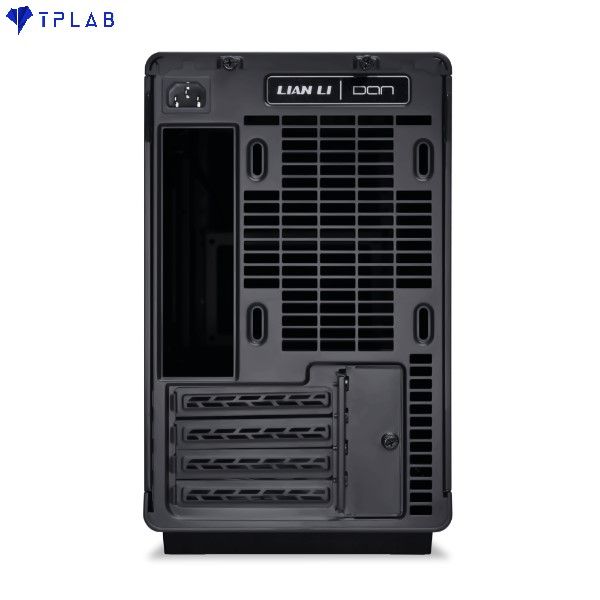

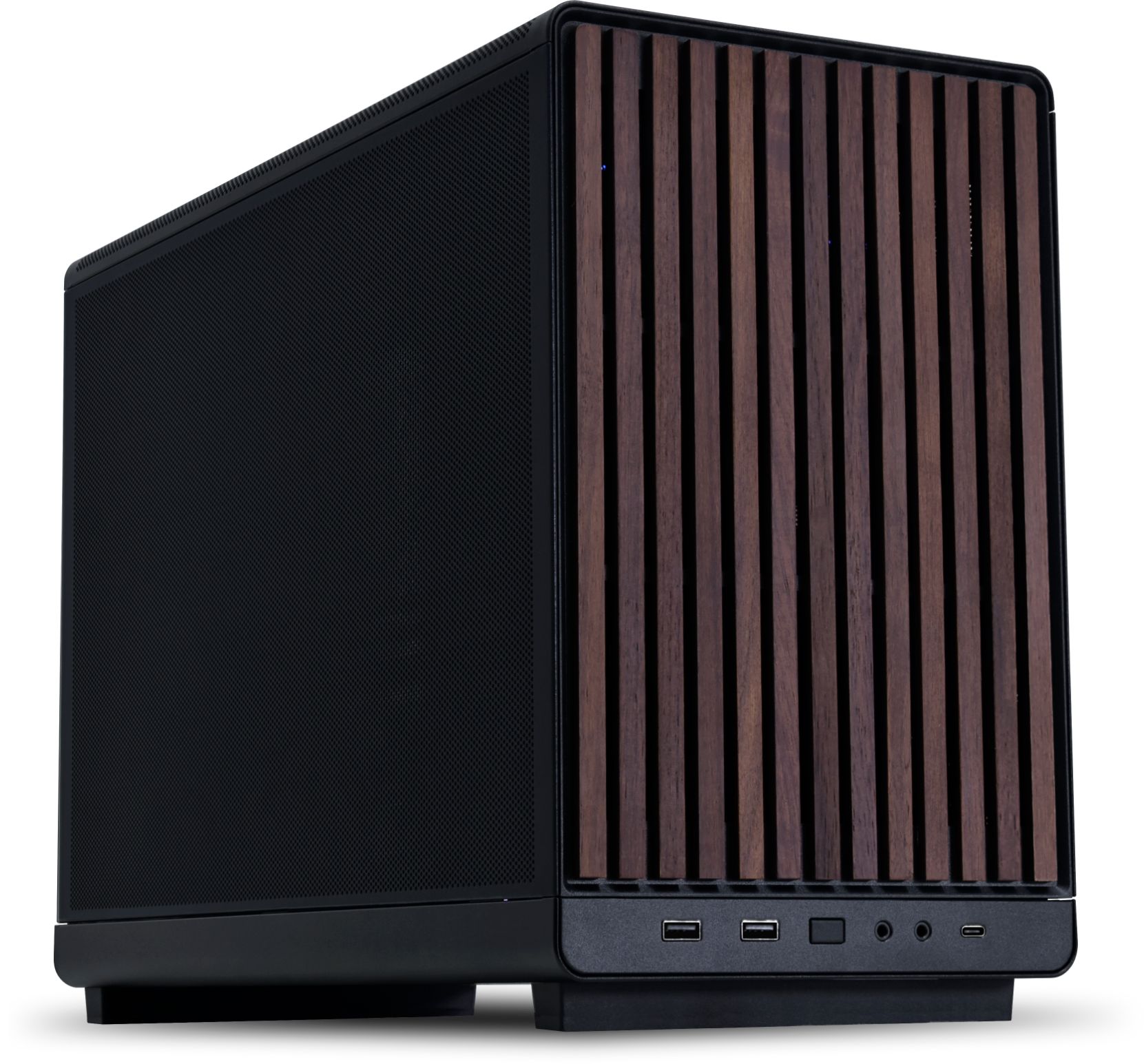

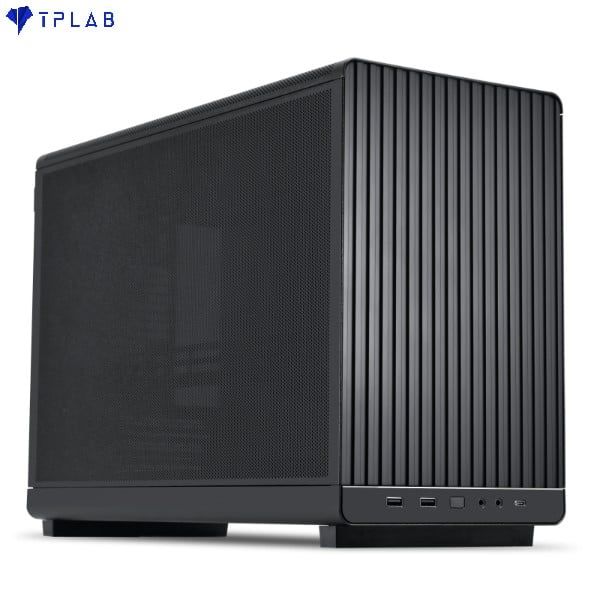

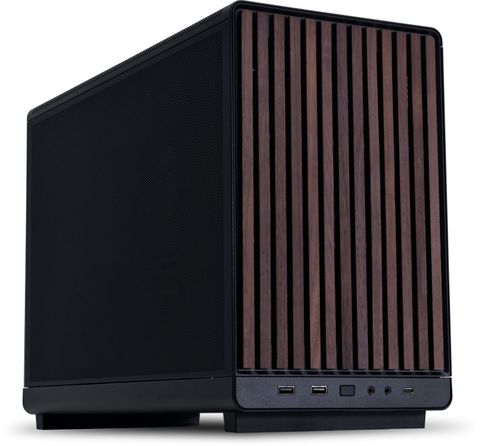

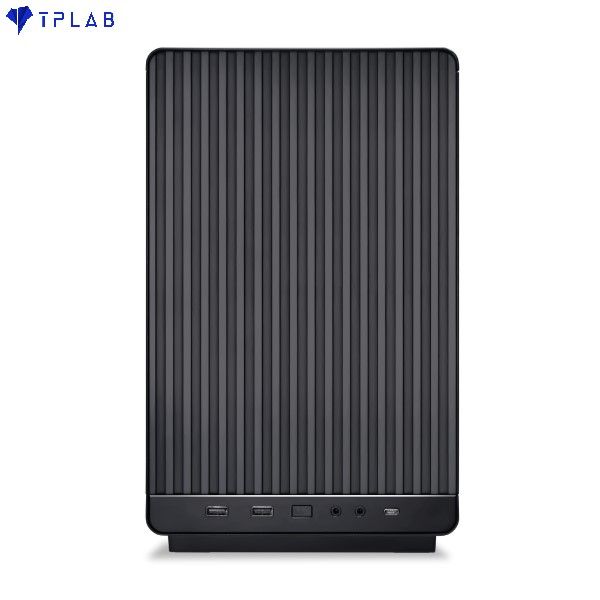

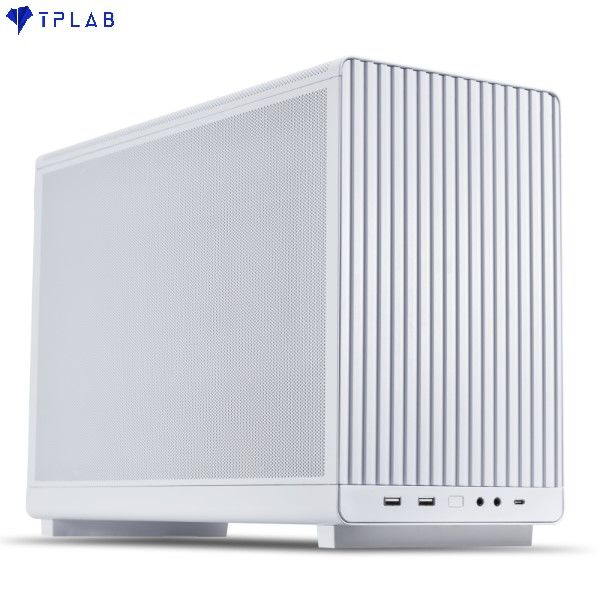

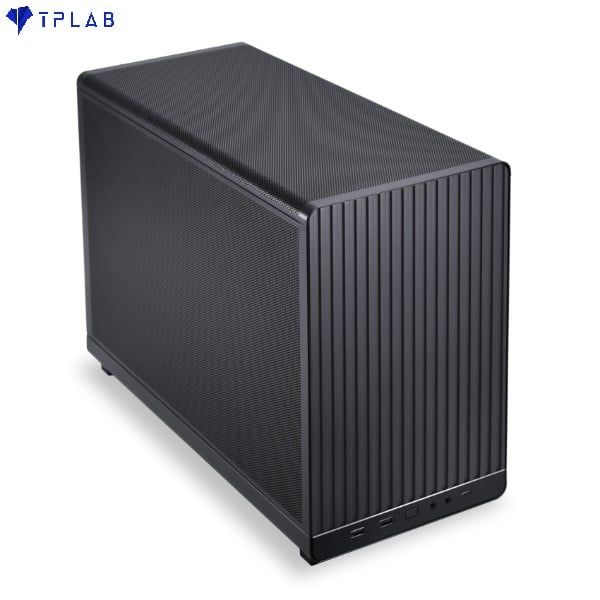

VỎ CASE LIAN LI A3 (MATX/MID TOWER )
Tình trạng: Mới 100% - Fullbox
Bảo hành : 12 Tháng
ĐẶC ĐIỂM NỔI BẬT
- Minimalistic sleek design 26.3L micro form factor chassis
- Side and top panels are designed with steel mesh
- Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
- Supports up to 360 radiator and 10 x 120mm fans
- Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
- In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.
Minimalist Design
Enhanced Modularity
360mm AIO Layout
For M-ATX / Mini ITX MB
415mm GPU Compatibility
Flexible SFX/ ATX PSU
COMPACT DESIGN,MASSIVE POTENTIAL
Dive into the realm of compactness with the A3-mATX,
which unlocks the potential of a small form factor PC case.
WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.
RECOMMEND SET UPS
EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.
SPECIFICATIONS
MODEL NAME | A3-mATX | |
---|---|---|
MODEL NO. | A3-mATX BLACK | A3-mATX WHITE |
COLOR | Black | White |
CASE TYPE | MFF (Micro Form Factor) | |
DIMENSION | (D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet) | |
CAPACITY | 26.3L | |
MATERIAL | Steel | |
MOTHERBOARD SUPPORT | M-ATX/ITX | |
PSU SUPPORT | ATX/SFX/SFX-L (Max 220mm) | |
FAN SUPPORT | Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm | |
RADIATOR SUPPORT | Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom) | |
DRIVE SUPPORT | Tray: 2 × 2.5” SSD Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD | |
GPU LENGTH CLEARANCE | Max 415mm | |
CPU HEIGHT CLEARANCE | Max 165mm | |
EXPANSION SLOTS | 4 | |
I/O PORTS | 1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio | |
DUST FILTER | 1 x Bottom | |
WARRANTY | 1 year |
